Radio specifications of the FNet Coordinator
GPRS-Modem
Protocol
Modulation
Frequency Band
Transmitted power

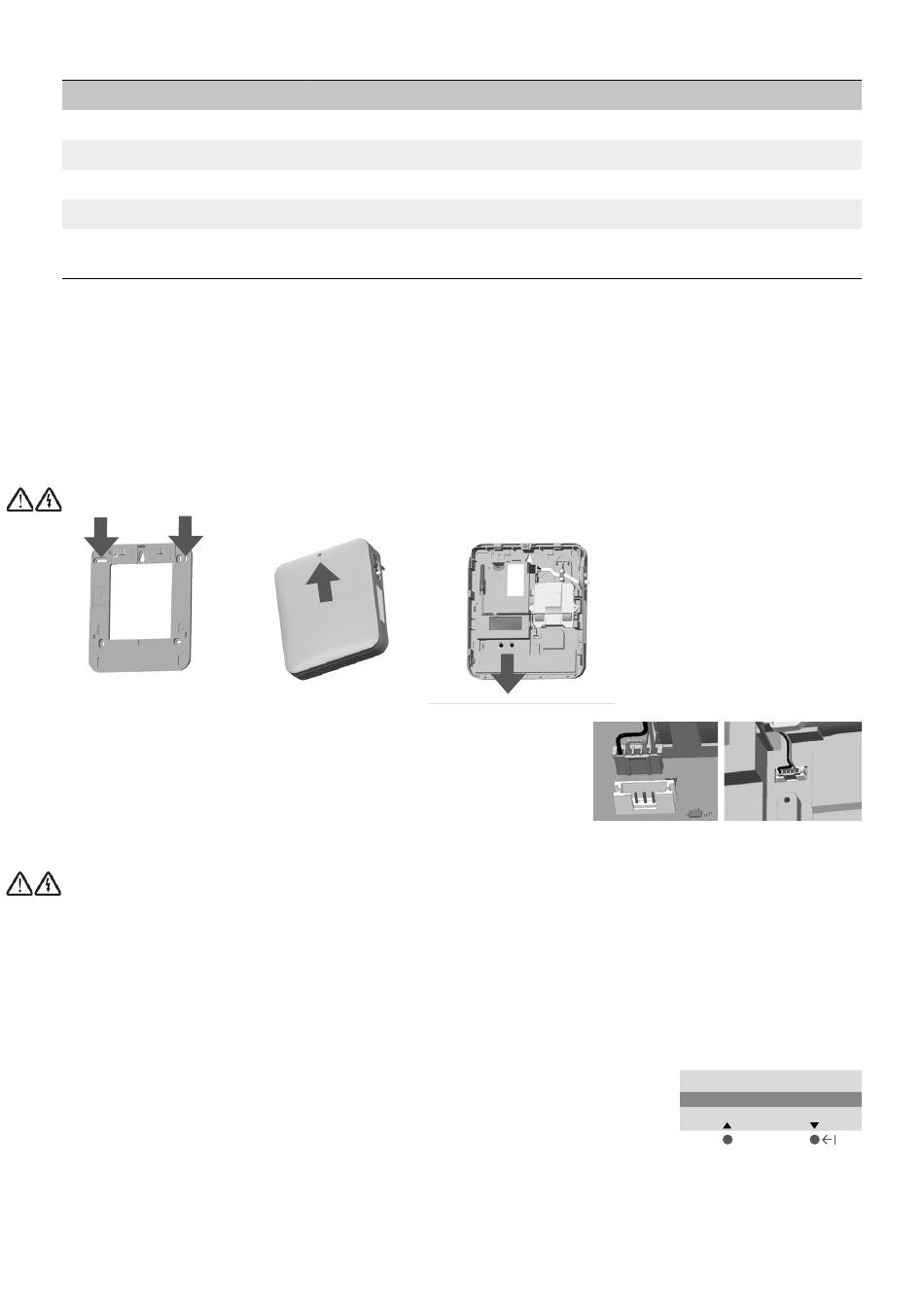

MOUNTING OF FNET COORDINATOR ON THE WALL
For installing the EquaScan FNet Coordinator on the wall, please use the wall bracket respecting the TOP side and use the
delivered screws and plastic fixings.
Please respect the minimum distance of the wall bracket of 20 mm to the ceiling and any perpendicular wall.
For fixing the FNet coordinator Device on the wall bracket please open the front cover by sliding it to the top. After
alignment of the noses of wall bracket and Coordinator holes slide the device down as indicated in Pic A.
Install mainspower only after succesful wallmounting!
BATTERY CONNECTION
Please insert the battery connector as shown in the picture B. The connector
only fits in one position, in order to guarantee its installation with the correct
polarity. For this reason, no excessive force may be used when inserting the
connector.
MAINS POWERED
The socket outlet shall be installed near the coordinator and shall be easily accessible.
Due to safety requirements it is prohibited to install or replace the mains-cable. Contact your local Itron represantative for
support.
PUSH BUTTON FUNCTIONS
By default the display of the FNet Coordinator is OFF. An action on any push button
switches the display ON. The 2 push buttons allow the navigation in the following way:
• Up/Down:
Short pressing allows to navigate up and down inside the list of
the menu list.
• ESC/Enter:
Long pressing allows to go back to the previous menu or to enter to the
next menu.
Quad Band for 3G/2G functions (optional)
Itron proprietary protocol
GFSK-scheme (Gaussian Frequency Shift Keying)
433/868 MHz Band (between Coordinator and Router Devices)
433 MHz Transmitter power max 10mW
868 MHz Transmitter power max 25mW
Pic A
Pic B
P a i r i n g R o u t e r/s
S c a n R o u t e r l i n k
I n s t a l l M I U
ESC
Up
Down
ESC
ENTER
