QUICK INSTALLATION INSTRUCTIONS
Opening of the product (when mains powered), including the cover, only through qualified personal.
The open product must not be left unattended. The product must be closed after any action (mounting,
installation, maintenance).
It is recommended to run the following set-up instructions step by step inside the building where the EquaScan FNet system
will be installed.
Step 0:
Open the cover of the FNet Coordinator as explained in Pic A
Step 1 Option:
Insert the SIM Card inside the slot if option is not delivered and installed by manufactures.
Caution:
The SIM Card may be blocked if PIN code of FNet Coordinator does not correspond to the SIM Card PIN code. The default
value inside the FNet Coordinator is usually "0000" (customer variants may. deter). The PIN Code of the SIM card could also
be pre-configured as "deactivated". Please configure the FNet Coordinator with the corresponding SIM Card PIN code (refer
to the EquaScan FNet Maintenance Software Manuals).
Step 2:
Connect the battery as shown in the figure B (optional: connect to 220V).
Step 3:
Activate the LCD by short pressing of any push button
Press "Enter" to start the commissioning process (Start Menu).
Initialize the date and time of the device:
• "Up" and "Down" for changing the values
• "Enter" to move to next field (YYYY to MM to DD ....etc).
Once the commissioning process is finished the product enters automatically
into the Main Menu. Only in this stage: If the battery has been disconnected
(or option: disconnect the mains) the product will be reinitialized back to stor-
age mode and Step 3 must be repeated.
Step 4:
Press "Enter" to start the pairing process of the required Routers with the
Coordinator (Main Menu).
Secondly, at the same time start the pairing process on the FNet Routers. Refer
to the Router technical manual.
By pressing "Enter" you may list the FNet Routers paired to the FNet Coordinator.
When all required FNet Routers are paired, press "ESC" to return to the main
menu.
Step 5:
Fix the FNet Coordinator on its wall bracket (see picture A).

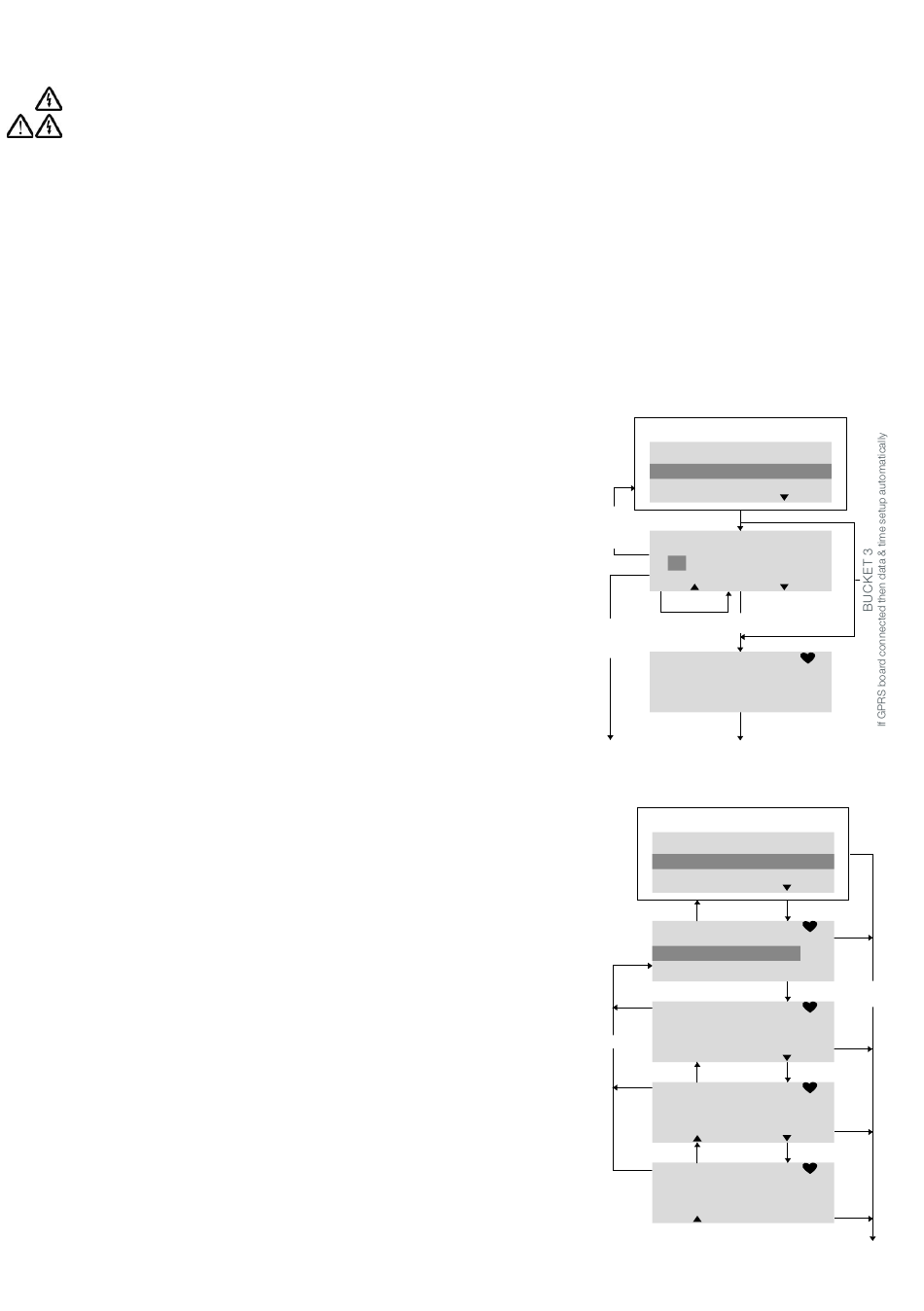

Commissioning
C o m m i s s i o n i n g
C o o r d i n f o r m a t i o n
ESC
ENTER
Only if year
selected
2 016 / 0 2 / 24
Up/Down
Changes the
ENTER
Timeout 2`
values
Display OFF
S e a r c h o t h e r s N e t w o r k
Start Menu Main Menu
When search is finished
Pairing Router/s
P a i r i n g R o u t e r/s
S c a n R o u t e r l i n k
ESC
R o u t e r/s p a i r e d:
R o u t 1610 0 010
R o u t 1610 0 011
ESC
R o u t 1610 0 012
UP
R o u t 1610 0 013
R o u t 1610 0 014
R o u t 1610 0 015
UP
R o u t 1610 0 014
R o u t 1610 0 015
R o u t 1610 0 016
17:3 5:2 0
ENTER
7
Timeout 2`
ENTER
Display OFF
Down
Down
Main Menu
