Mounting / Dismounting, Operating Position

Danger due to live components
Non-compliance results in severe or fatal injuries!
• A minimum distance of 12 mm has to be kept between live parts
The operating position is optional.
• Mount the device on a flat surface.
200128 / 8006603300
2019-06-13·BA00·III·en·09
and further components (at 690 V AC).
Mounting and Installation
DANGER

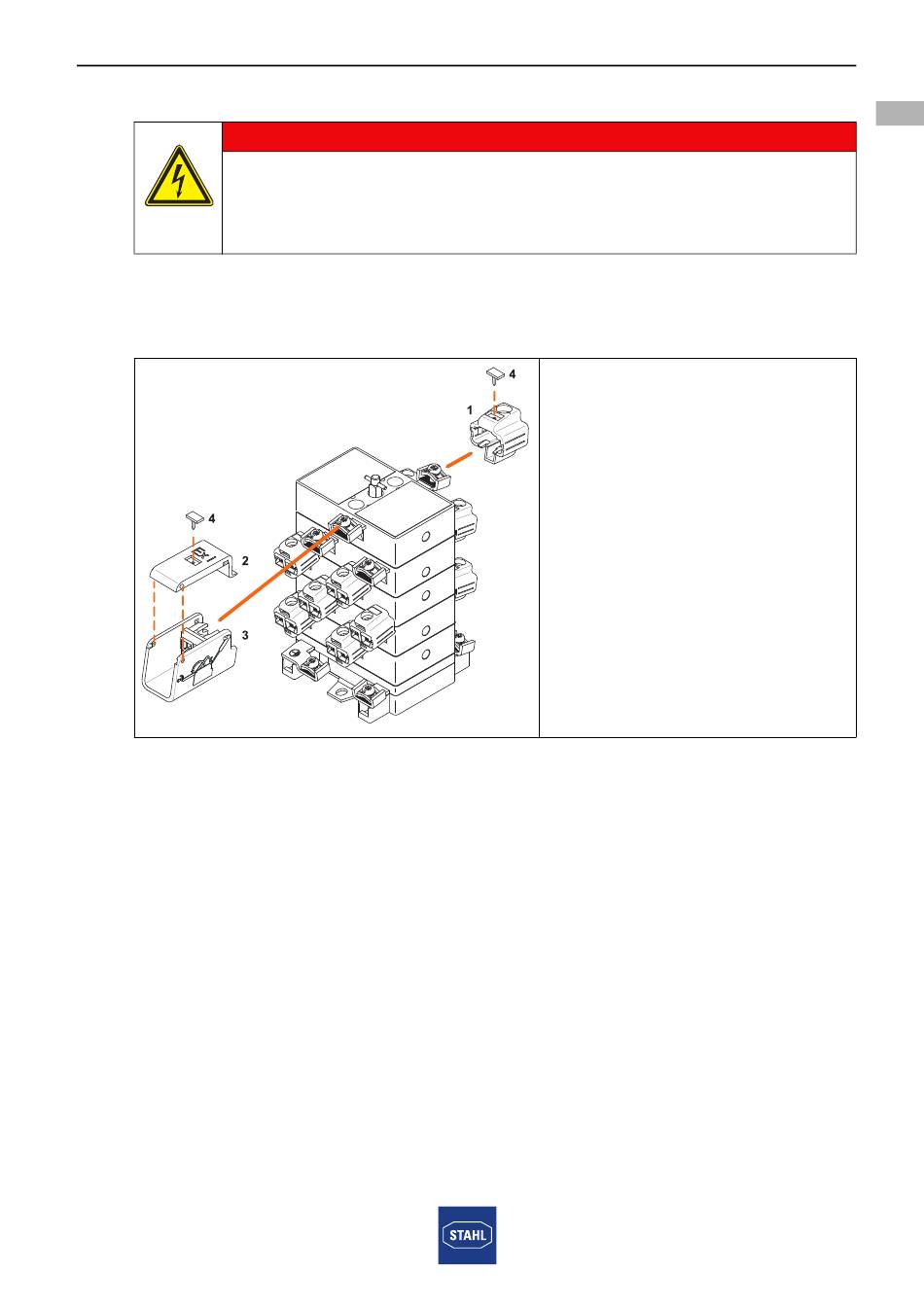

IP20 cover:
• Snap the IP20 cover (1) onto the
contact. Insert the designation
plate (4) into the groove of the
IP20 cover (1).
Ex i cover:
• Snap the Ex i cover (3) onto the
contact. Engage the Ex i lid (2)
in the Ex i cover (3). Insert the
designation plate (4) into the
groove of the Ex i lid (2).
