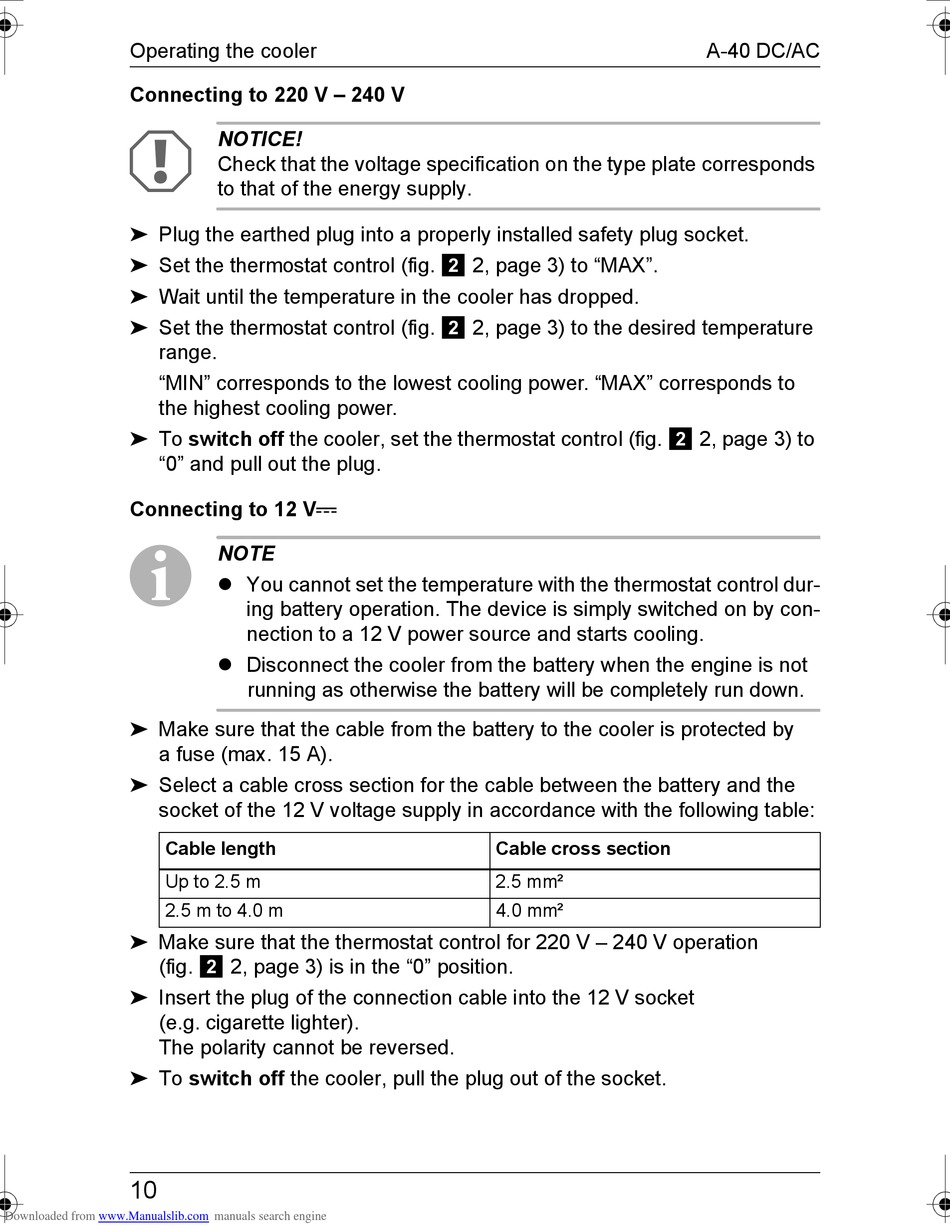

Operating the cooler
Connecting to 220 V – 240 V
A
➤ Plug the earthed plug into a properly installed safety plug socket.
➤ Set the thermostat control (fig. 2 2, page 3) to "MAX".
➤ Wait until the temperature in the cooler has dropped.
➤ Set the thermostat control (fig. 2 2, page 3) to the desired temperature
range.
"MIN" corresponds to the lowest cooling power. "MAX" corresponds to
the highest cooling power.
➤ To switch off the cooler, set the thermostat control (fig. 2 2, page 3) to
"0" and pull out the plug.
Connecting to 12 Vg
I
➤ Make sure that the cable from the battery to the cooler is protected by
a fuse (max. 15 A).
➤ Select a cable cross section for the cable between the battery and the
socket of the 12 V voltage supply in accordance with the following table:
Cable length
Up to 2.5 m
2.5 m to 4.0 m
➤ Make sure that the thermostat control for 220 V – 240 V operation
(fig. 2 2, page 3) is in the "0" position.
➤ Insert the plug of the connection cable into the 12 V socket
(e.g. cigarette lighter).
The polarity cannot be reversed.
➤ To switch off the cooler, pull the plug out of the socket.
10
Downloaded from www.Manualslib.com
NOTICE!
Check that the voltage specification on the type plate corresponds
to that of the energy supply.
NOTE
You cannot set the temperature with the thermostat control dur-
ing battery operation. The device is simply switched on by con-
nection to a 12 V power source and starts cooling.
Disconnect the cooler from the battery when the engine is not
running as otherwise the battery will be completely run down.
manuals search engine
Cable cross section
2.5 mm²
4.0 mm²
A-40 DC/AC
