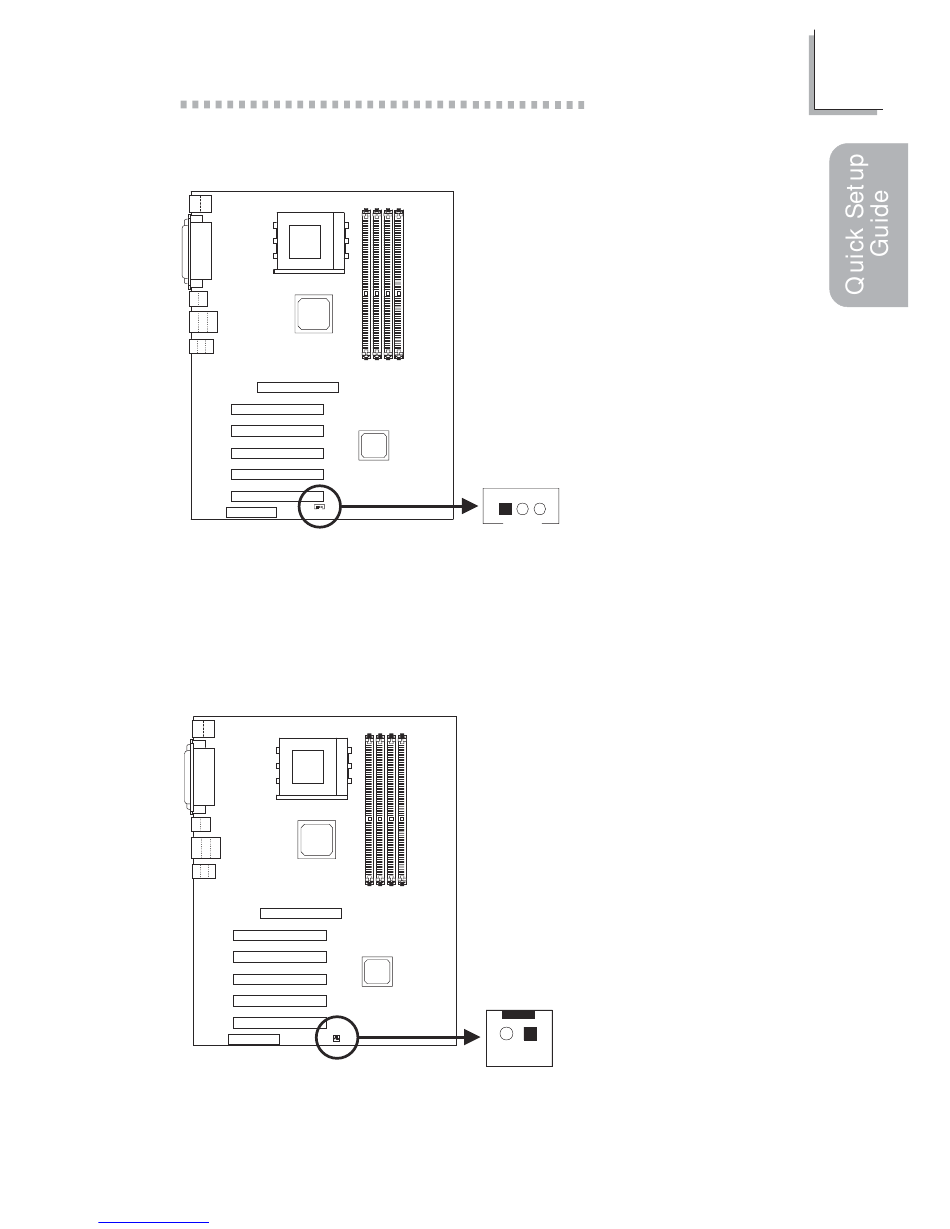

1.4.16 Wake-On-LAN Connector
The 5VSB power source of your power supply must support ≥720mA.
1.4.17 Wake-On-Ring Connector
Downloaded from www.Manualslib.com manuals search engine
Quick Setup Guide
1 +5VSB
2 Ground
3 WOL
1 2 3
Wake-On-LAN
(J21)
1 Ground
2 RI#
If you are using a modem
add-in card, the 5VSB power
source of your power supply
must support a minimum of
≥720mA.
2 1
Wake-On-Ring
(J22)
