Quick Setup Guide

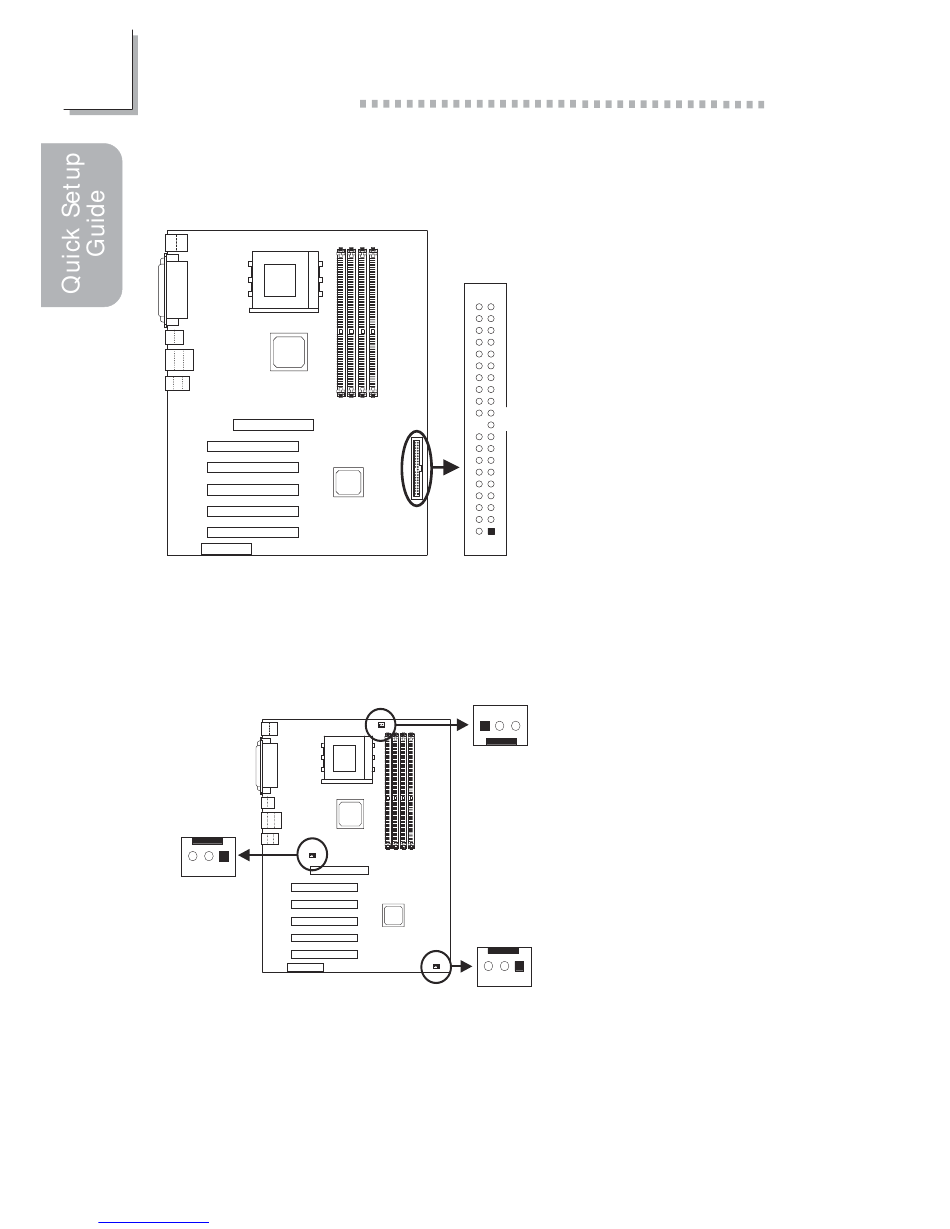

1.4.14 RAID IDE Disk Drive Connector (AD77 INFINITY
1.4.15 Fan Connectors
Second chassis
fan (J19)
20
Downloaded from www.Manualslib.com
only)
3 2 1
manuals search engine
40 39
1
2
RAID IDE
(J31)
1 2 3
CPU Fan
1 On
2 +12V
CPU fan
3 Sense
(J24)
Chassis Fan
1 On/Off
2 +12V
3 Sense
Second Chassis Fan
1 Ground
3 2 1
2 +12V
3 N. C.
Chassis fan
(J29)
