1
Quick Setup Guide

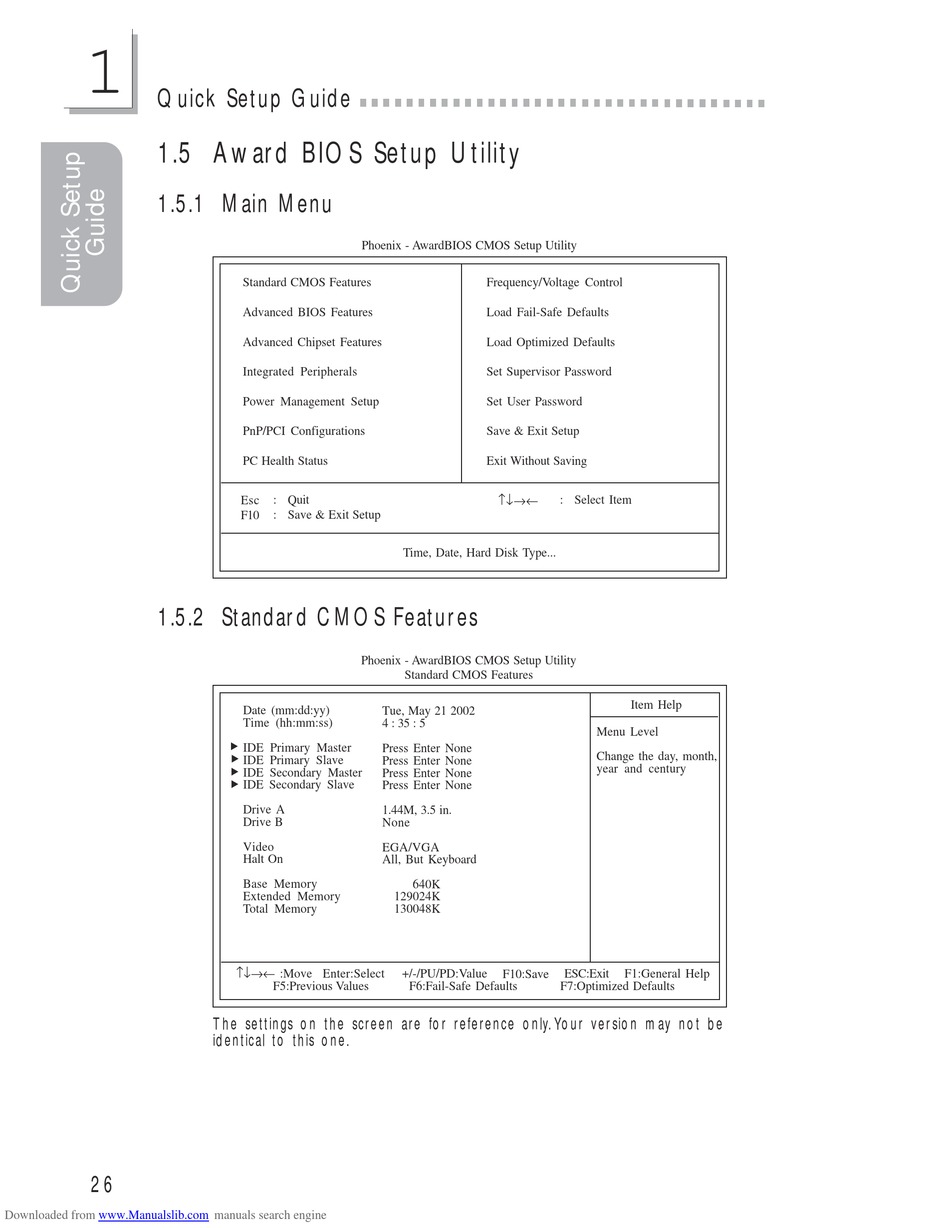

1.5 Award BIOS Setup Utility

1.5.1 Main Menu

1.5.2 Standard CMOS Features

26
Downloaded from www.Manualslib.com
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
: Quit
Esc
: Save & Exit Setup
F10
Phoenix - AwardBIOS CMOS Setup Utility
Date (mm:dd:yy)
Tue, May 21 2002
Time (hh:mm:ss)
4 : 35 : 5
!
IDE Primary Master
Press Enter None
!
IDE Primary Slave Press Enter None
!
IDE Secondary Master Press Enter None
!
IDE Secondary Slave
Press Enter None
Drive A
1.44M, 3.5 in.
Drive B None
Video
EGA/VGA
Halt On All, But Keyboard
Base Memory
Extended Memory
Total Memory
↑↓→← :Move
Enter:Select
F5:Previous Values
The settings on the screen are for reference only. Your version may not be
identical to this one.
manuals search engine
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
↑↓→←
: Select Item
Time, Date, Hard Disk Type...
Standard CMOS Features
640K
129024K
130048K
+/-/PU/PD:Value ESC:Exit
F10:Save
F6:Fail-Safe Defaults F7:Optimized Defaults
Item Help
Menu Level
Change the day, month,
year and century
F1:General Help
