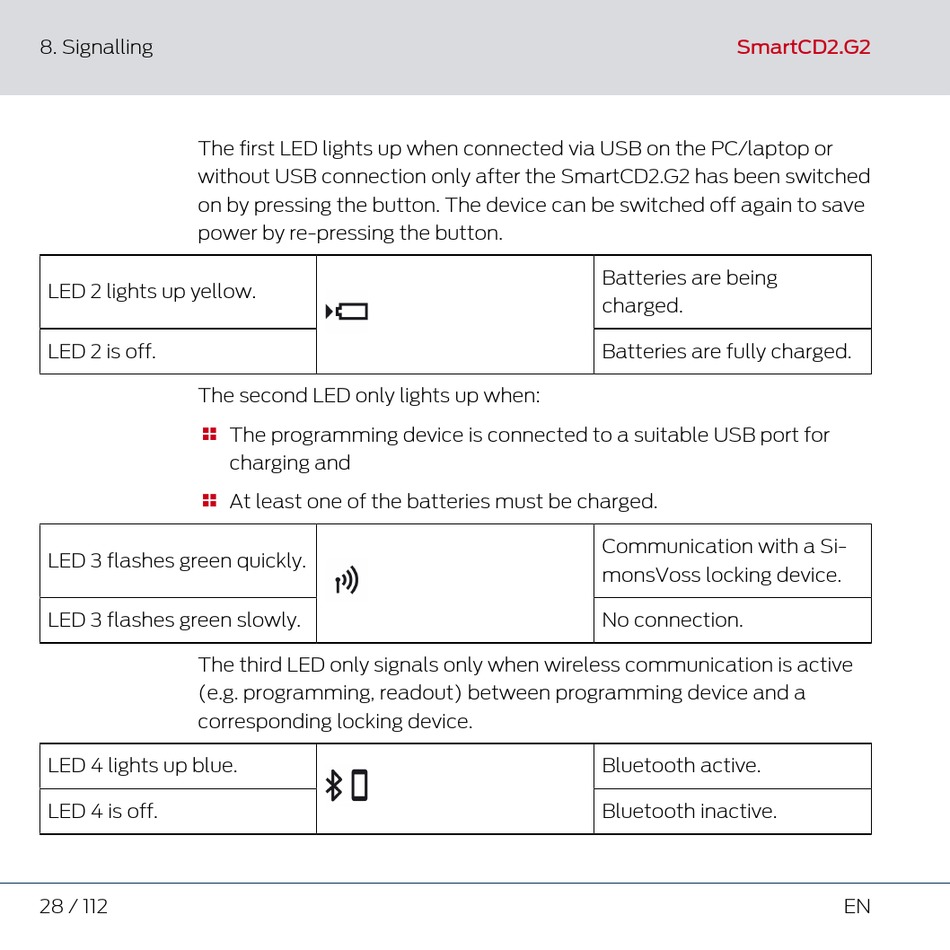

8. Signalling
The first LED lights up when connected via USB on the PC/laptop or
without USB connection only after the SmartCD2.G2 has been switched
on by pressing the button. The device can be switched off again to save
power by re-pressing the button.
LED 2 lights up yellow.
LED 2 is off.
The second LED only lights up when:


LED 3 flashes green quickly.
LED 3 flashes green slowly.
The third LED only signals only when wireless communication is active
(e.g. programming, readout) between programming device and a
corresponding locking device.
LED 4 lights up blue.
LED 4 is off.
28 / 112
The programming device is connected to a suitable USB port for
charging and
At least one of the batteries must be charged.
SmartCD2.G2
Batteries are being
charged.
Batteries are fully charged.
Communication with a Si-
monsVoss locking device.
No connection.
Bluetooth active.
Bluetooth inactive.
