OWNeR's MANuAl

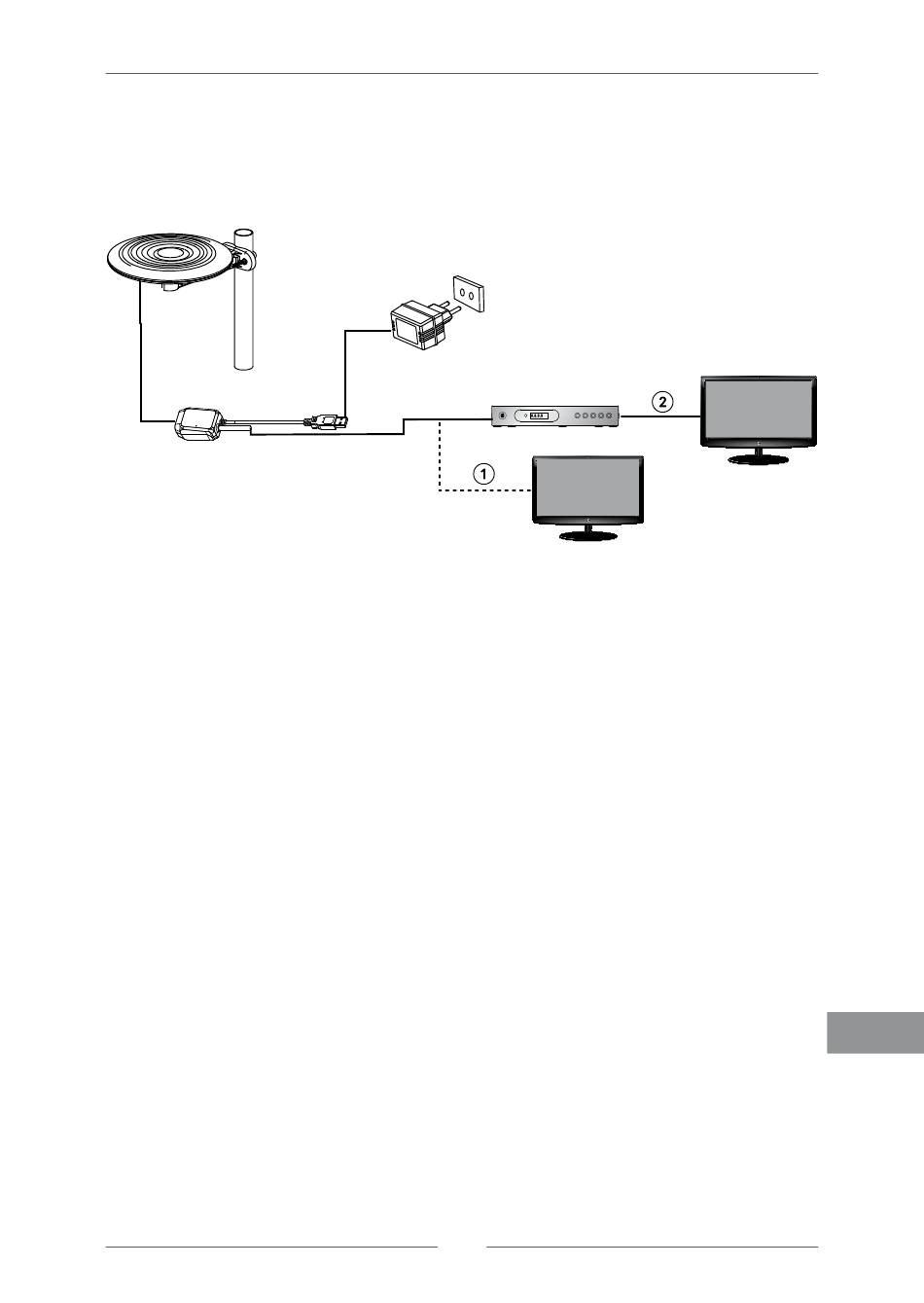

cOnnectiOn
Mounting 1: direct connection to TV
Mounting 2: Connection via dVB-T TV set top box
Note: Once the mounting is done, make sure to position the antenna in an
optimum spot for signal reception, and then screw the holder tight.
For better reception, check:
1. Whether antenna is away from interference sources: do not place
antenna near large electrical appliances, such as air conditioner,
elevator, hair dryer, microwave oven, etc.
2. When using indoor, place it near a window.
3. Mount the antenna as high as possible: the higher the antenna will be
mounted, the signal will be better (lower interference).

tecHnical data

Main parameters
• Frequency range: (VHF) 174-230 MHz, (uHF) 470-790 MHz
• Bands: dVB-T / dVB-T2 / dAB+
• Channels: 5-12; 21-60
• impedance: 75 Ohm
• gain: (VHF) 15 dB, (uHF) 20 dB
• Max.output level: 105 dBuV
• Polarisation: Horizontal
• LTE filter: Yes
