The device

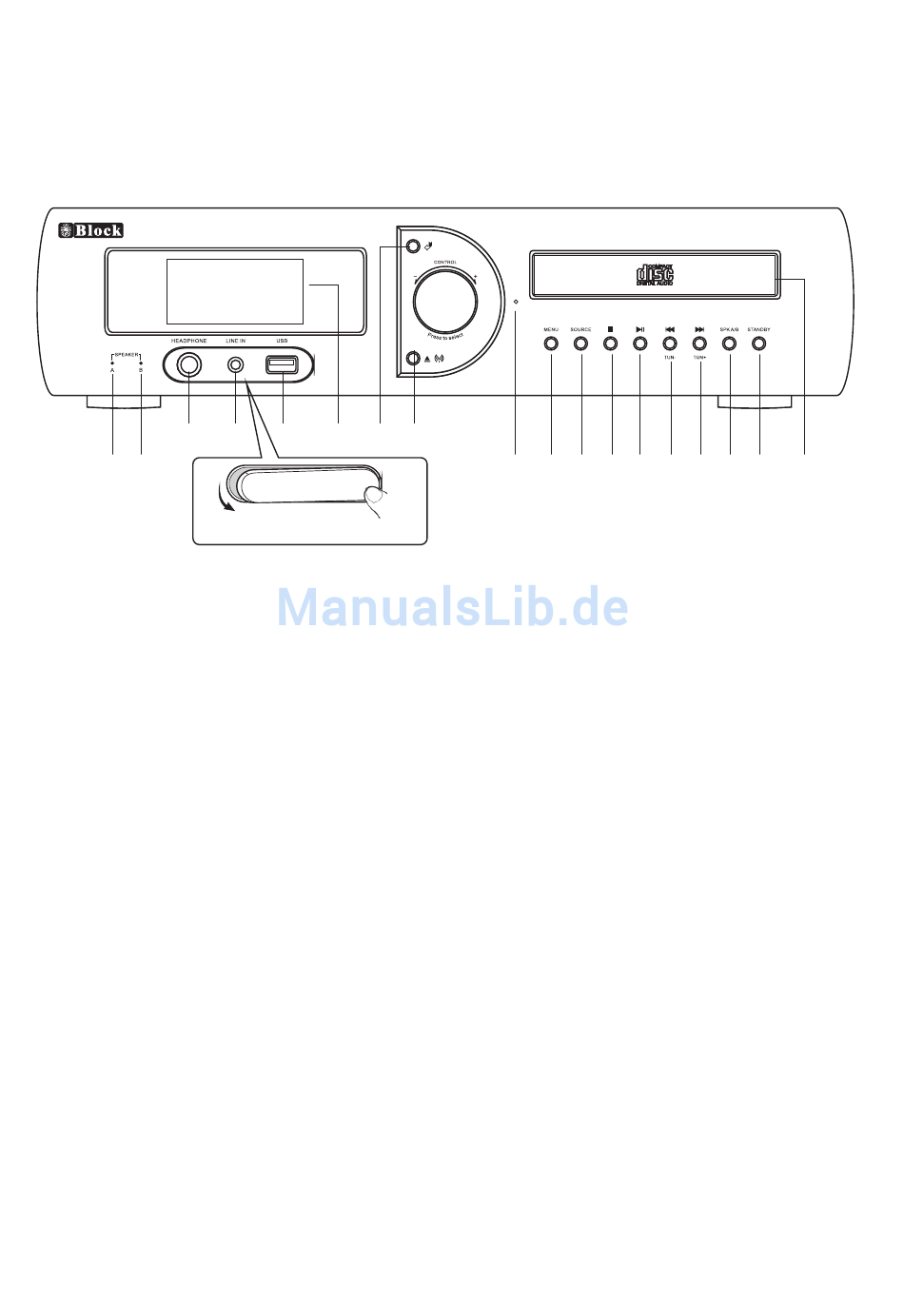

Front panel control

3
1 2
PUSH TO OPEN THIS COVER
1. A SPEAKER OUTPUT INDICATOR LED, WILL TURN ON WHEN A SPEAKER IS SELECTED.
2. B SPEAKER OUTPUT INDICATOR LED, WILL TURN ON WHEN B SPEAKER IS SELECTED.
3. HEADPHONE OUTPUT JACK.
4. 3.5MM JACK FOR THE SOURCE OF LINE IN.
5. USB INPUT PORT.
6. LCD DISPLAY.
7. BACK BUTTON, USE FOR THE MENU OF INTERNET RADIO, PRESS TO GO TO PREVIOUS MENU SCREEN.
8. WHEN PLAY MODE IS CD, PRESS THIS BUTTON TO OPEN/CLOSE THE CD TRAY DOOR.
9. STANDBY INDICATOR LED.
10. MENU BUTTON: MENU KEY FOR INTERNET RADIO/DAB/FM/MEDIA. PRESS TO GO TO MENU SCREEN.
11. SOURCE KEY: PRESS TO SELECT PLAY SOURCE WITHIN INTERNET RADIO/MEDIA/DAB/FM/TV/AUX/DVD/PHONO
/CD/OPTICAL/COAXIAL/LINE IN.
12. STOP KEY FOR CD AND MEDIA PLAYING.
13. PLAY/PAUSE KEY FOR CD AND MEDIAL PLAYING.
14. WHEN PLAY MODE IS TUNER, PRESS TO AUTO SCAN PREVIOUS STATION
WHEN PLAY MODE IS CD OR MEDIA PLAYER, PRESS TO SKIP TO PREVIOUS TRACK.
15. WHEN PLAY MODE IS TUNER , PRESS TO AUTO SCAN NEXT STATION,
WHEN PLAY MODE IS CD OR MEDIA PLAYER ,PRESS TO SKIP TO NEXT TRACK.
16. SPEAKER A/B: PRESS THIS KEY TO SELECT SPEAKER OUTPUT TO A, B, OR A+B.
**PLEASE CONFIRM THAT THE IMPEDANCE OF THE SPEAKER MUST BE AT LEAST 8 OHMS BEFORE YOU
SELECT SPEAKER OUTPUT TO A+B, DO NOT SELECT TO A+B IF THE IMPEDANCE OF THE SPEAKER LESS
THAN 8OHMS!!
17. STANDBY KEY: PRESS TO TURN ON OR TURN OFF THE UNIT
18. CD TRAY DOOR.
4 5 6 7
PUSH
OPEN
Chapter 3
8
9 10 11 12 13 14 15 16 17
The device
3
38
CVR 100
HI FI-CD Receiver
18
