Seite 2

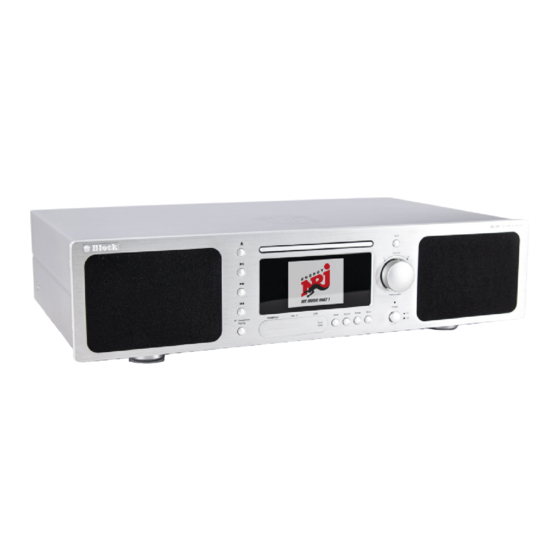

Sehr geehrter Kunde! Danke, dass Sie sich für dieses hochwertige Sie von Zeit zu Zeit unsere Webseite „www. Gerät entschieden haben. Diese Bedienungs- audioblock.com“, um zu prüfen, ob es neu- anleitung soll Ihnen eine Übersicht darüber ere Bedienungsanleitungen zum Download geben, wie Sie Ihr Gerät bedienen können.
INHALTSVERZEICHNIS Sicherheitshinweise ..............................04 Vor der Inbetriebnahme ............................08 Bedienelemente am Gerät ............................09 Die Fernbedienung ..............................10 Anschlüsse am Gerät .............................11 Aufbau des Gerätes ...............................12 Erste Inbetriebnahme und Installation .......................13 Manuelle Installation (WLAN & LAN) ........................14 Der Verstärker ................................15 Das UKW Radio ...............................16 Das DAB+ Radio ..............................
Sicherheitshinweise Achtung: Um die Gefahr eines Stromschlages zu vermeiden, darf an diesem Gerät keine Veränderung vor- genommen werden! Das Öffnen des Gerätes sowie Veränderungen am Gerät dürfen nur durch autorisierte Personen vorgenommen werden. Wichtige Sicherheitshinweise: Bitte lesen Sie vor der ersten Inbetriebnahme diese Bedienungsanleitung sorgfältig durch. ▶...
Seite 5
Umgang mit Batterien Batterien können brennbare Stoffe enthalten. Bei unsachgemäßer Behandlung können Batterien auslau- fen, sich stark erhitzen, entzünden oder gar explodieren, was Schäden für Ihr Gerät und Ihre Gesundheit zur Folge haben könnte. Befolgen Sie folgende Hinweise: Halten Sie Kinder von Batterien fern. ▶...
Sicherer Gebrauch Elektrogeräte nicht in Kinderhand! Lassen Sie Kinder niemals unbeaufsichtigt elektrische Geräte benut- zen. Halten Sie auch die Verpackungsfolien von Kindern fern. Es besteht Erstickungsgefahr. Sicheres Aufstellen ▶ Verwenden Sie das Gerät ausschließlich in trockenen Räumen. Wenn Sie das Gerät von einer kalten in eine warme Umgebung bringen, kann sich im Inneren des Gerä- ▶...
Seite 7
▶ Ziehen Sie den Netzstecker aus der Steckdose und entfernen Sie das Antennenkabel vom Gerät, wenn Sie das Gerät längere Zeit nicht benutzen oder wenn sich ein Gewitter nähert. ▶ Das Netzkabel darf während des Betriebs nicht um das Gerät gewickelt sein oder heiße Oberflächen berühren.
VOR DER INBETRIEBNAHME • Bevor Sie Ihr Internetradio, die Streamingfunktionalität oder die Bedienung per Smartpho- ne-App nutzen können, benötigen Sie: • Einen schnellen Internetzugang. • Einen Router, vorzugsweise mit WL AN (kabelloser Zugriffspunkt). • Falls Ihr Router kein WL AN bietet, können Sie Ihr Gerät auch über ein Ethernetkabel anschließen.
Seite 9
Blu-Ray & CD-Schublade Taste „Clock“: Durch Drücken der Taste wechselt das Farbdisplay Gerät in den Standby Modus und im Display wird die Multifunktionsdrehknopf: Durch links/rechts Dre- Uhrzeit/Datum anzeigt. Nach nochmaligem Drücken hung wird die Lautstärke angehoben oder abge- startet das Gerät wieder und wechselt in den letzten senkt.
DIE FERNBEDIENUNG Taste „Standby“: Schaltet das Gerät in den „Clock“ Modus, im Display werden Uhrzeit und Datum angezeigt. Schalten Sie das Gerät am Netz- schalter aus, um Energie zu sparen. Taste „Mute“: Schaltet den Ton aus. Taste „A/B“: Schaltet die Lautsprecher aus. Betriebsarten-Auswahltasten: •...
Taste „Schneller Vorlauf“: Nur für CD/Blu-Ray-Betrieb. Taste „Tone“: Aktiviert die Höhen- und Bass-Einstellung. Das jeweilige Einstellen der Werte erfolgt mit den VOL- / VOL+ Tasten. Taste „SUR“: Durch diese Taste werden verschiedene digitale Klangoptimierungen eingeschaltet. Taste „RAN“: Schaltet bei CD/Blu-Ray-Betrieb die zufällige Wiedergabe an bzw. aus. Taste „REP“: Schaltet bei CD/Blu-Ray-Betrieb auf automatische Wiederholung.
Sie bitte die beiliegende WLAN-Antenne. ▶ Wenn Sie Ihren BB-200 über Ethernet (kabelgebunden) an das Internet anbinden wollen, verbinden Sie Ihren Router bitte mittels RJ-45 Kabel mit der Ethernet Buchse des BB-200. (In diesem Fall, wird die WLAN Antenne nicht benötigt.) ▶...
Nachdem Sie Ihr Gerät sicher aufgestellt und alle Verkabelungen vorgenommen haben, können Sie Ihre BB-200 nun das erste Mal einschalten. Halten Sie bitte für eine eventuelle WLAN Installation Ihr Passwort (Netzwerkschlüssel) und gegebenenfalls Ihre Netzwerkkennung (SSID) bereit. Nach dem Einschalten star- tet die BB-200 mit dem Einrichtungsassistenten.
Sollten Sie auf eine WLAN Verbindung verzichten und die BB-200 mittels Kabel (Ethernet) an Ihren Router anschließen wollen, gehen Sie bitte wie folgt vor: ▶ Verbinden Sie eine freie LAN-Buchse an Ihrem Router und die LAN-Buchse an der BB-200 mit einem Ethernetkabel (RJ-45). ▶...
DER VERSTÄRKER Die BB-200 ist mit einem hochwertigen Class-AB Verstärker mit einer Leistung von 2 x 15 & 1 x 40 Watt an 4 Ohm (RMS) ausgestattet. Mit folgenden Einstellungen können Sie das Klangbild verändern: Lautstärke: Mit den Tasten „VOL+“ und “VOL-“ auf Ihrer Fernbedienung oder am Gerät mit dem Multifunktionsdreh- knopf können Sie die Gesamtlautstärke der BB-200 verändern.
DAS UKW RADIO Sie können Ihr UKW-Radio sowohl mit der beiliegenden Kombiantenne für UKW- und DAB+ Empfang, als auch mit einer Hausantenne (Adapter liegt bei) nutzen. Das UKW-Radio können Sie sowohl mit der Fernbe- dienung Taste „FM“, als auch am Gerät durch mehrmaliges Drücken der Taste „Source“ aktivieren. Erstes Einrichten: ▶...
DAS DAB+ RADIO Sie können Ihr DAB+ Radio sowohl mit der beiliegenden Kombiantenne für UKW- und DAB+ Empfang, als auch mit einer Hausantenne betreiben. Ein Anschluss an das Kabelnetz ist zur Zeit nicht möglich, da die DAB+ Sender leider nicht eingespeist werden. Das DAB+ Radio können Sie sowohl mit der Fernbedienung, Taste „DAB“, als auch am Gerät durch mehrmaliges Drücken der Taste „Source“...
Das Internetradio Wenn Sie Ihre, BB-200 wie auf Seite 13 beschrieben, an das Internet angeschlossen haben, können Sie nun ohne weitere Einstellungen Internetradio empfangen. Ihr Internetradio verbindet sich vollautomatisch mit einer der größten Datenbanken für Internetsender, in der weit über 25.000 Sender und Podcasts weltweit gelistet sind.
BB-200 eingelesen werden zu können. Je nach Hersteller des Speichermediums kann dieser möglicherweise in seiner Größe beschränkt sein. Die BB-200 erkennt MP3-, WMA- und FLAC-Dateien mit einer maximalen Samplingrate von 48 KHz bei 16 Bit (FLAC) und 320 kBit/s (MP3 und WMA).
Streamingdienste Zur Zeit sind eine Vielzahl an Streamingdiensten mit unterschiedlichsten Technologien am Markt. Wenn Sie diese auf Ihrer BB-200 nutzen möchten, verbinden Sie einfach Ihre BB-200 mittels Bluetooth mit Ihrem Handy, Tablet oder PC, wählen Sie dort diese als Ausgabegerät.
Starten Sie jetzt die App „UNDOK™“. Die App sucht jetzt alle Geräte im WLAN. ▶ Bitte wählen Sie Ihre BB-200 aus den gefundenen Geräten aus. Ihre BB-200 ist nun mit der App „UNDOK™“ verbunden und Sie können das Gerät fernbedienen: ▶ ▷...
Koppeln eines externen Gerätes mit der BB-200: Suchen Sie auf Ihrem externen Gerät nach bluetoothfä- higen Geräten in Ihrer Umgebung, wählen Sie Ihre BB-200 aus und starten Sie das Pairing (Kopplung der Geräte). Ziehen Sie bei Problemen oder für weitere Hinweise zum Pairing bitte die Bedienungsanleitung des Gerätes zu Rate, welches Sie mit Ihrer BB-200 koppeln möchten.
Der rückwärtige Pre-Out Ausgang sendet elektrische Hochpegel-Audiosignale in analoger Form. Diese Signale werden in Klang und Lautstärke von den getroffenen Einstellungen an der BB-200 verändert. Die- ser Ausgang ist besonders geeignet für einen zusätzlichen Verstärker, z. B. in einem zweiten Raum, einen aktiven Subwoofer oder Funk-Lautsprecher, z.
Der rückwärtige digitale Video- Ausgang dient ebenfalls zum Anschluss eines TV-Gerätes. Der Line-In Anschluss Der hinter der magnetischen Abdeckung an der Front liegende Line-In Anschluss der BB-200 verarbeitet elektrische Hochpegel-Audiosignale in analoger Form. Dieser Anschluss ist geeignet für alle externen Geräte mit analoger Audioausgabe, wie z.
Hier finden Sie eine Kurzanleitung zu Ihrer ersten Inbetriebnahme des Blu-Ray-Players. Für ausführliche Informationen besuchen Sie bitte unsere Homepage www.audioblock.com. 1. Verbinden Sie die BB-200 mit dem Strom und schließen Sie den Einrichtungsassistenten ab. 2. Verbinden Sie die BB-200 mit Ihrem TV-Gerät.
Die Fernbedienung im Blu-ray modus Beachten Sie, dass sich die Tastenbelegung im Blu-ray Modus durch das Betätigen der DISC Taste umstellt (Display zeigt Blu-ray Remote an). Die Funktionen sind nun an den Blu-ray Player angepasst, die Bezeichnungen über den Tasten sind aktiviert. Bitte beachten Sie, dass einige Funktionen der Auswahltasten abhängig von der eingelegten Disc sind.
Einrichtungsassistenten. Software Update: Die BB-200 prüft regelmäßig, ob ein Update im Internet zur Verfügung steht und weist Sie darauf hin. Sie können dann wählen, ob das Update ausgeführt werden soll. Sie können diese Funktion hier abstellen (nicht empfohlen) oder die Betriebssoftware auf Aktualität prüfen.
Wenn nicht, bitte umcodieren. Netzwerk Error Falsche Informationen werden vom Netzwerk Die Daten vom Server sind nicht lesbar, eventuell empfangen. Neustart von BB-200 und Router. Netzwerk nicht Probleme mit der Verbindung zum Router. Router einschalten oder neu starten. verfügbar Netzwerk Keine Antwort, unabhängig vom Netzwerk.
Fehlermeldungen und Problembehebung (Allgemein) Fehlerbeschreibung Mögliche Ursache und Behebung Kein Strom, obwohl das Gerät - Das Stromkabel ist nicht angeschlossen eingeschaltet ist - Die Steckdose ist defekt - Die Sicherung im Gerät ist defekt – Fehler muss durch einen Techniker repariert werden.
Pflege und Transport Pflege und Reinigung des Gerätes Nehmen Sie das Gerät, bevor Sie es reinigen, vom Strom. Benutzen Sie nur saubere und trockene Lappen, um ihr Gerät zu reinigen. Wenn das Gerät sehr stark verschmutzt ist, können Sie das Gerät mit einem handfeuchten Lappen und mit milder Reinigungsflüssigkeit reinigen.
Dieses Gerät entspricht den grundlegenden Anforderungen und den anderen relevanten Vorschriften der EMV-Richtlinie 2014/30EU, der Richtlinie für Nieder- spannungsgeräte 2014/35/EU, der ErP-Richtlinie 2009/125/EC, der R&TTE- Richtlinie 1999/5/EC sowie der RoHS Richtlinie 2011/65/EU. Um die vollständige EU-Konformitätserklärung zu erhalten, senden Sie eine Mail an folgende E-Mail Adresse: block@audioblock.com...
Dear Costumer, Thank you for choosing this high quality de- downloading. For this purpose, compare the vice. This manual shall give you an over view status on the cover page with the information of how to operate your device. You will receive on the internet.
Seite 33
Contents Safety instructions ............................34-37 Before operating ..............................38 Operating Elements on the Device......................... 38-39 The remote control ..............................40 Connections to the device ............................41 Assembling the device ............................42 Initial commissioning and installation ........................43 Manual Installation (WLAN & LAN) ........................44 The amplifier ................................45 The FM radio ................................46 The DAB + radio ..............................47 The internet radio ..............................48...
Safety instructions Caution: to avoid the risk of electric shock, do not modify this device! The opening of the device as well as changes in the appliance may be carried out only by authorized personnel. Important security instructions: ▶ Before using the device for the first time, please read the operating instructions thoroughly. This device is to be used indoors only.
Handling batteries Batteries may contain flammable substances. Improper handling can cause batteries to leak, strongly heat, ignite, or even explode what, could damage your device and your health. Follow these instructions: Keep children away from batteries. ▶ ▶ In case of batteries have been swallowed, report this to your doctor immediately. ▶...
Seite 36
Safety instructions Do not let electrical appliances in children‘s hands! Never let children unattended to use electrical devices Also keep the Packaging foils far away from children. There is a danger of shocking and suffocation. Safe positioning Use the device exclusively in dry rooms ▶...
Seite 37
Safe use Disconnect the power plug from the power socket and remove the aerial cable from the device if you do ▶ not use the unit for a long time or when a thunderstorm is approaching. ▶ The net cable shall not be wrapped around the device during operation nor in touch to hot surfaces. Avoid humidity to enter the housing.
Before commissioning Before you can use your internet radio, streaming functionality or using a smartphone app, you will need: • A quick Internet access. • A router, preferably with WL AN (wireless access point). • If your router does not provide WL AN, you can also connect your device via an Ethernet cable •...
Seite 39
er mode the device changes to the next track. “Clock” button: Press the button to switch to Disc drive (CD/Blu-Ray) standby mode. Date and time are shown in the Colour display display. After a further pressure the device will Multifunction knob: With left / right rotation, start again with the latest mode.
The remote control „Standby“ button: Switches the device into „Clock“ mode, the display will show the time and the date. To save energy switch off the device with the main power button. „Mute“ button: Switches the sound off. „A/B“ button: Turns off the speakers. Operating Mode select button: •...
„Fast backward“ button: Only on CD/Blu-Ray mode. „Fast forward“ button: Only on CD/Blu-Ray mode „Tone“ button: Activates the treble and bass settings.To adjust the volume, use the VOL- / VOL + buttons. „SUR“ button: Press this button to switch to the different digital sound optimizations. „RAN“...
If you want to use another (high end) amplifier or an active subwoofer on the BB-200, please connect it to the pre-out jacks of the BB-200. This output emits a signal from the BB-200 influenced in volume and tone control.
After you have safely installed your device and have carried out all the wirings, you can switch on your BB-200 for the first time. Have your password (WEP or WPA) and if necessary your network identifier (SSID) ready for a possible WLAN installation. After turning on the BB-200 will start on CD mode.
* Should you have disconnected the DHPC function on you router, select please “DHPC inactive”. In this case, you must configure the Network, the rules and specification should be known by now. For the configuration, you may need the MAC address of your Block device. You can find this under Menu/...
The amplifier The BB-200 is equipped with a high-quality AB class amplifier with an output of 2 x 14 & 1 x 40 watts to 4 ohms (RMS). To change the sound, use the following settings: Volume: Use „VOL +“ and „VOL-“ buttons on the remote control or the multi-function knob on the device to change the volume of your system overall.
The FM radio You can enjoy your FM radio with the supplied FM and DAB + reception combination, as well as with a house antenna or a cable connection (adapter is included). You can activate the FM radio with the remote control, pressing the „FM“...
The DAB + radio You can operate your DAB + radio with the enclosed combination aerial for FM and DAB + reception as well as with a house antenna. A connection to the cable network is not possible at the moment, because the DAB + stations are unfortunately not deposited.
The Internet radio If you have your BB-200 connected to the Internet, you shall receive Internet radio without any further settings. Your Internet radio shall be automatically connected to one of the largest databases of Internet radio stations, with more than 25,000 broadcasters and podcasts worldwide. You can activate the Internet radio with the remote control, the „IR“...
You can connect a removable disk (e.g. USB stick or USB hard disk with own power supply) to the USB front port of your BB-200. This memory medium has to be formatted FAT 32 in order to be read by the BB-200.
At the moment, there are a large number of streaming services with the most different technologies in the market. If you want to use it on your BB-200, simply connect your BB-200 via Bluetooth to your mobile phone, tablet or PC. Select it as output device.
Google‘s Play-Store® and search for the term „undok“. Install the free app on your mobile device. Im- portant: To operate your BB-200, the Smartphone / Tablet and the BB-200 has to be registered in the same WLAN network and the BB-200 has to be switched on! Now start the app „UNDOK ™“.
Adapting external Remote controls Your BB-200 can learn the codes from other remote controls, e.g. from a TV remote control. Proceed as follows: • Press the „Menu“ button on the appliance for 3 seconds, then the device enters the learning mode •...
BB-200. Afterwards you can activate the music playback function of your external device and your BB-200 will play the music. Please note that you can only link sources using the built-in Bluetooth function. The pairing of, for example, external speakers to the BB-200 is not possible! Connect your Bluetooth headset to the BB-200 With the BB-200 you have the possibility to connect a Bluetooth headset via Bluetooth.
The rear pre-out output sends high-level electrical audio signals in analogue form. These signals will not change in sound and volume after the settings made on the BB-200. This output is particularly suitable for an additional amplifier, e.g., an active subwoofer in a second room, or radio loudspeakers, e.g. for terrace or kitchen.
The headphone connection The headphone jack of the BB-200, located behind the magnetic cover on the front, allows you to connect a commercially available headphone with 6.3 mm jack plug. A 3.5 mm jack adapter for smaller headphones...
This is a short manual for the first commissioning of your new Blu-ray Player. For detailed information go to www.audioblock.com 1. Connect your BB-200 to the mains and finish setup wizard. 2. Connect BB-200 with your TV. 3. Start your Blu-ray player. You can go to there by pressing „Disc“ on you remote control. Press it again to set you RC into Blu-ray mode.
The Remote control in blu-ray mode Note that button assingments change in Blu-ray mode by pressing the disc button. (Display news Blu-ray Re- mote) The function are now adapted to the Blu-ray player. The descreption above the keys are activated. Please note that same function of the selection buttons are dependent to the insert disc.
Software Update: The BB-200 checks regularly whether there is any update available on the Internet and points it out. You can then choose to run the update. You can disable this feature (not recommended), or check the operating software for update process.
FLAC with no more than 48 KHz. If not, please re-encode. Network Error Wrong information is received from the network The data from the server are not readable, possib- ly restart the BB-200 and the router Network not Problems connecting the router Switch on or restart the router available...
Error Messages and General Troubleshooting Error Description Possible cause and remedy No power even though the - The power cable is not connected unit is on - The socket is defective - The fuse in the device is defective - Fault must be repaired by a technician - The power cable is defective No sound - The unit is not on at all...
Care and transport Care and cleaning of the appliance Before you clean it, disconnect it from the power supply. Use only clean and dry cloths to clean your appli- ance. If the appliance is very dirty, you can clean the unit with a damp cloth and mild cleaning fluid. Never use liquids such as gasoline, alcohol, petroleum or other solvents.
Seite 62
2014/35 / EU, the ErP directive 2009/125 / EC, the R & TTE directive 1999/5 / EC and the RoHS directive 2011/65 / EU. To receive the full EU declaration of conformity, send an email to the following email address: block@audioblock.com...
Seite 64
Audioblock GmbH Auf der Striepe 3a | 27798 Hude Tel.: +49 (0) 44 84 - 920 090 10 | E-Mail: block@audioblock.com www.audioblock.com...
