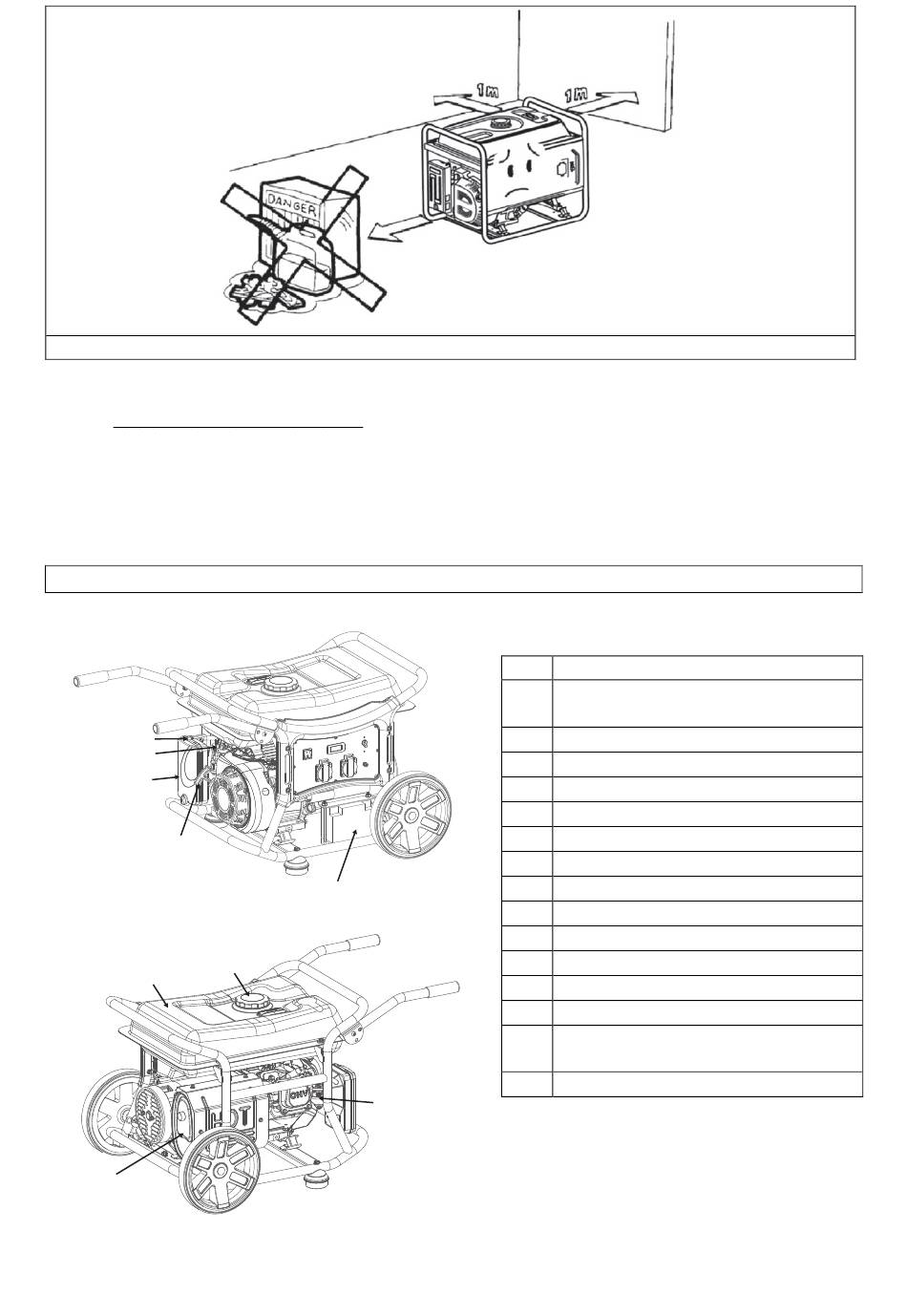

Please keep it 1m minimum away from the inflammable materials

2. SPECIAL REQUIREMENTS

• Electrical equipment including lines and plug connections should be free from
exposure.
• The circuit breakers should be matched with the generator equipment. If the circuit
breakers require replacement, they must be replaced with a circuit breaker having
identical ratings and performance characteristics

COMPONENT IDENTIFICATION

1
3
2
4
8
6
5
7
9
1 CHOKE LEVER
2 AIR CLEANER
3 FUEL VALVE
4 RECOIL-STARTER GRIP
5 BATTERY (ES)
6 MUFFLER
7 FUEL TANK CAP
8 FUEL TANK
9 CARBURETOR
10 GENERATOR SWITCH
11 CIRCUIT BREAKER
12 SOCKET CIRCUIT BREAKER
13 SOCKET
14 CEE SOCKET
15 HOUR METER – VOLT METER
– FREQUENCY METER
16

GROUND TERMINAL

5
