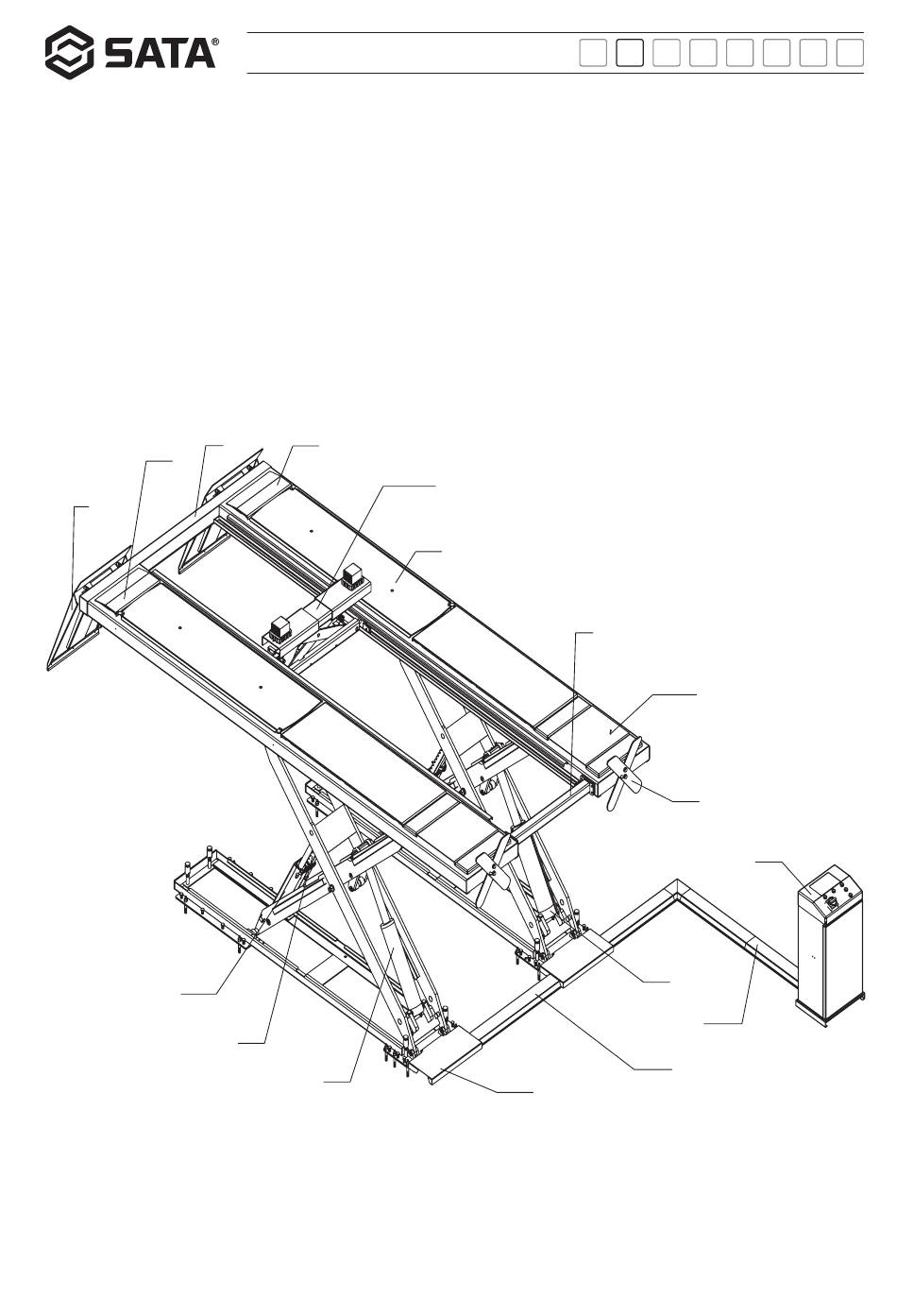

2.3 Schematic diagram of main components
Turntable: for four-wheel alignment and front wheel steering.
Side slide plate: for four-wheel alignment and rear wheel side sliding
Main scissor: main working platform, for lifting the vehicle by contacting the wheel
Sub scissor: sub working platform, for lifting the vehicle by contacting the chassis.
Safety gear: safety mechanism, for mechanical locking.
Control cabinet: control unit, providing the power takeoff.
Rear beam Main platform
Sub platform
Secondary lifting trolley
Ramp
Side slide plate
Front beam
Turntable cover
Front baffle
Control cabinet
Master cylinder
Slave cylinder
Oil pipe cover II
Safety bar
Oil pipe cover II
Slave cylinder
Oil pipe cover I
