CT-1900 is ideally suitable for monitor-
ing small children, babies or persons in
need of care.
The babyphone unit works on two dif-
ferent frequencies (channels) in the
10
864 MHz frequency range and there-
fore offers you the comfort of optimal
10
transmission quality without annoying
cables and disturbing CB- and amateur
11
radio interference in a periphery of up to
600 m (under optimal conditions).
11
The unit can be operated independent
11
of mains supply with the enclosed Micro
rechargeable batteries AAA or with the
11
enclosed power packs.
The rechargeable batteries must remain
12
in the devices, if you decide to use the
12 power packs.
12
1. Scope of delivery
– 1 x transmitter
13
– 1 x receiver
– 2 x power packs
13
– 1 x charging station for receiver
13
– 6 x Micro rechargeable batteries AAA (3 units
for transmitter and/or receiver each)
13
– 1 x operating instructions
13
2. Safety notes
Warranty claims concerning damages are void,
13
if they are caused by non-observance of these
13
operating instructions! We are not responsible
for resulting damages! We are not responsible
13
for damage to property or bodily injuries, which
are caused by inappropriate handling or non-
14
observation of the safety notes. The warranty
claim is void in such cases.
14
14
14
• Please read the operating instructions before
using the babyphone!
14
• The operating instructions are an integral part
of the product. They contain important notes
15
on start-up and handling of the device.
15
• Keep the enclosed operating instructions for
renewed reading!
15
• They must be handed over when passing the
device on to third persons.
15
-10-
3. Further requirements
• 864 MHz frequency range for optimal trans-
mission quality
• continuous transmitter sensitivity adjustment
• continuous receiver volume control
• 2 different channels adjustable
• 16 different digital codes adjustable as addi-
tional protection from radio interference
• battery monitoring
• acoustic and visual receiver range alarm

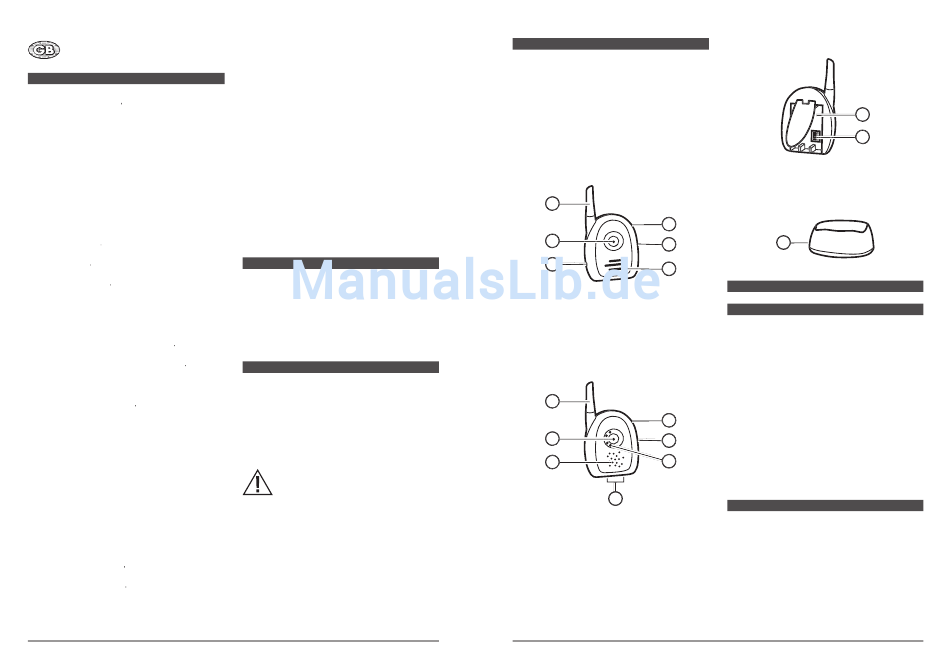

Transmitter
Fig. 1
1
4
2
5
3
6
1. Aerial
2. Operation/warning display
3. Mains socket
4. Sensitivity regulator
5. On/Off channel switch selector
6. Microphone
Fig. 2 Receiver
1
4
2
5
7
3
6
1. Aerial
2. Operation/warning display/
Range alarm display
3. Loudspeaker
4. Volume control
5. On/Off channel switch selector
6. Charging contacts
7. LED chain
Fig. 3 Rear view
1
2
1. Rechargeable battery compartment
2. Digital code changeover switch (DIP-switch)
Fig. 4 Charging station
1
1. Mains socket
4. Before start-up
4.1. Setting the digital code
Please check whether both devices are set to
the same channel and to the same digital code
before using the transmitter and receiver. Open
both battery compartment lids to set the digital
code. Pull the battery compartment lid belt clips
downwards until they are audibly released from
the fi xtures and tilt them upwards by approx. 30°
until they can be adjusted. The battery compart-
ment lids are now pushed in the direction of the
arrow and removed from the housing.
You can now change the position of the DIP-
switch (2) (see "12. Digital code combination
table") using a ballpoint-pen.
The switch position must be identical in both de-
vices to accomplish a connection.
4.2. Inserting the rechargeable batteries
Position the device with the rear side towards
you, pull the battery compartment lid belt clips
downwards until they are audibly released from
the fi xtures and tilt them upwards by approx. 30°
until they can be adjusted. The battery compart-
ment lids are now pushed in the direction of the
arrow and removed from the housing.
Insert the enclosed Micro rechargeable bat-
teries AAA, while observing the correct polarity
-1 1-
