ATTACHING THE TELESCOPE TUBE TO THE MOUNT

1. Loosen the silver lock knob on the right side of the altazimuth mount.
2. While holding the telescope tube above the altazimuth mount, insert the long, silver rod on the right side of the optical
tube into the hole under the lock knob (see Figure 2-7).
3. Move the telescope tube until you can insert the two altitude hubs on either side of the tube into the notches at the top
of the altazimuth mount (see Figure 2-8).
4. Tighten the silver lock knob.
5. Thread the two hand bolts through the altazimuth mount and into the two altitude hubs on the telescope tube to secure
the tube in place (see Figure 2-9).

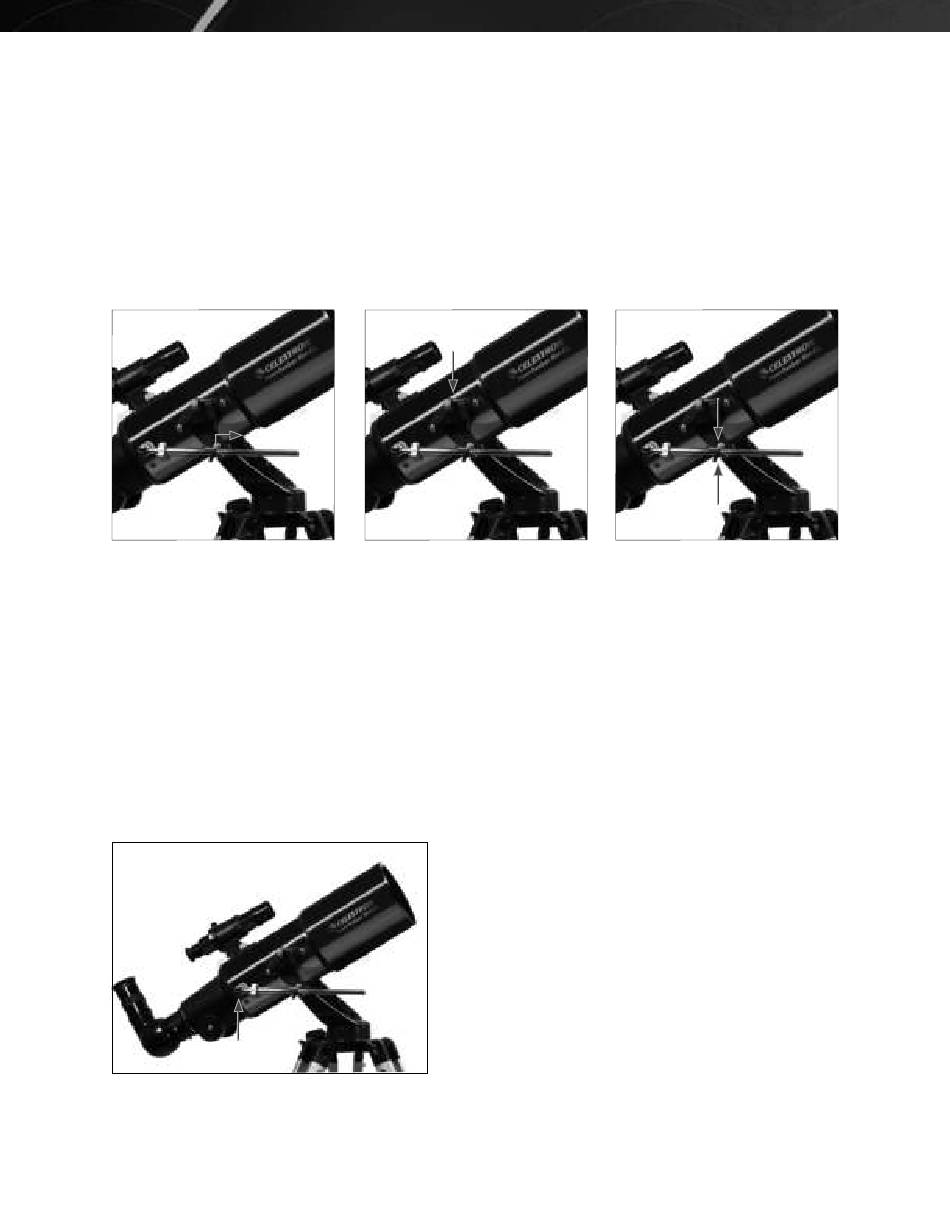

Fig. 2-7

MOVING THE TELESCOPE

The PowerSeeker is easy to move wherever you want to point it. Adjust the altitude (up-and-down position) by loosening
the altitude lock knob and moving the telescope tube up or down. To move the telescope in the azimuth (left-to-right) di-
rection, loosen the azimuth lock knob and move the telescope. When the telescope is centered on your target, lock down
the altitude and azimuth lock knobs.
For fine adjustments in altitude, turn the ring of the altitude slow motion rod (when the altitude lock is tight) in either direc-
tion (see Figure 2-10).
