Control mode 4:
- For single-gate
that require triggers for opening
and closing on different inputs.
- Opening and then closing by a
single call/control command.
- Both outputs are normally open
(NO).
- The opening trigger is provided
by output OUT1 and the closing
trigger is provided by output
OUT2.
- Keeping the
permanently
call/control command.

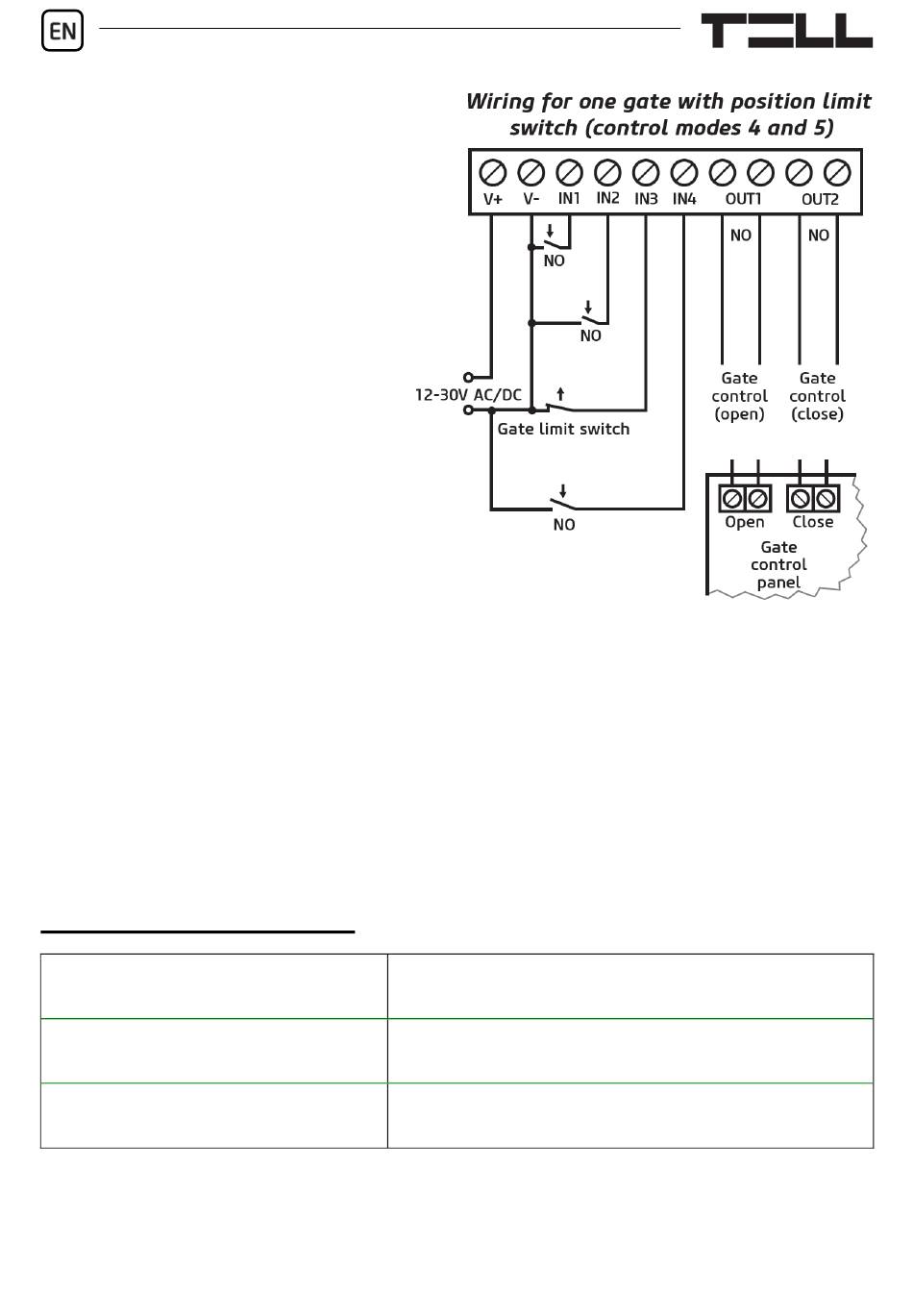

- The gate position limit switch
can be connected to input IN3.
Control mode 5:
- For single-gate automations that require triggers for opening and closing on
different inputs.
- Opening and then closing by separate calls/control commands.
- Both outputs are normally open (NO).
- The opening trigger is provided by output OUT1 and the closing trigger is
provided by output OUT2.
- The gate position limit switch can be connected to input IN3.
-> Chapter 3, 5.2.4 and 5.2.8 of the Installation and Application Manual.
STATUS LED SIGNALS:
Slowly flashing green
Flashing red
Permanent red
automations
gate open
on a second
Normal operation,
connected to the mobile or WiFi network
The mobile or WiFi service is unavailable,
or system startup/restart is in progress
SIM card error
(only for the product variants with a modem)
