2/ Connection

The electrical wiring must comply with EN, IEC and national institute standards for
installation (e.g.: NF C15-100 for France).
In all cases, it must still be possible to switch off the power supply by using an
omnipolar device in accordance with the applicable installation requirement. If
the motor is delivered with a H05VVF power cable, this cable cannot be placed
outdoors, unless it is inside a UV-resistant duct.
For an outdoor use, the motor must be equipped with a RNF or RRF rubber cable
with at least 2% carbon. Contact the sales department.

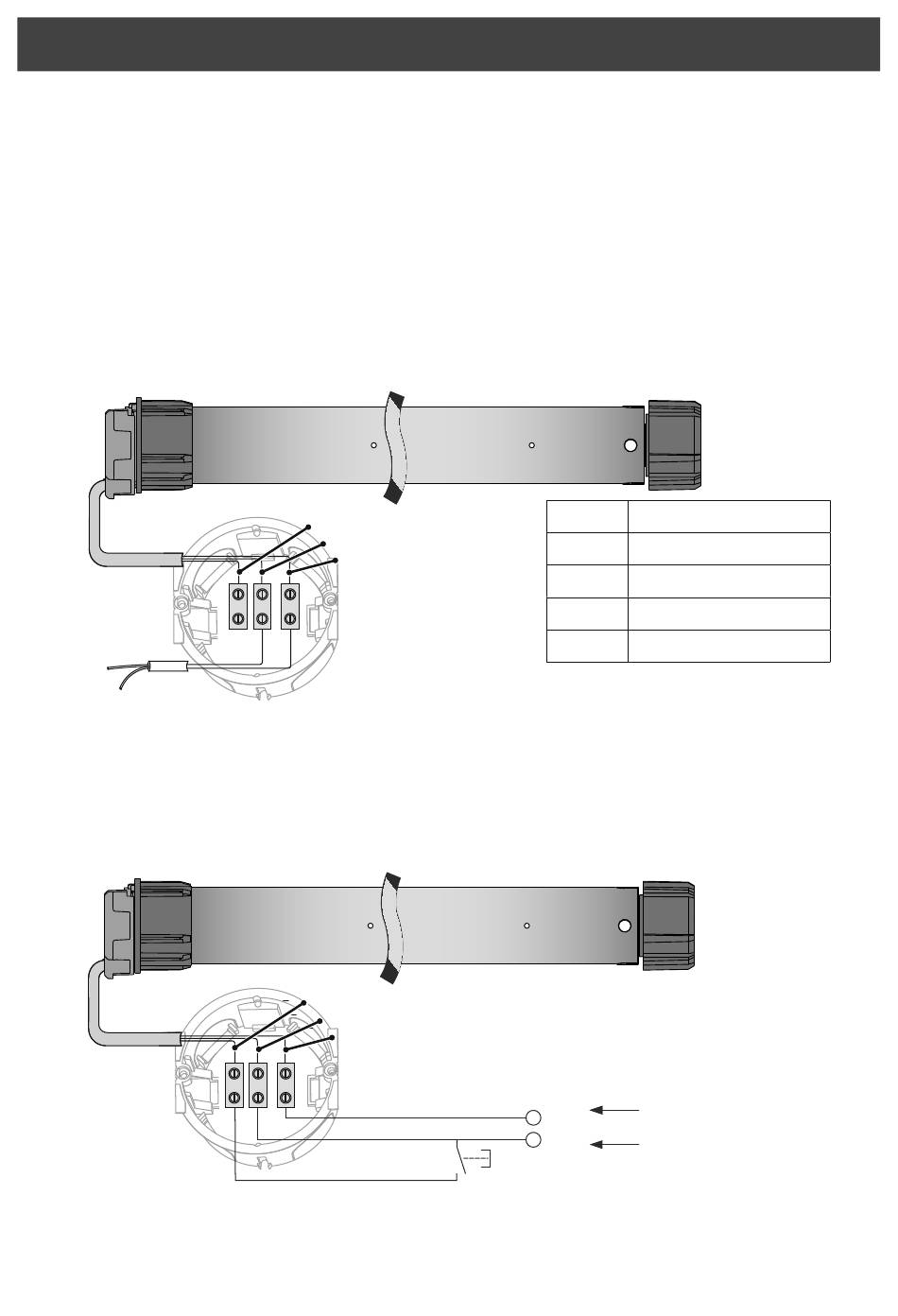

2.1 Wiring without push button, only by transmitter

2
3 x 0.75 mm
Power supply
230 V, 50 Hz
Single-phase
2
2 x 1.5 mm
L
N

2.2 Wiring with a push button

The TYMOOV RP motor can be activated in hard-wired mode.
The command is made with a push button. The motor works in sequence (up, stop,
down, stop, up, etc.)
34
Black
Brown
Blue
L
N
Black
Brown or Grey
Blue
Blue Neutral
Brown Phase
Black Not connected
L Phase
N Neutral
The black wire must be insulated
(e.g. with a screw joint).
N
230 V.a.c. / 50 Hz
L
