4. Hardware Installation
Because there are large differences between PC's, we can give you only a general in-
stallation guide for the EX-1194HMS. Please refer your computer's reference manual
whenever in doubt.
1. Install the EX-1194HMS to the wall or to a DIN-Rail if required.

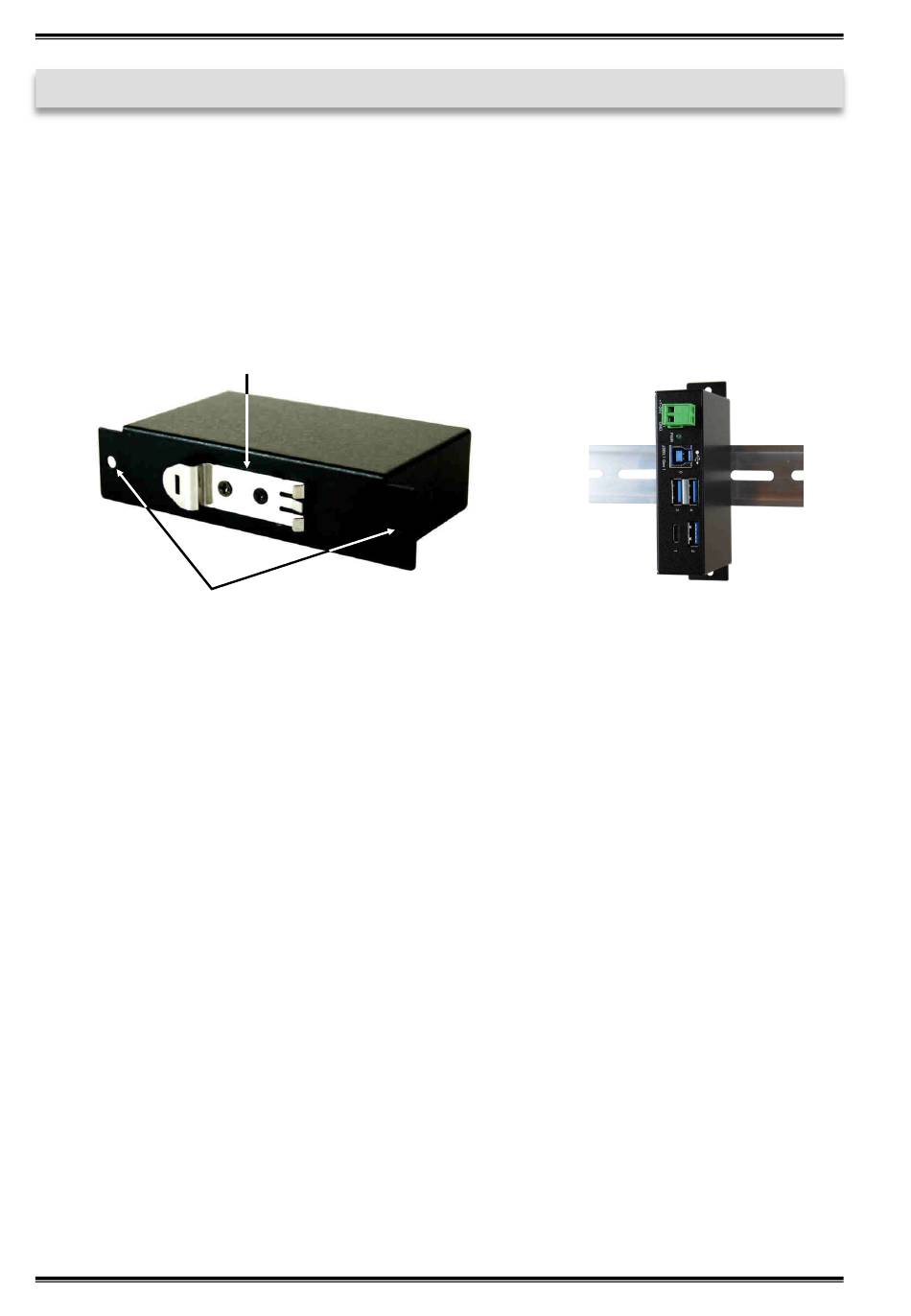

DIN-Rail Clip
Holes for
Wall Installation
2. Connect the USB 3.1(Gen1) cable with the USB 3.0/3.1(Gen1) Upstream B-Port at the
EX-1194HMS.
3. Connect the optional power supply to the Terminal Block at the Hub.
4. Now connect the other end from the USB 3.1(Gen1) cable (A-Plug) to the USB
A-Port at your PC.
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
14
EX-1194HMS
Installation to
DIN-Rail
