3. Layout, Connections & Jumper Settings

3.3 Jumper Settings

The EX-1194HMS comes with the setting Self-Power. You also have the possibility
the EX-1194HMS to supply Bus-Power. For this you open the case with the two
screws on both sides. Then you must set the jumper JP1 from DIS (Disable) to ENA

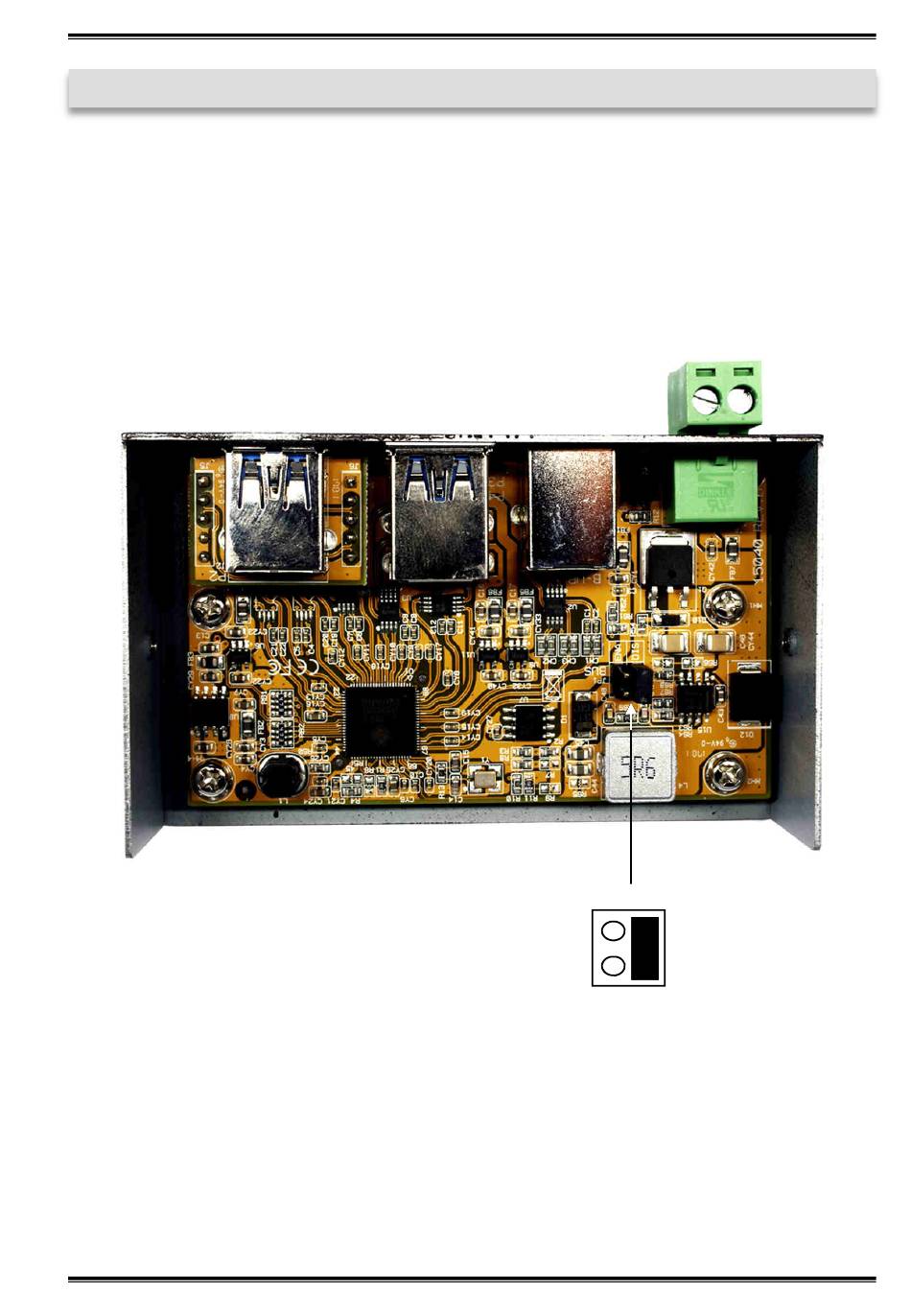

(Enable). See the following picture.
ENA DIS
JP1
