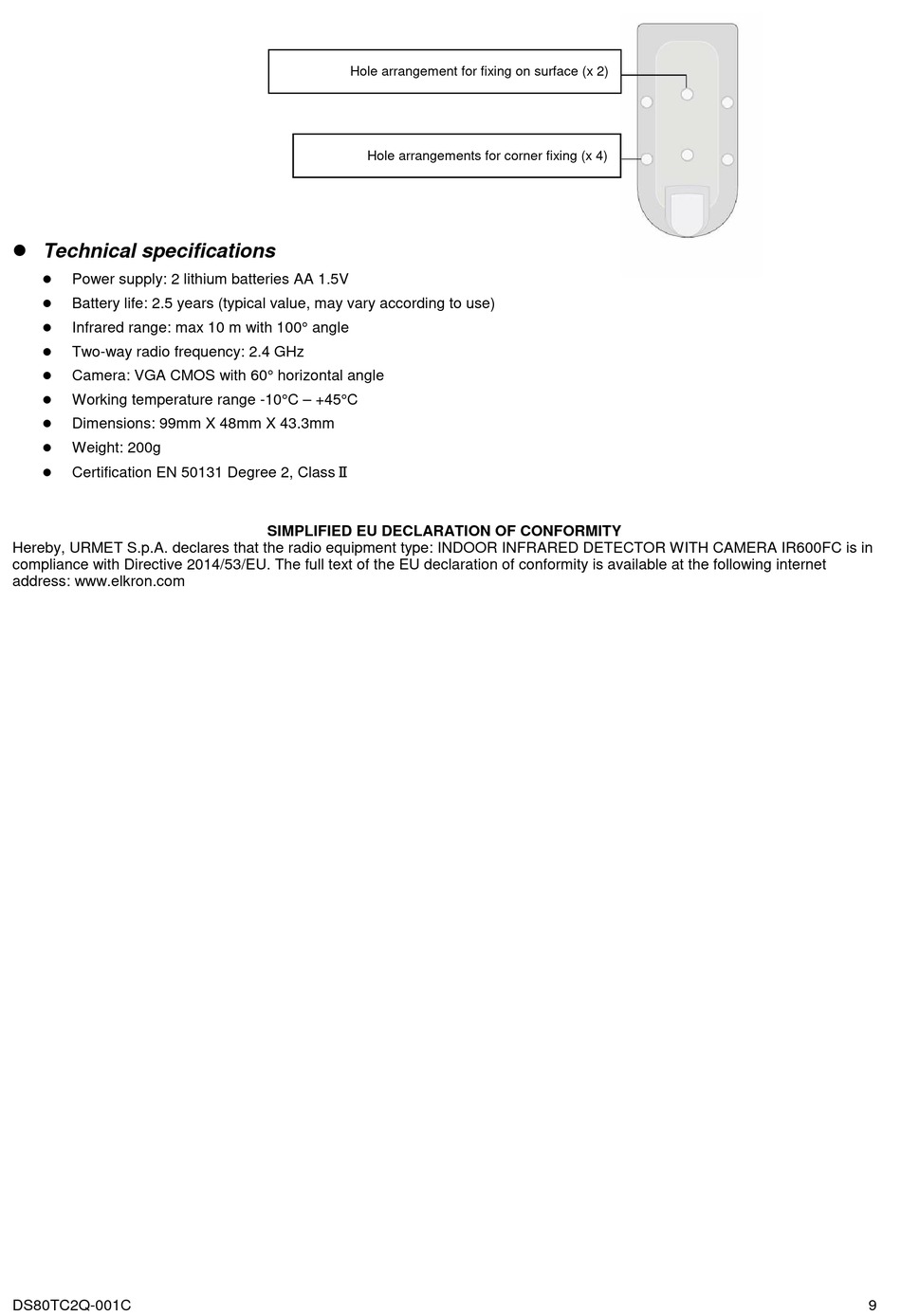

Technical specifications
Power supply: 2 lithium batteries AA 1.5V
Battery life: 2.5 years (typical value, may vary according to use)
Infrared range: max 10 m with 100° angle
Two-way radio frequency: 2.4 GHz
Camera: VGA CMOS with 60° horizontal angle
Working temperature range -10°C – +45°C
Dimensions: 99mm X 48mm X 43.3mm
Weight: 200g
Certification EN 50131 Degree 2, ClassⅡ
Hereby, URMET S.p.A. declares that the radio equipment type: INDOOR INFRARED DETECTOR WITH CAMERA IR600FC is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet
address: www.elkron.com
DS80TC2Q-001C
Hole arrangement for fixing on surface (x 2)
Hole arrangements for corner fixing (x 4)
SIMPLIFIED EU DECLARATION OF CONFORMITY
9
