1
2a 2a

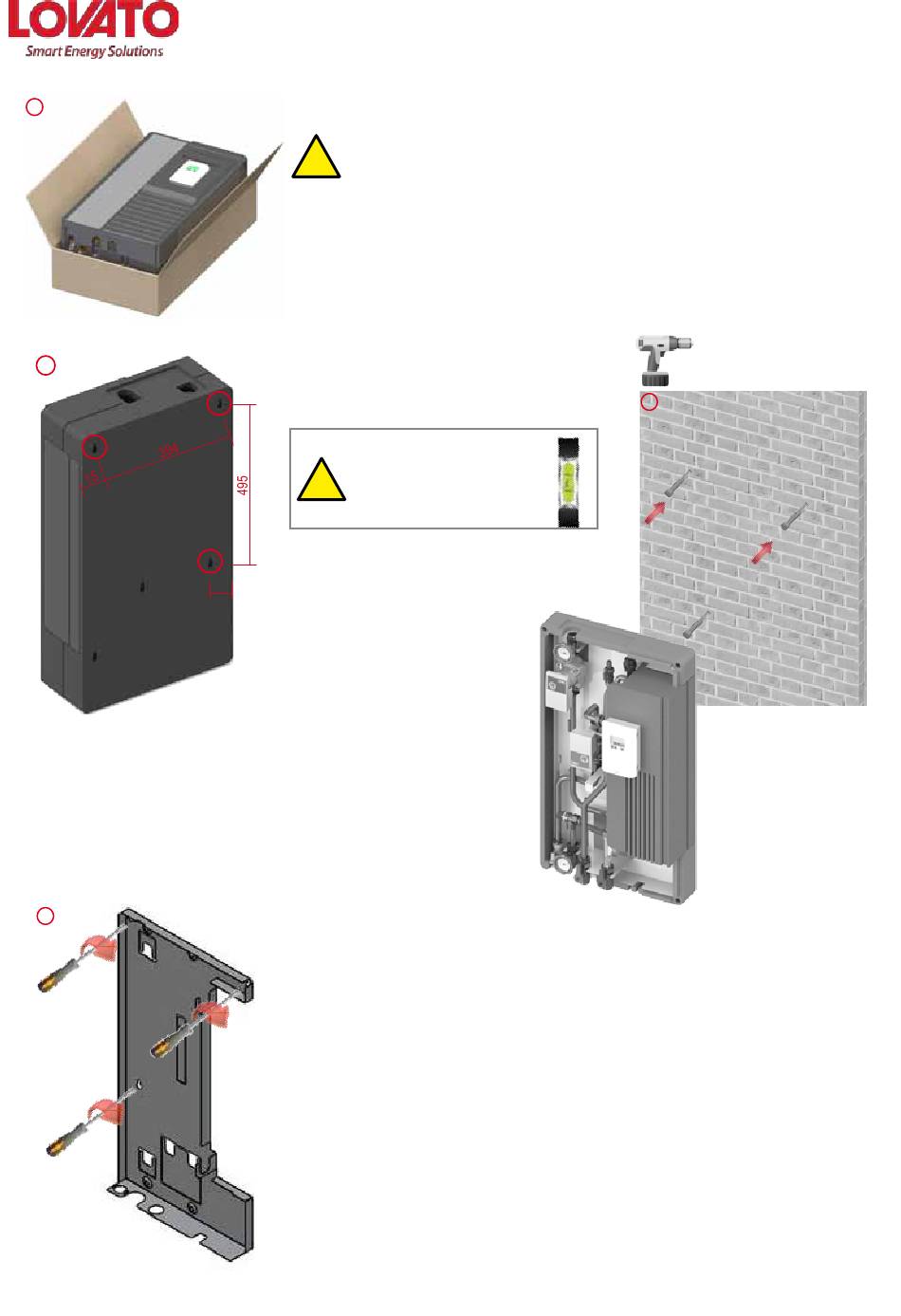

2. Fix No. 3 plugs on the wall (picture 2) respecting the distance
as shown in rif. 2a. Install the module on the the plugs through the
slots on the back of the module. Slide it down and fix the screws in
the plugs.
T-FAST IE 40 BACK DETAIL
3
!
HANDLE IT WITH CARE!
1. Pull out the module from the package and remove the cover.
!
PLACE THE BRACKET IN THE
45
3.
Screwing the screws as indicated in the picture 4.
Assembling instrunctions and maintenance
ATTENTION!
IMPORTANT!
CORRECT PLACE
2
22
