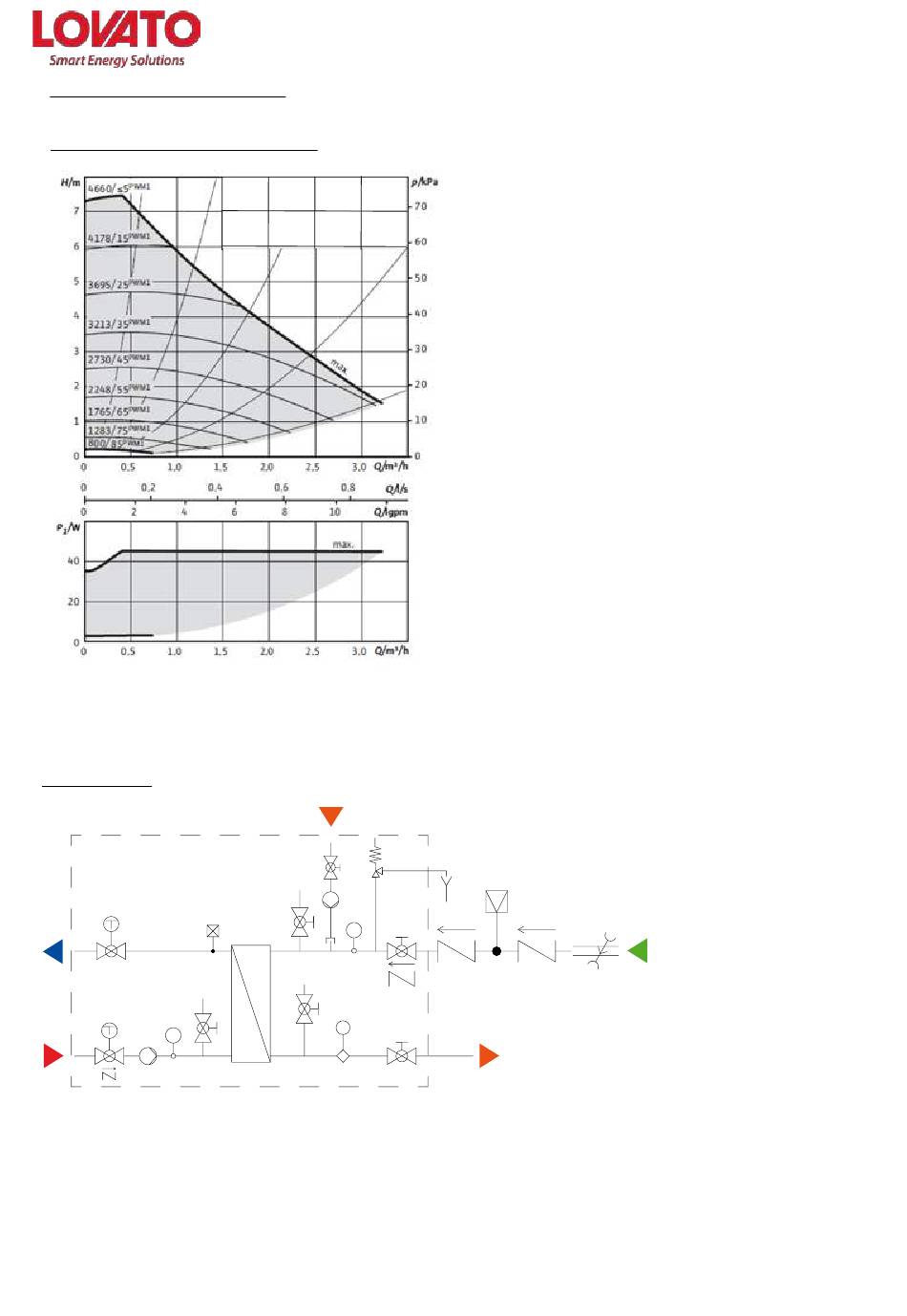

PRIMARY CIRCUIT PUMP CHARACTERISTICS
HIGH EFFICIENCY PUMP WILO YONOS PARA 15/1-7
For further informations about the pumps please read the Wilo manuals into the packaging
HYDRAULIC CIRCUIT
8
5
4
8
3
1
1 Primary circuit high efficiency pump
2 Plate heat exchanger
3 Sensor pocket
4 Load / drain tap
5 Manual air vent
9
4
6
10
4
7
10
2
6 Recirculation kit
7 Vortex flow sensor
8 DN20 ball valve with thermometer
9 Safety valve
10 DN20 ball valve
Assembling instrunctions and maintenance
