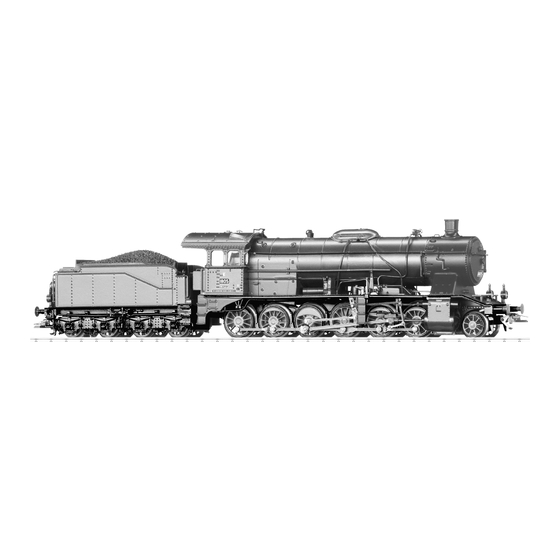

Modell der württ. reihe k
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 6
Modell der Württ. Reihe K
37048

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Märklin 37048

  • Seite 1 Modell der Württ. Reihe K 37048...
  • Seite 2: Inhaltsverzeichnis

    Inhaltsverzeichnis Seite Page Sommaire Informationen zum Vorbild Informations concernant la locomotive réelle Sicherheitshinweise Remarques importantes sur la sécurité Wichtige Hinweise Information importante Funktionen Fonctionnement Schaltbare Funktionen Fonctions commutables Parameter / Register Paramètre / Registre Betriebshinweise Remarques sur l’exploitation Ergänzendes Zubehör Accessoires complémentaires Wartung und Instandhaltung Entretien et maintien...
  • Seite 4: Informationen Zum Vorbild

    Informationen zum Vorbild Information about the Prototype Ab 1917 wurde in Esslingen die erste und einzige deutsche Starting in 1917 the first and only German locomotive class Lokomotiven-Baureihe mit 6 Kuppelachsen gebaut: die le- with 6 coupled axles was built in Esslingen: gendäre Württemberger „K“.
  • Seite 6: Sicherheitshinweise

    Sicherheitshinweise Funktionen • Die Lok darf nur mit einem dafür bestimmten Betriebs- • Erkennung der Betriebsart: automatisch. system (Märklin AC, Märklin Delta, Märklin Digital oder • Einstellbare Adressen: Märklin Systems) eingesetzt werden. 1-80 (Control Unit 6021/Mobile Station 60651/652) • Nur Schaltnetzteile/Transformatoren verwenden, die 1-255 (Central Station 6021x/Mobile Station 60653) Ihrer örtlichen Netzspannung entsprechen. • Adresse ab Werk: 59 • Die Lok darf nur aus einer Leistungsquelle versorgt • Mfx-Technologie für Mobile Station / Central Station.
  • Seite 7: Schaltbare Funktionen

    f0 f8 Schaltbare Funktionen systems STOP mobile station Digital/Systems Spitzensignal function/off Funktion f0 Funktion f0 Rauchgenerator Funktion 1 Funktion 7 Funktion f1 Funktion f1 Betriebsgeräusch Funktion 2 Funktion 3 Funktion f2 Funktion f2 Lokpfeife Funktion 3 Funktion 4 Funktion f3 Funktion f3 ABV aus Funktion 4...
  • Seite 24: Ergänzendes Zubehör

    Potentielle Fehlerquellen beim Rauchgenerator • Der Rauchgenerator darf nur maximal halb mit Rauchöl gefüllt sein. • Im Rauchgenerator darf sich keine Luftblase befinden. • Der Anschlussdraht an der Unterseite des Rauchge- nerators muss sicheren Kontakt zur Anschlussfeder im Lokomotiv-Fahrgestell besitzen. Potential Problems with the Smoke Generator 7226 • The smoke generator cannot be filled any more than halfway with smoke fluid. • There should not be any air bubbles in the smoke genera- tor. • The connecting wire on the underside of the smoke generator must have a clean contact with the connection 02420 field in the locomotive’s frame.
  • Seite 26: Wartung Und Instandhaltung

    Radius > 500 mm...
  • Seite 33 1 Sandfallrohre — 31 Lautsprecher E183 288 2 Leitungen E224 522 32 Deichsel E187 228 3 Handrad E282 220 33 Schraube E753 140 4 Griffstangen E187 222 34 Laufradsatz E240 368 5 Haken E282 390 35 Druckfeder E765 620 6 Puffer flach E123 252 36 Lötfahne E231 470...
  • Seite 36 Due to different legal requirements regarding electro-magnetic compatibility, this item may be used in the USA only after separate certification for FCC compliance and an adjustment if necessary. Use in the USA without this certification is not permitted and absolves us of any liability.
