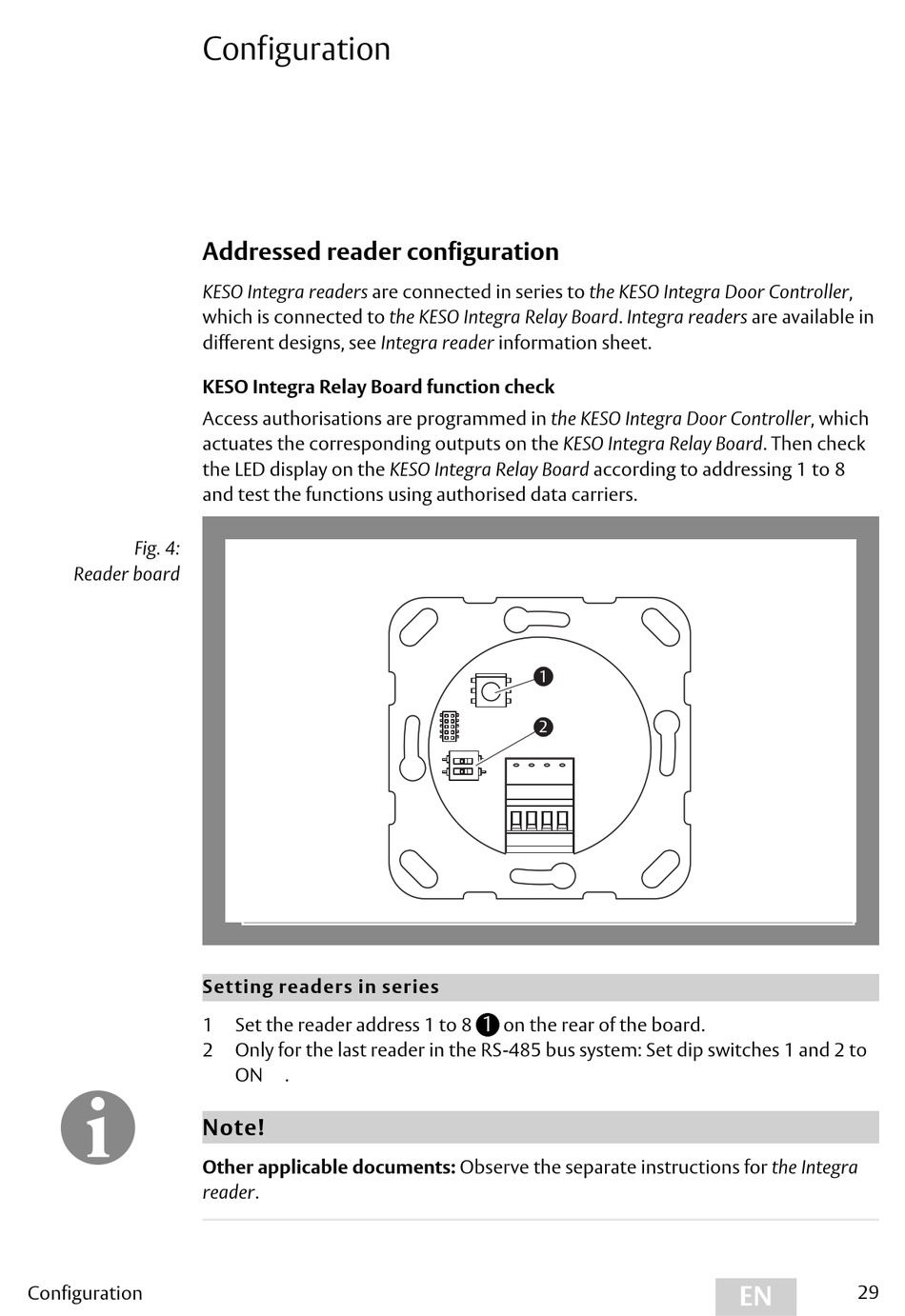

Fig. 4 :
Reader board
I

Configuration

Configuration

Addressed reader configuration

KESO Integra readers are connected in series to the KESO Integra Door Controller,
which is connected to the KESO Integra Relay Board. Integra readers are available in
different designs, see Integra reader information sheet.
KESO Integra Relay Board function check
Access authorisations are programmed in the KESO Integra Door Controller, which
actuates the corresponding outputs on the KESO Integra Relay Board. Then check
the LED display on the KESO Integra Relay Board according to addressing 1 to 8
and test the functions using authorised data carriers.
Setting readers in series
1 Set the reader address 1 to 8
2 Only for the last reader in the RS-485 bus system: Set dip switches 1 and 2 to
2
ON .
Note!
Other applicable documents: Observe the separate instructions for the Integra
reader.
1
2
1
on the rear of the board.
