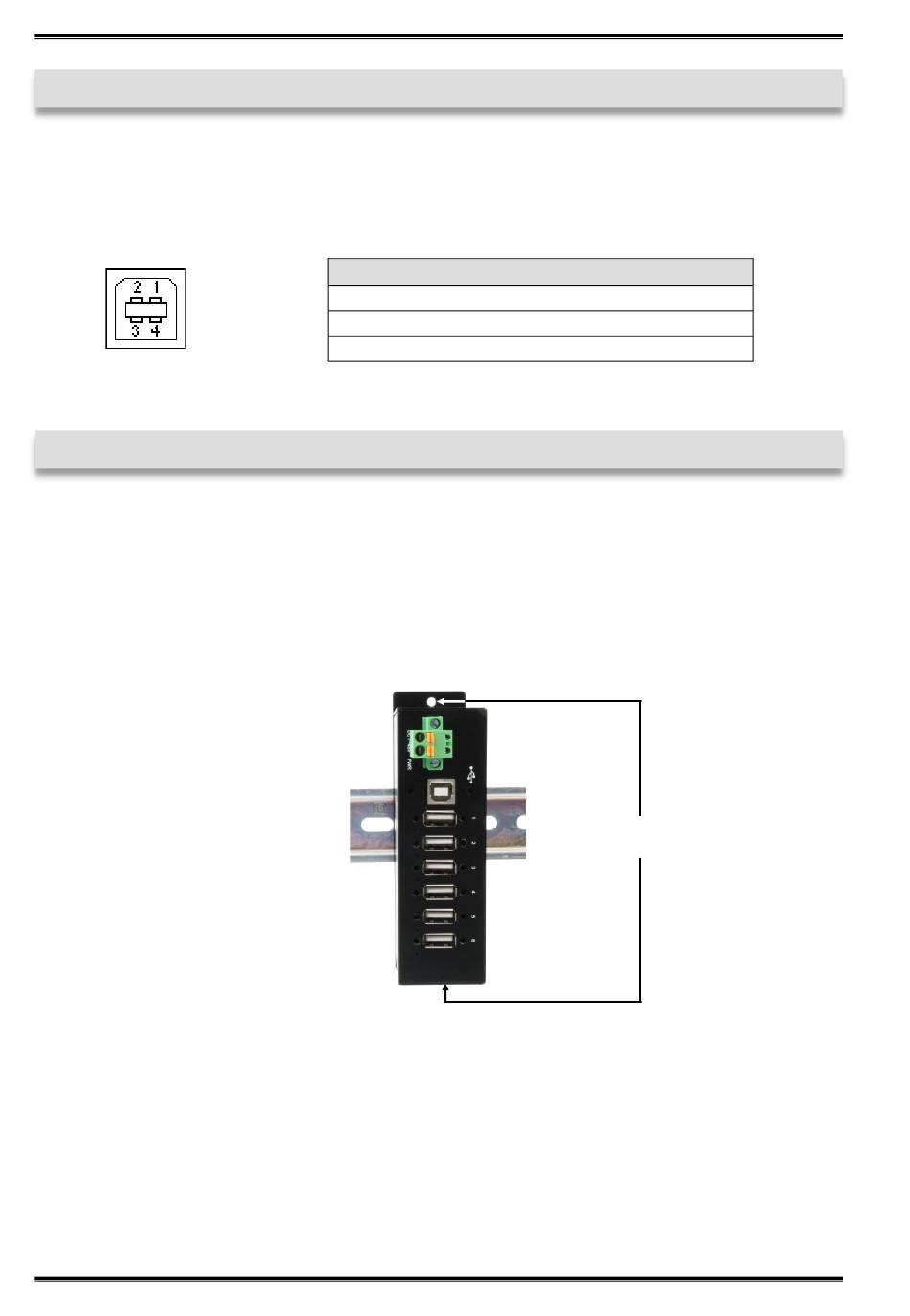

3. Layout & Connections
3.2 Connections
USB 2.0 B-Port:

4. Hardware Installation

Because there are large differences between PC's, we can give you only a general in-
stallation guide. Please refer your computer's reference manual whenever in doubt.
1. Install the EX-1596HMVS to the wall or to a DIN-Rail if required
2. Connect the USB cable to the USB B-Port at the Hub.
3. Connect the optional power supply into the Terminal Block at the Hub.
4. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
USB 2.0 B-Port
Pin Signal
1 VCC
2 DATA-
Holes for
Wall Installation
12
EX-1596HMVS
Pin Signal
3 DATA+
4 GND
Holes for
Wall Installation
