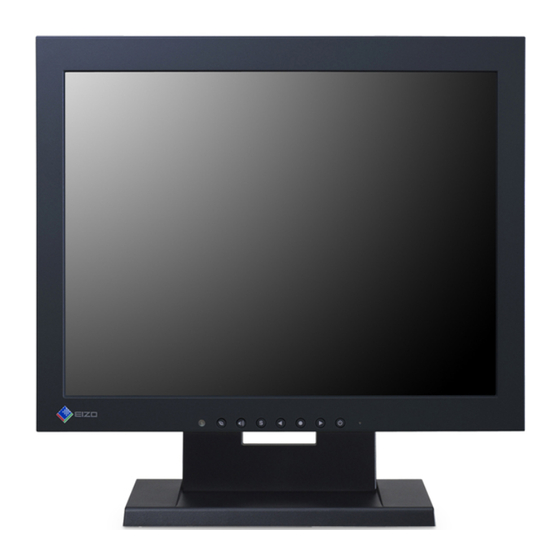

Inhaltszusammenfassung für Eizo DuraVision FDX1501
Seite 1
Setup Manual Important: Please read this Setup Manual and the User’s Manual stored (on the CD- ROM) carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference. Installationshandbuch Wichtig: Lesen Sie dieses Handbuch zur Einrichtung und das Benutzerhandbuch (auf der CD-ROM) aufmerksam durch, um sich mit der sicheren und effizienten Bedienung vertraut zu machen. Bewahren Sie dieses Handbuch zum späteren Nachschlagen auf. Manuel d’installation Important : Veuillez lire attentivement ce Manuel d’installation et le Manuel d’utilisation (inclus sur le CD-ROM) afin de vous familiariser avec ce produit et de l’utiliser efficacement et en toute sécurité. Veuillez conserver ce manuel pour référence ultérieure. 设定手册 重要事项: 请仔细阅读本设定手册和用户手册(储存在光盘上),以便掌握如何安全、 有效地使用本产品。请保留本手册,以备日后参考。...
Seite 2
EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
Seite 3
PRECAUTIONS IMPORTANT • To ensure personal safety and proper maintenance, please read carefully this section and the caution statements on the monitor. Location of the Caution Statements Example: FDX1501T WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice.
Seite 4
WARNING To avoid danger of suffocation, keep the plastic packing bags away from babies and children. Make sure the power cord meets the following requirements. This product does not include a power cord. Please provide separately a power cord which meets the requirements.
Seite 5
CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables when moving the unit. Moving the unit with the cord attached is dangerous. It may result in injury. When carrying the unit, grasp and hold it firmly by the bottom as shown in the illustration on the right.
Package Contents Check that all the following items are included in the packaging box. If any items are missing or damaged, contact your local dealer. Note • Please keep the packaging box and materials for future movement or transport of the monitor. • Monitor • EIZO LCD Utility Disk (CD-ROM) • Analog signal cable : MD-C87 • Setup Manual (this manual) • “For Users of Touch Panel LCD Monitor” (for FDX1501T only) • Clamper 2 pcs. • Stereo mini jack cable • Screws for fixing the clamper M4 × 14: 2 pcs. (Prepare a screwdriver.) • USB cable: MD-C93 (for FDX1501T only) Attention •...
Connecting Cables Attention • Check that the monitor and the PC are powered off. • When replacing the current monitor with this monitor, be sure to change the PC settings for resolution and vertical scan frequency to those that are available for this monitor. Refer to the compatible resolution table (page 1) before connecting the PC.
Seite 8
Displaying the Screen Press to turn on the monitor. The monitor’s power indicator lights up blue. Turn on the PC. The screen image appears. If an image does not appear, refer to “No picture” (page 8) for additional advice. If using the FDX1501T proceed with installation and calibration of the touch panel driver. Attention •...
Troubleshooting ● No picture If a problem still remains after applying the suggested remedies, contact your local dealer. Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected • Power indicator does not light. properly. • Turn off the main power, and then turn it on again a few minutes later. • Turn the main power switch on. • Press . • Power indicator is lighting blue. • Increase <Brightness>, <Contrast>, and/or <Gain>...
PDF-Datei auf CD-ROM (Erfordert die Installation von Adobe Reader.) Kein Teil dieses Handbuchs darf ohne die vorherige schriftliche Zustimmung von EIZO Corporation in irgendeiner Form oder mit irgendwelchen Mitteln – elektronisch, mechanisch oder auf andere Weise – reproduziert, in einem Suchsystem gespeichert oder übertragen werden.
VORSICHTSMASSNAHMEN Wichtig • Lesen Sie diesen Abschnitt und die Warnhinweise am Monitor sorgfältig durch, um Personensicherheit und richtige Wartung zu gewährleisten. Stelle der Warnungshinweise Z. B. FDX1501T VORSICHT Wenn das Gerät Rauch entwickelt, verbrannt riecht oder merkwürdige Geräusche produziert, ziehen Sie sofort alle Netzkabel ab, und bitten Sie Ihren Fachhändler um Rat. Der Versuch, mit einem fehlerhaften Gerät zu arbeiten, kann Feuer, einen elektrischen Schlag oder eine Beschädigung des Geräts verursachen.
Seite 12
VORSICHT Zur Vermeidung von Erstickungsgefahr bewahren Sie die Kunststoffverpackungstüten außer Reichweite von Säuglingen und Kleinkindern auf. Achten Sie darauf, dass das Netzkabel die folgenden Anforderungen erfüllt. Ein Netzkabel gehört nicht zum Lieferumfang dieses Produkts. Benutzen Sie bitte ein Netzkabel, dass die Anforderungen erfüllt.
Seite 13
ACHTUNG Tragen Sie das Gerät vorsichtig. Ziehen Sie das Netzkabel und andere Kabel ab, wenn Sie das Gerät tragen. Das Tragen des Geräts mit angeschlossenen Kabeln ist gefährlich. Sie können sich dabei verletzen. Halten Sie das Gerät beim Tragen gut an der Unterseite fest (siehe Abbildung rechts). Wird das Gerät fallen gelassen, besteht Verletzungsgefahr, und das Gerät kann beschädigt werden.
Verpackungsinhalt Prüfen Sie, ob sich alle der folgenden Gegenstände in der Verpackung befinden. Sollte einer der Gegenstände fehlen oder beschädigt sein, wenden Sie sich an Ihren Fachhändler. Hinweis • Heben Sie die Verpackung sowie die Verpackungsmaterialien für evtl. Transporte des Monitors gut auf. • Monitor • EIZO LCD Utility Disk (CD-ROM) • Analoges Signalkabel: MD-C87 • Installationshandbuch (das vorliegende Handbuch) • „For Users of Touch Panel LCD Monitor“ (nur für FDX1501T) • Kabelklemme 2 St. • Stereo-Kabel mit Klinkenstecker • Schrauben zum Fixieren der Kabelklemme M4 × 14: 2 St. (Sie benötigen dafür einen Schraubendreher.) • USB-Kabel: MD-C93 (nur für FDX1501T) Beachte •...
Kabel anschließen Beachte • Stellen Sie sicher, dass Computer und Monitor ausgeschaltet sind. • Wenn der vorhandene Monitor durch diesen Monitor ersetzt wird, müssen auf jeden Fall die PC-Einstellungen für die Auflösung und die vertikale Abtastfrequenz auf diejenigen umgeändert werden, die für diesen Monitor verfügbar sind. Ziehen Sie vor dem Anschließen des PCs die Tabelle Kompatible Auflösung (Seite 1) zu Rate.
Bild wiedergeben Drücken Sie , um den Monitor einzuschalten. Die Netzkontroll-LED des Monitors leuchtet auf (blau). Schalten Sie den Computer ein. Das Bildschirmbild erscheint. Falls kein Bild erscheint, siehe „Kein Bild“ (Seite 8) für weitere Hilfe. Bei Verwendung des FDX1501T fahren Sie mit der Installation und Kalibrierung des Touch-Panel-Treibers fort. Beachte •...
Fehlerbeseitigung ● Kein Bild Besteht ein Problem auch nach Anwendung aller angegebenen Lösungen, wenden Sie sich an einen Fachhändler in Ihrer Nähe. Problem Mögliche Ursache und Lösung 1. Kein Bild • Prüfen Sie, ob das Netzkabel ordnungsgemäß • Die Netzkontroll-LED leuchtet nicht. angeschlossen ist. • Schalten Sie das Hauptnetz aus und einige Minuten später wieder ein. • Schalten Sie den Hauptnetz-Schalter ein. • Drücken Sie .
EIZO Corporation n’est tenu à aucun engagement de confidentialité sauf en cas d’accord préalable passé avant la réception de ces informations par EIZO Corporation. Malgré tous les efforts déployés pour garantir la mise à jour des informations contenues dans ce manuel, veuillez noter que les caractéristiques techniques du moniteur EIZO sont...
PRECAUTIONS IMPORTANT • Pour votre sécurité comme pour la bonne utilisation de l’appareil, veuillez lire attentivement cette section ainsi que les indications de sécurité portées sur le moniteur. Emplacements des étiquettes de sécurité Ex. FDX1501T AVERTISSEMENT Si le moniteur fume, sent le brûlé ou émet des bruits anormaux, débranchez immédiatement tous les cordons secteur et prenez contact avec votre revendeur.
Seite 20
AVERTISSEMENT Gardez les sacs plastique d’emballage hors de portée des enfants pour éviter tout risque d’étouffement. Veuillez vous assurer que le cordon d’alimentation réponde aux exigences suivantes. Ce produit n’inclut pas le cordon d’alimentation. Veuillez fournir séparément un cordon d’alimentation répondant aux exigences.
Seite 21
ATTENTION Procédez avec précaution pour transporter l’appareil. Débranchez les câbles et cordon secteur avant de déplacer l’appareil. Il est dangereux de déplacer l’appareil avec son cordon branché. Vous risquez de vous blesser. Lors du transport de l’appareil, maintenez-le fermement par le bas, comme illustré...
Contenu de l’emballage Vérifiez que tous les éléments indiqués ci-dessous sont inclus dans le carton d’emballage. Contactez votre revendeur local si l’un des éléments est manquant ou endommagé. Remarque • Veuillez conserver le carton et les matériaux d’emballage pour les réutiliser lors d’un déplacement ultérieur du moniteur. • Moniteur • EIZO LCD Utility Disk (CD-ROM) • Câble de signal analogique: MD-C87 • Manuel d’installation (ce manuel) • « For Users of Touch Panel LCD Monitor » (pour FDX1501T seulement) • Serre-câble 2 pièces • Câble à mini-prise stéréo • Vis pour la fixation du serre-câble M4 × 14: 2 pièces (Préparez un tournevis.)
Branchement des câbles Attention • Vérifiez que le moniteur et le PC sont hors tension. • Lorsque vous remplacez le moniteur actuel par ce moniteur, veillez à modifier les réglages de votre ordinateur en fonction de la résolution et de la fréquence de balayage vertical propres à ce moniteur. Reportez-vous au tableau des résolutions compatibles (page 1) avant de brancher l’ordinateur.
Affichage de l’écran Appuyez sur pour mettre le moniteur sous tension. Le témoin de fonctionnement du moniteur s’éclaire en bleu. Mettez le PC sous tension. L’image affichée à l’écran apparaît. Si une image n’apparaît pas, reportez-vous à la section « Aucune image » (page 8) pour savoir comment procéder.
Dépannage ● Aucune image Si un problème persiste après application des corrections proposées, veuillez prendre contact avec votre revendeur local. Problème Cause possible et solution 1. Aucune image • Vérifiez que le cordon d’alimentation est • Le témoin de fonctionnement ne s’allume pas. correctement branché. • Coupez l’alimentation du moniteur, puis rétablissez- la quelques minutes plus tard. • Activez le commutateur d’alimentation principal. • Appuyez sur . • Le témoin de fonctionnement s’allume en bleu.
