Outdoor
Installation on I-Beams - Scoreboard installation
In order to make the installation easier, the anchor points (I), located on the top side of the modules can be used (NB: Anchor points = insert
holes in aluminium frame). If you want to use them to lift or install the modules, replace the black plastic screws by M6x40 eyescrews
(closed rings, not supplied). Caution: the black plastic screws should not be used to lift or fix the modules (they are only dedicated to protect
the scoreboard from water intrusion).
Each module is noted with a sticker Mxx. Please strictly follow the below instructions.

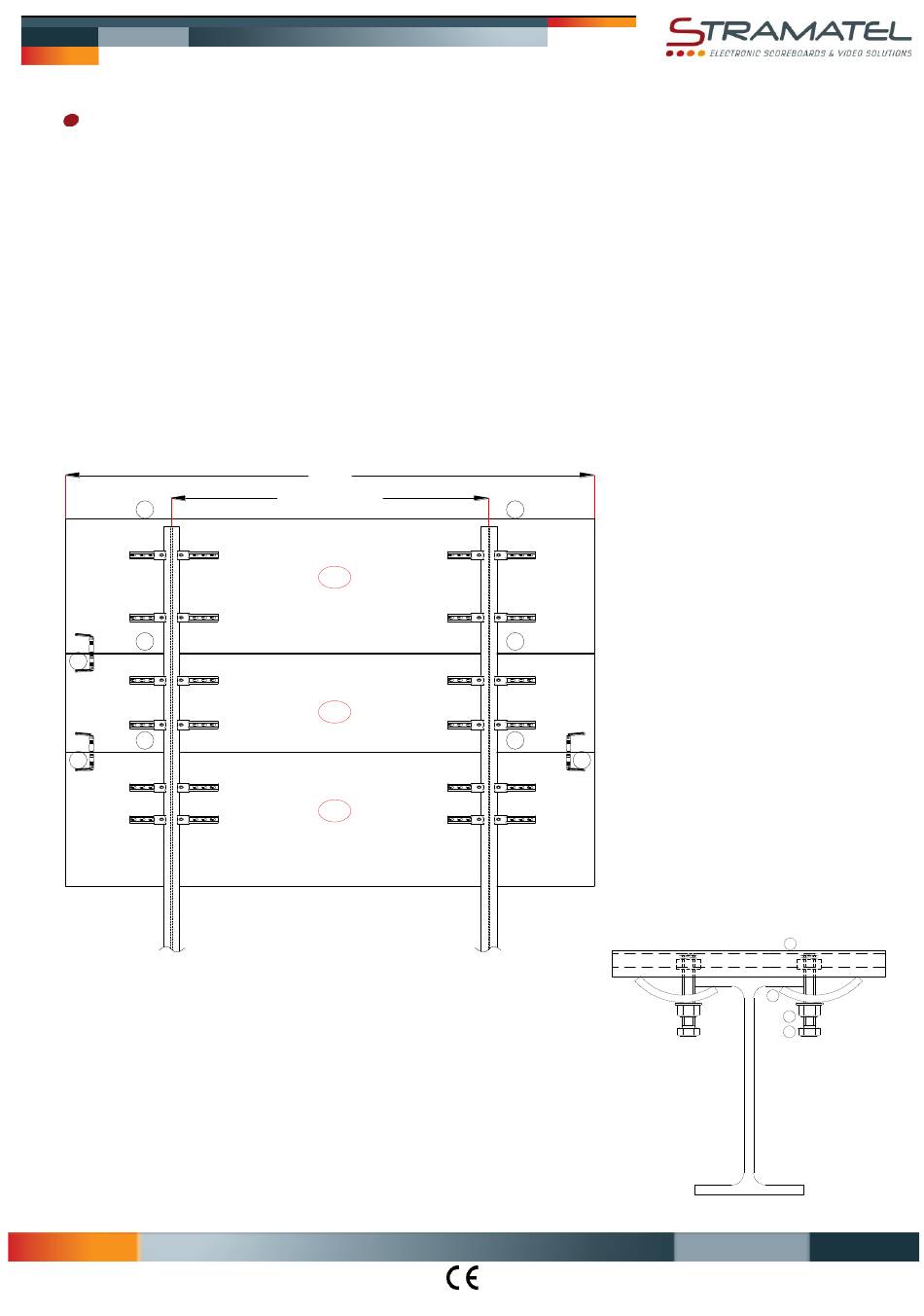

Lift the module M1 and lean it against the 2 vertical 180x90mm I-Beams. Make sure the module M1 is in a horizontal position.
On each fastening rail, move the clamps as close to the I-beams as possible (the screws should imperatively touch the I-Beam to make sure
the clamps are properly fixed). Tighten the screws (V) on the fastening rails (G).
Tighten the lock nuts (E) to secure the clamps (D) on each I-Beam
Lift the module M2 above the module M1 and fix it on the I-Beams as previously instructed for the installation of the module M1.
Lift the module M3 above the module M2 and fix it on the I-Beams as previously instructed for the installation of the module M1.
Put the black plastic screws back into anchor points (I) of the module M3.
Plug in the connectors (Y) between the modules.
I
I
Y
I
Y
ZI de Bel Air 44850 LE CELLIER FRANCE
IA452FRCAD-IM_F - Installation FRCAD
3000
1800 ±250
M3
M2
M1
I
I
I
Y
stramatel@stramatel.com Tél. +33 (0)2 40 25 46 90
G
D
E
V
IPN
180x90
