Outdoor
Installation on I-Beams - Before installation
The electronic elements controlling the luminous display are mounted on extractable racks (R). In order to be able to carry out any
maintenance, a clear space of at least 30 cm is necessary for the extraction of the racks. Attention: installation must be performed by
qualified staff.

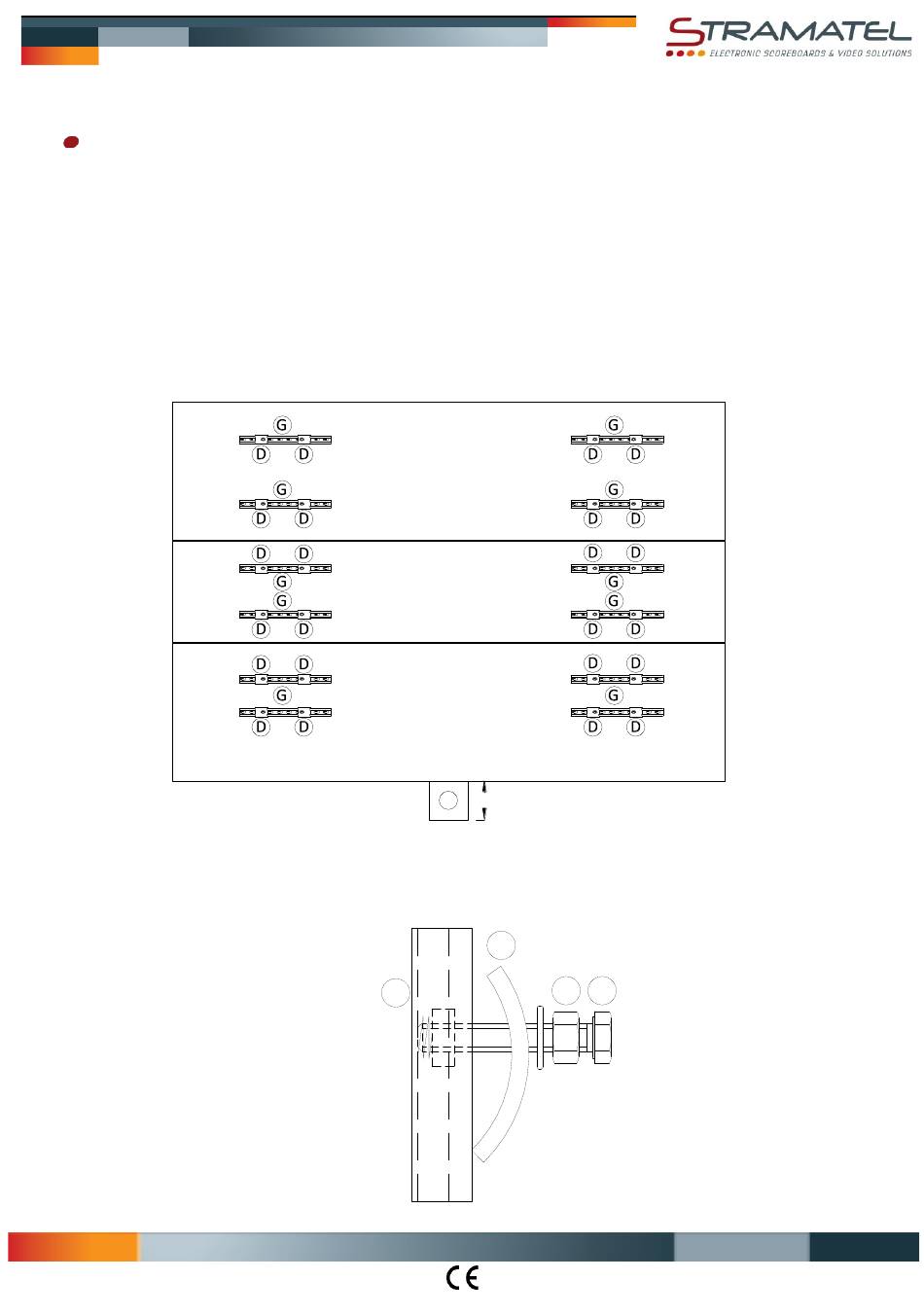

The scoreboard will be fixed onto 2 vertical 180x90mm I-Beams with supplied fixing clamps (D).
Insert 2 M10 spring nuts in each fastening rail (G).
Fix 2 clamps (D) on each fastening rail (G) as mentioned below. Tighten the screws (V), then unscrew them by quarter a turn (as a first step,
the clamps should not be fully tightened).
300
R
Dimensions en mm
D
E V
G
