User guide
1

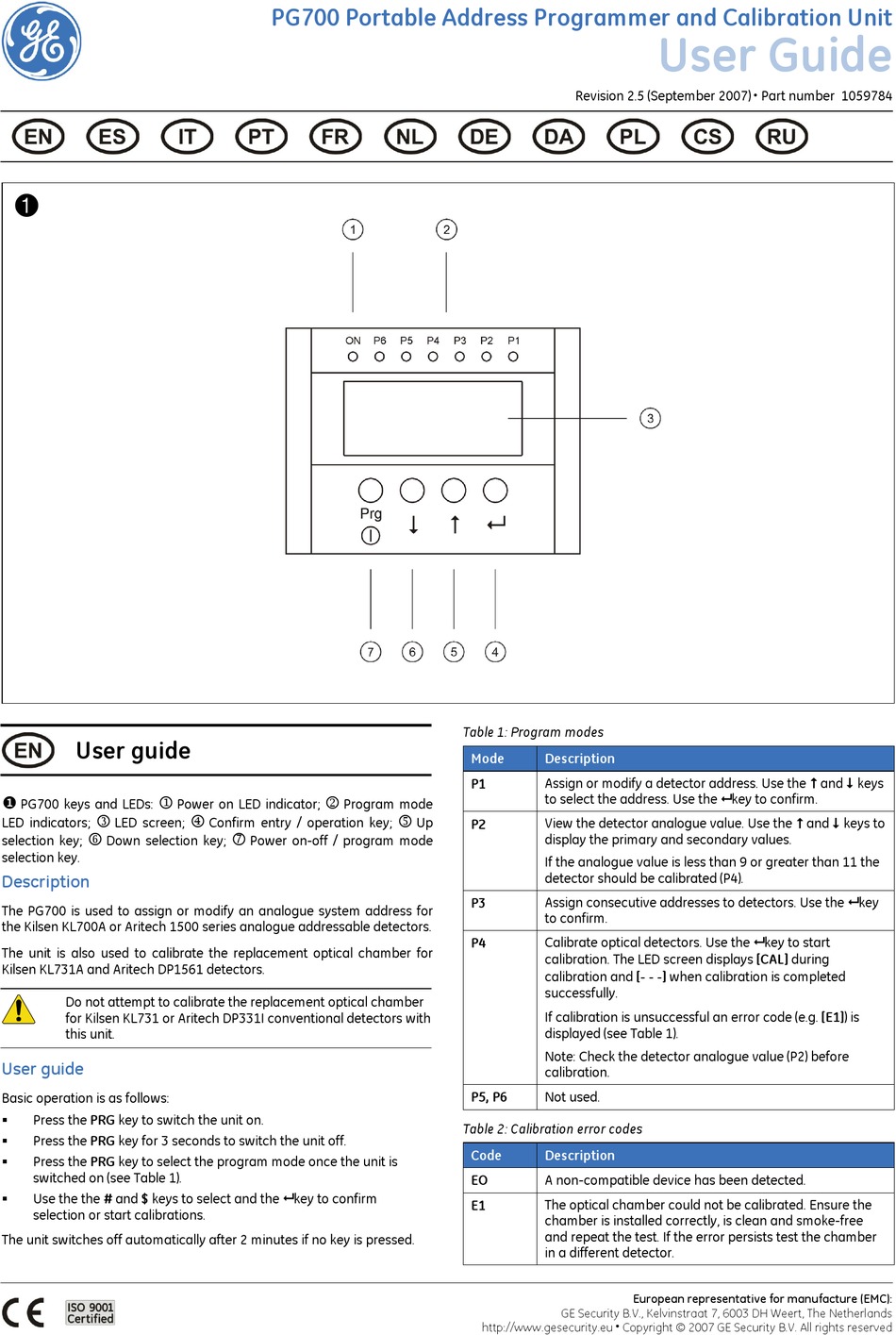

PG700 keys and LEDs:
3
LED indicators;
LED screen;
6
selection key;
Down selection key;
selection key.
Description
The PG700 is used to assign or modify an analogue system address for
the Kilsen KL700A or Aritech 1500 series analogue addressable detectors.
The unit is also used to calibrate the replacement optical chamber for
Kilsen KL731A and Aritech DP1561 detectors.
Do not attempt to calibrate the replacement optical chamber
for Kilsen KL731 or Aritech DP331I conventional detectors with
this unit.
User guide
Basic operation is as follows:
Press the PRG key to switch the unit on.
Press the PRG key for 3 seconds to switch the unit off.
Press the PRG key to select the program mode once the unit is
switched on (see Table 1).
Use the the # and $ keys to select and the key to confirm
selection or start calibrations.
The unit switches off automatically after 2 minutes if no key is pressed.
PG700 Portable Address Programmer and Calibration Unit
2
Power on LED indicator;
Program mode
4
Confirm entry / operation key;
7
Power on-off / program mode
Table 1: Program modes
Mode
Description
Assign or modify a detector address. Use the and keys
P1
to select the address. Use the key to confirm.
5
Up
View the detector analogue value. Use the and keys to
P2
display the primary and secondary values.
If the analogue value is less than 9 or greater than 11 the
detector should be calibrated (P4).
Assign consecutive addresses to detectors. Use the key
P3
to confirm.
Calibrate optical detectors. Use the key to start
P4
calibration. The LED screen displays [CAL] during
calibration and [- - -] when calibration is completed
successfully.
If calibration is unsuccessful an error code (e.g. [E1]) is
displayed (see Table 1).
Note: Check the detector analogue value (P2) before
calibration.
Not used.
P5, P6
Table 2: Calibration error codes
Code
Description
EO
A non-compatible device has been detected.
The optical chamber could not be calibrated. Ensure the
E1
chamber is installed correctly, is clean and smoke-free
and repeat the test. If the error persists test the chamber
in a different detector.
GE Security B.V., Kelvinstraat 7, 6003 DH Weert, The Netherlands
http://www.gesecurity.eu
User Guide
Revision 2.5 (September 2007)
European representative for manufacture (EMC):
•
Copyright © 2007 GE Security B.V. All rights reserved
Part number 1059784
•
