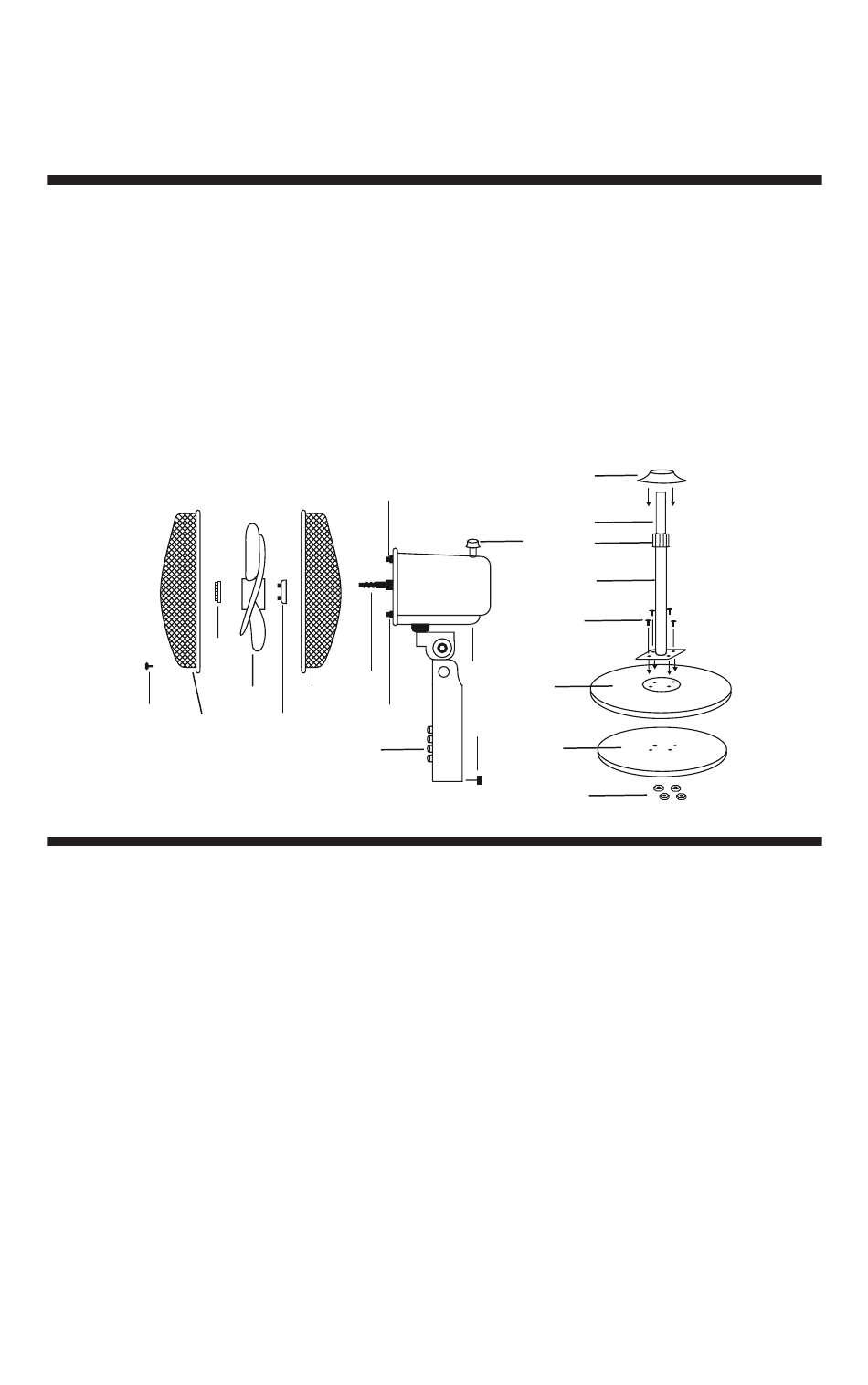

1. Front grille
2. Lock ring of the fan
3. Safety screw of the fan
4. Fan
5. Lock ring of the back grille
6. Back grille
7. Motor shaft
8. Oscillation knob
9. Motor
10. Control panel
3
1
1. Place the weight of the base (18) under the base (17) so that the holes
match.
2. Place the base rod (15) on the base (17) so that the holes match.
3. Insert the fixing screws (16) in the 4 holes of the base rod (15).
4. Turn everything upside down, making sure to keep the screws (16)
in their place. Insert the bolts (19) on the screws making sure to tighten
them firmly. Turn over the base again, with the weight and the base rod
fixed.
5. Unscrew the height adjustment knob (14) from the base rod (15) and
insert the small decorative base (12).
6. Pull the adjustment rod (13) out from the base rod (15) then tighten the
height adjustment knob (14) on the base rod (15).
7. Loosen the screw of the main body (11).
8. Insert the main body on the adjustment rod (13). Tighten the screw
(11) to secure it.
10
Technical informations
2
7
4
6
5
10
Assembling
11. Main body screw
12. Small decorative base
13. Adjustment rod
14. Height adjustment knob
15. Base rod
16. Screws (4 pieces)
17. Plastic base
18. Weight for the plastic base
19. Bolts
A-B. Locking pin for the rear
grille
B
8
9
17
A
11
18
12
13
14
15
16
19
