MOUNTING

Thanks to the supplied U-bracket, the speaker can be installed in a suitable location on a level surface.
Important safety notice: Overhead mounting requires extensive experience, including the calculation of the load limit values of the
installation material and regular safety inspection of all installation materials and speakers. If you do not have these qualifications,
do not attempt to perform an installation yourself. Refer instead to a qualified professional.

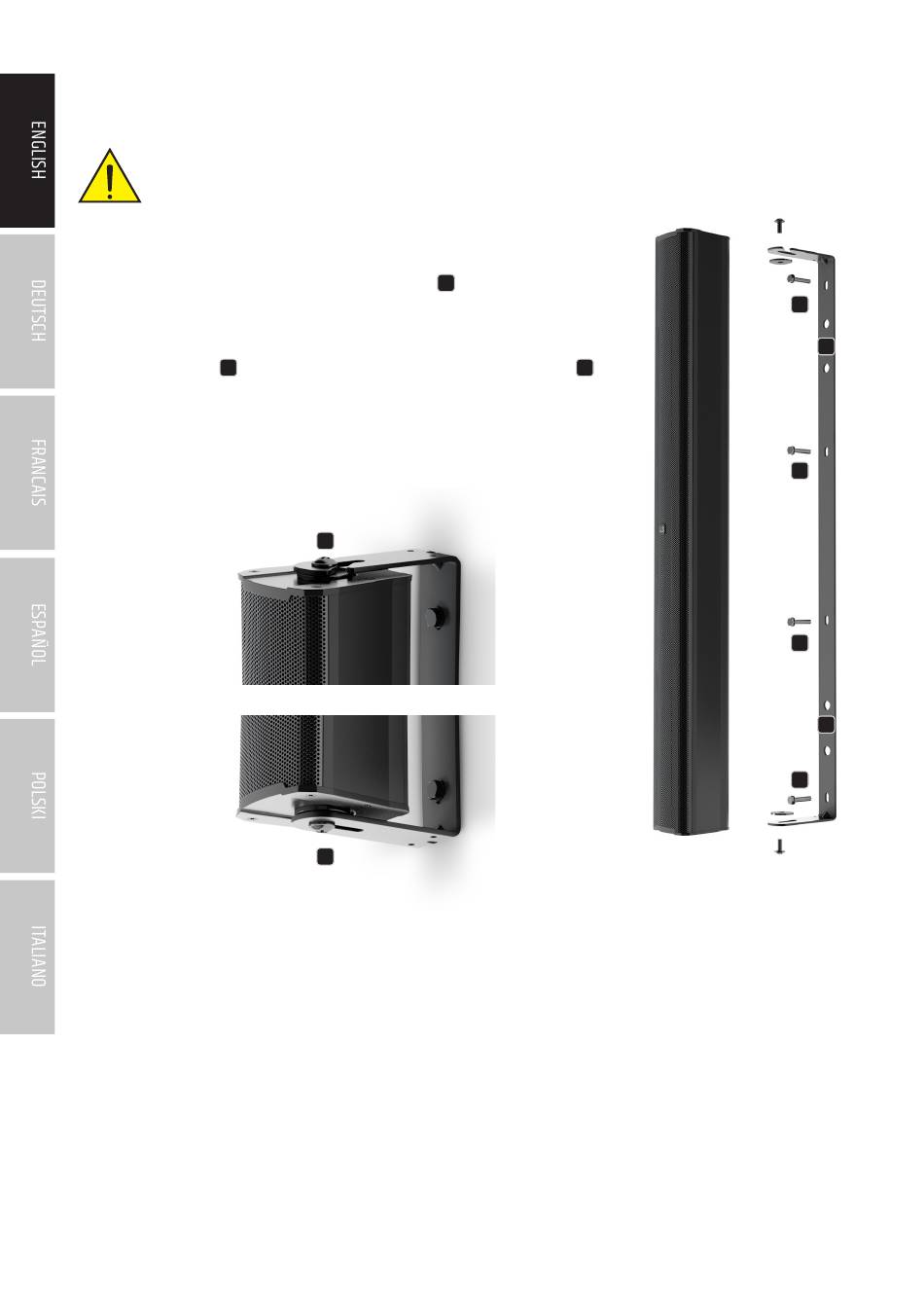

The U-bracket is supplied installed to the column speaker. Loosen and remove the M8 screws on the
top and bottom of the speaker and remove the bracket and the washers from the speaker. Screw
the U-bracket (in a suitable position) to a load-bearing wall or ceiling
plugs etc. and ensure secure installation. (9 mm hole diameter, screws, plugs etc. not supplied.) Lift
the speaker into the bracket so that the thread locations in the speaker and the holes in the bracket
are aligned. Use the previously removed M8 screws and washers as shown in the illustrations (place
washers between the bracket and the speaker), adjust the dispersion angle as desired and tighten the
screws with a suitable tool B . The U-bracket is also equipped with feed holes for signal cables
Tip: Install the U-bracket on a wall with the slanted recess in the slot facing upwards. Place a washer on
the mounting hole on the top end of the speaker and partially screw a suitable screw into the thread.
Lift the speaker into the U-bracket and insert the installation screw into the slanted recess in the slot,
then pull the speaker forwards as far as possible. Now a washer and installation screw can be easily
positioned and secured at the bottom of the speaker.
6
A . Use suitable screws and
B
B
C .
A
C
A
A
C
A
