EFE400M Handbook

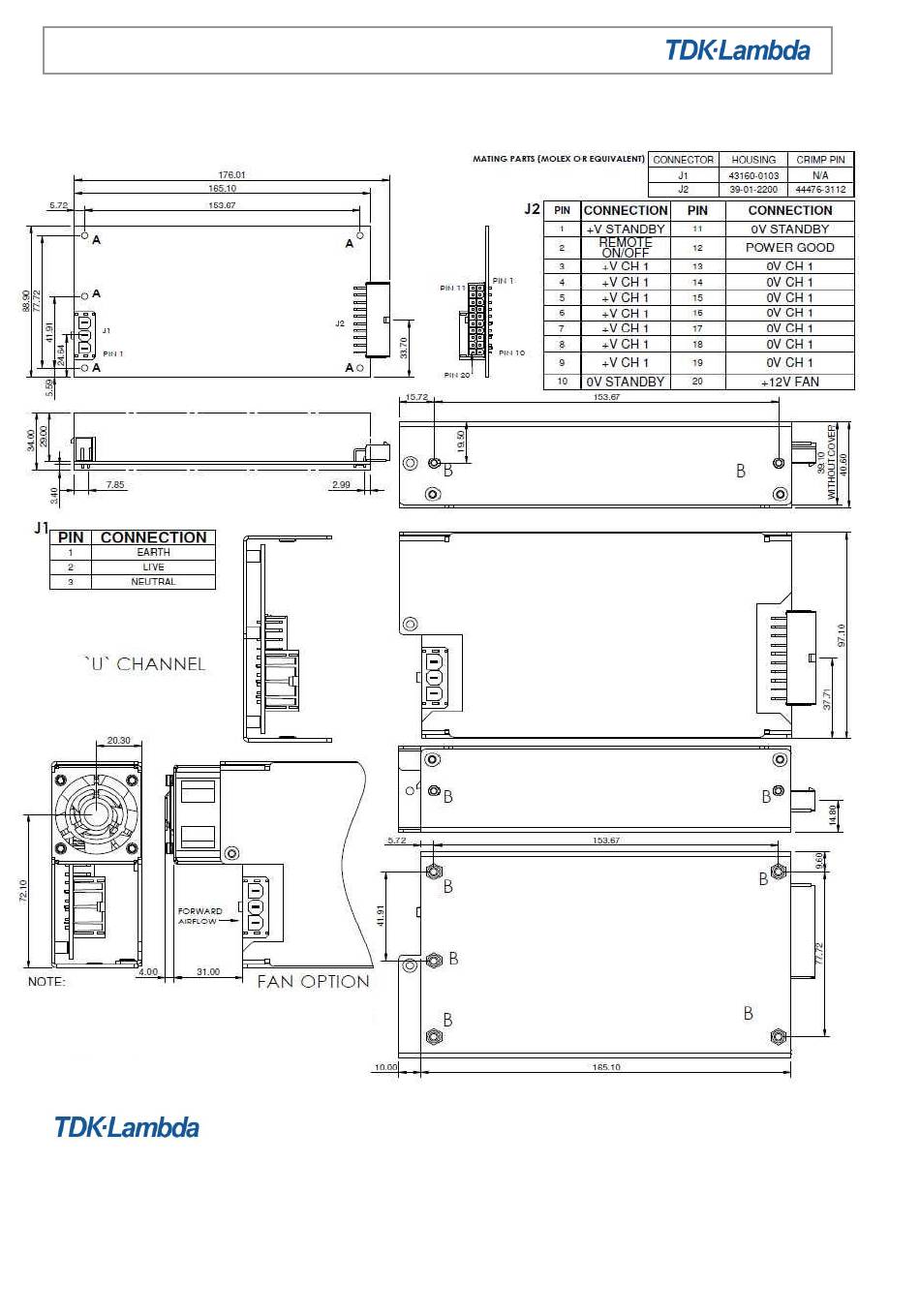

EFE400M Horizontal Output Connector with Sabre Input Connector, Outline and Connections
A 5 OFF HOLES Ø3.5mm CLEARANCE FOR M3 FIXINGS.
B 9 OFF FIXING HOLES FOR M3, MAXIMUM PENETRATION
4.5mm, MAXIMUM TORQUE 0.5-0.6Nm.
ALL TOLERANCES +/-0.5mm.
