DESCRIPTION OF THE DEVICE

Features

Handy panel with QCL LEDs in RGB+UV, with DMX
• Compact and versatile
• Equipped with nine 4 W QCL LEDs in red, green, blue and UV
• Flicker-free projection
• 4, 6 or 9 DMX channels selectable
• Functions: color presets, stepless RGB+UV color mixture, color changes with diverse settings, dimmer,
strobe effect with variable speed, sound-control via built-in microphone, Master/Slave operation
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Addressing and setting via Control Board with 4-digit LED display and four operating buttons
• Additional controlling possibility via the EUROLITE IR-20 remote control, included in delivery
• Easy installation
• Hängende oder stehende Montage möglich
• Locking possibility at the brackets
• Ready for connection via power cord with safety plug
• Switch-mode power supply for operation between 100 and 240 volts
• DMX512 control possible via any commercial DMX controller

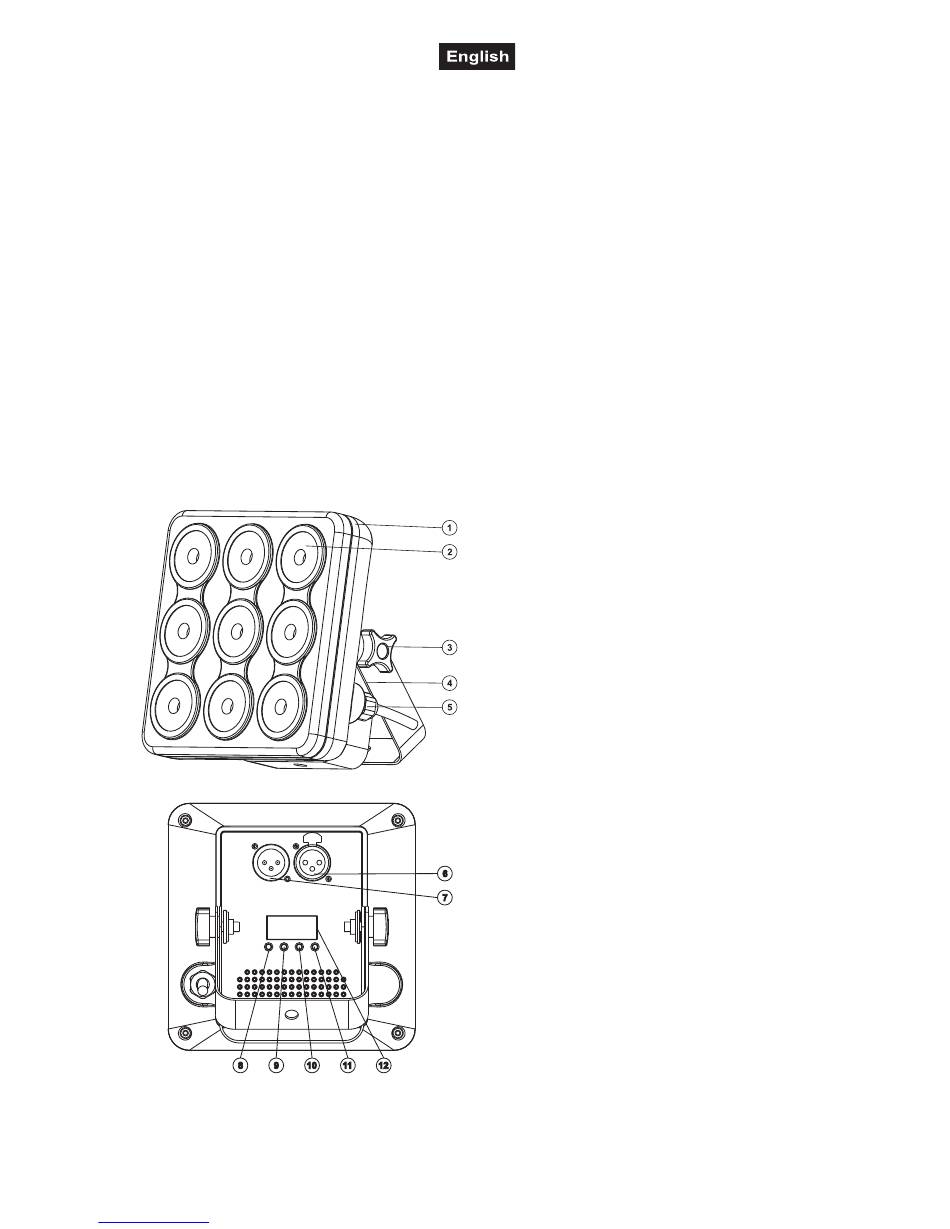

Overview

Downloaded from www.Manualslib.com manuals search engine
(1) Housing
(2) Lens/LED
(3) Fixation screw
(4) Floor stand/mounting bracket
(5) Power supply
(6) DMX input
(7) DMX output
(8) Menu button
(9) Enter button
(10) Up button
(11) Down button
(12) LED Display
