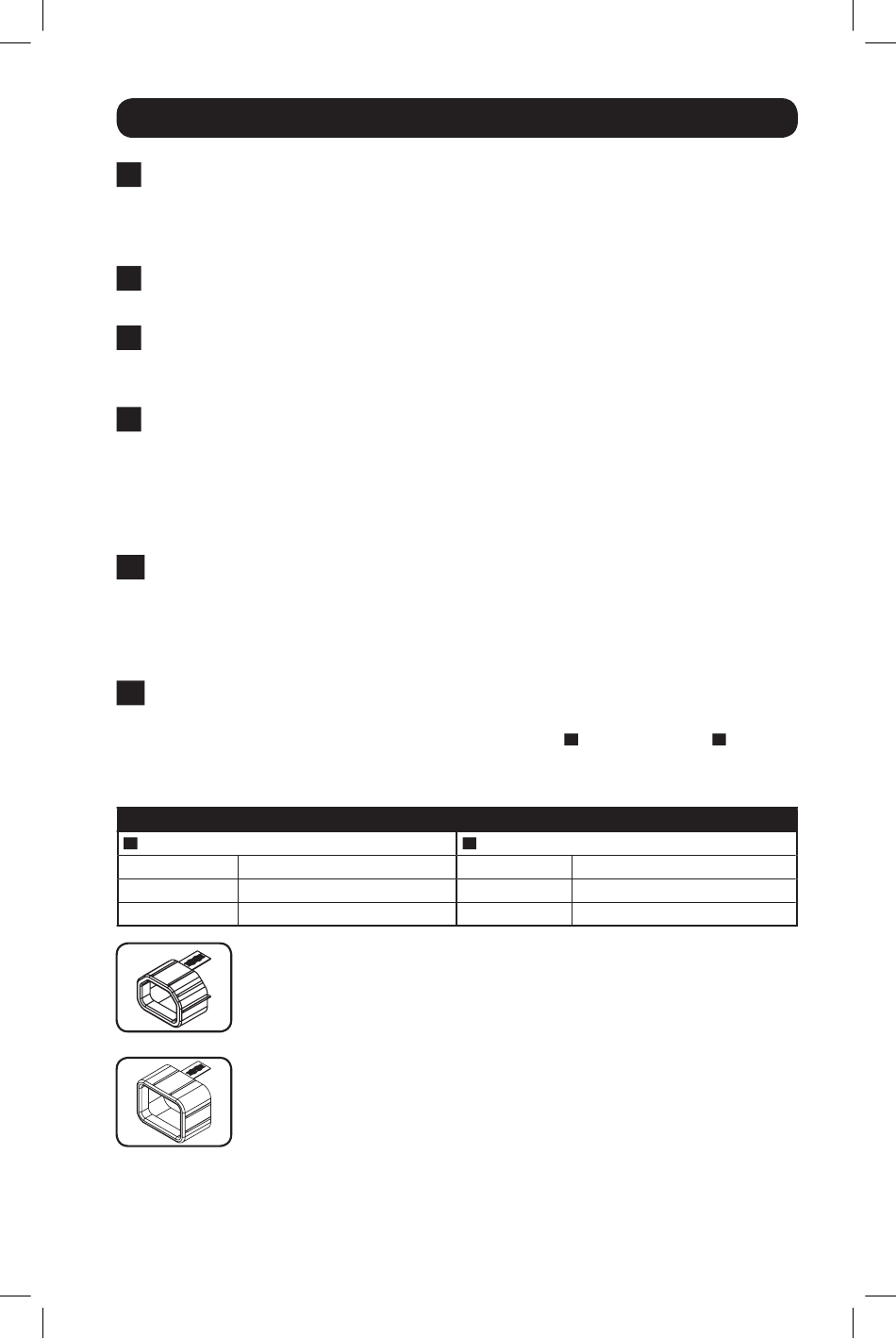

Features
6
Output Circuit Breakers: Two circuit breakers protect equipment connected to
each load bank against overloads. If a breaker trips, the circuit is overloaded and
you need to reduce the load connected to the circuit breaker's load bank. Press
the circuit breaker button to reset and restore power.
7
Ground Connection: Allows you to connect a user-supplied ground wire between
the PDU and any equipment that requires a chassis ground.
8
Cord Retention Bracket (Optional Installation): When installed on the PDU,
cord retention brackets provide secure attachment points for connected
equipment power cords.
9
ENVIROSENSE Port (PDUMH30ATNET, PDUMH30HVATNET &
PDUMH32HVATNET): Use this port to connect a Tripp Lite ENVIROSENSE
environmental sensor to provide remote temperature/humidity monitoring and a
dry contact interface to control and monitor alarm, security and telecom devices.
Visit www.tripplite.com for ordering information. Note: Do not connect a keyboard
or mouse to this port.
10
Configuration Port (PDUMH30ATNET, PDUMH30HVATNET &
PDUMH32HVATNET): Use this port to provide a direct terminal connection to a
computer with a terminal emulation program. A serial cable (part number
73-1025) is included with the PDU. If you need to order a replacement cable,
visit www.tripplite.com
11
Network Interface (PDUMH30ATNET, PDUMH30HVATNET &
PDUMH32HVATNET): Use this RJ-45 jack to connect the PDU to the network
with a standard Ethernet patch cable. The Link LED
several operating conditions, as shown in the table below. This port is not
compatible with PoE (Power Over Ethernet) applications.
Link LED Color
A
Off
Flashing Amber
Flashing Green
18-11-326-93323D.indb 11
continued
Network Operating Conditions
No Network Connection
100 Mbps Network Connection
10 Mbps Network Connection
C14 Plug-Lock Insert Sleeve (Optional): Use the included plastic
sleeves to secure C13 power cords to C14 inlets. Fit the sleeve over
the end of the cord, making sure the pull-tabs remain outside the
cord and the fit is secure. To unplug equipment properly, grip both
the cord and the insert's tabs at the same time and pull.
C20 Plug-Lock Insert Sleeve (Optional): Use the included plastic
sleeves to secure C19 power cords to C20 inlets. Fit the sleeve over
the end of the cord, making sure the pull-tabs remain outside the
cord and the fit is secure. To unplug equipment properly, grip both
the cord and the insert's tabs at the same time and pull.
and Status LED
A
Status LED Color
B
Off Card Not Initialized
Steady Green Card Initialized and Operational
Flashing Amber Error - Card Not Initialized
11
indicate
