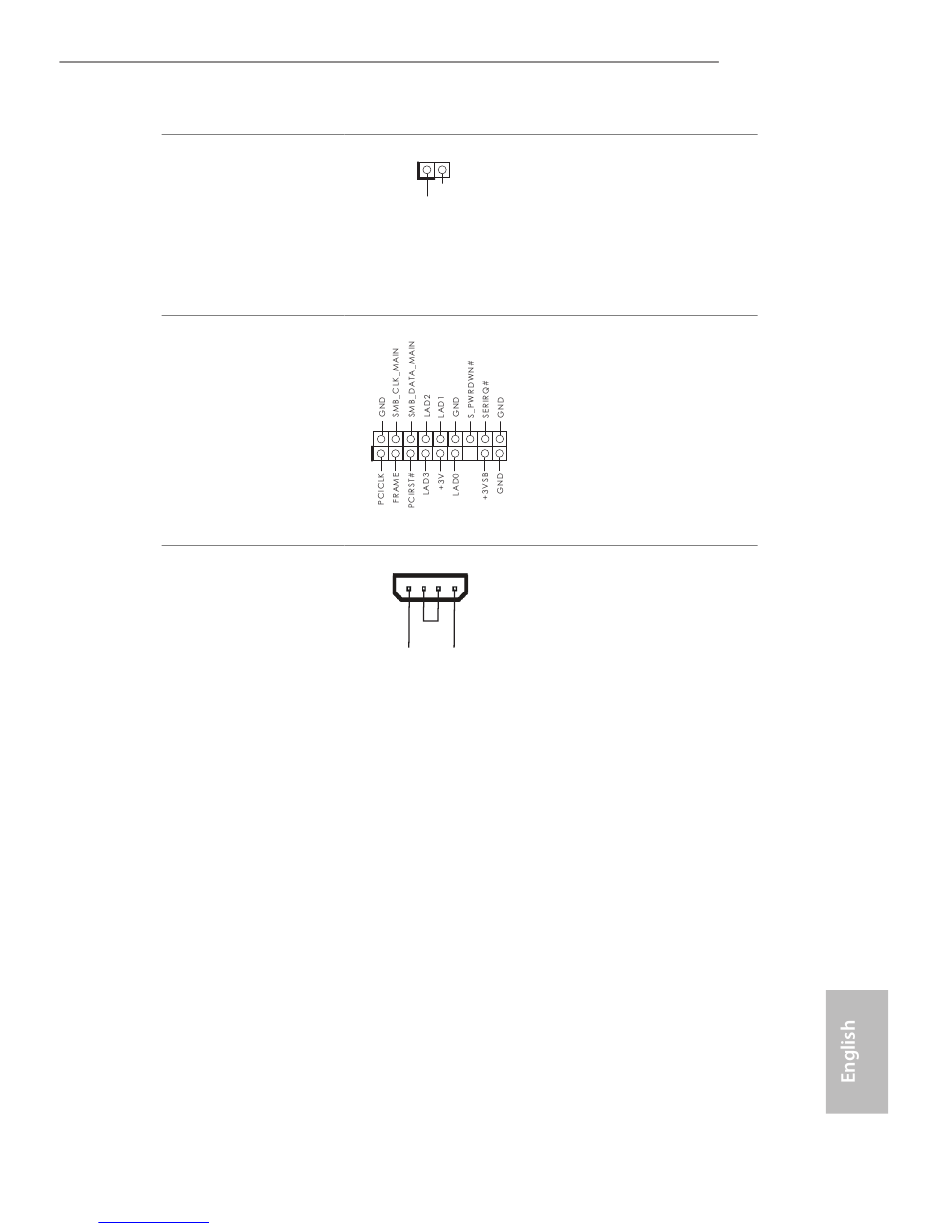

Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 21)
TPM Header
(17-pin TPMS1)
(see p.1, No. 22)
PCIe Power Connector
(4-pin PCIE_PWR1)
(see p.1, No. 27)
Downloaded from www.Manualslib.com
1
+12V
manuals search engine
This motherboard supports
1
CASE OPEN detection feature
GND
Signal
that detects if the chassis cove
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
This connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certificates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Please connect a 4 pin molex
power cable to this connector
when more than three graphics
GND
cards are installed.
DETECT
Z170 Pro4S
