A
C
B

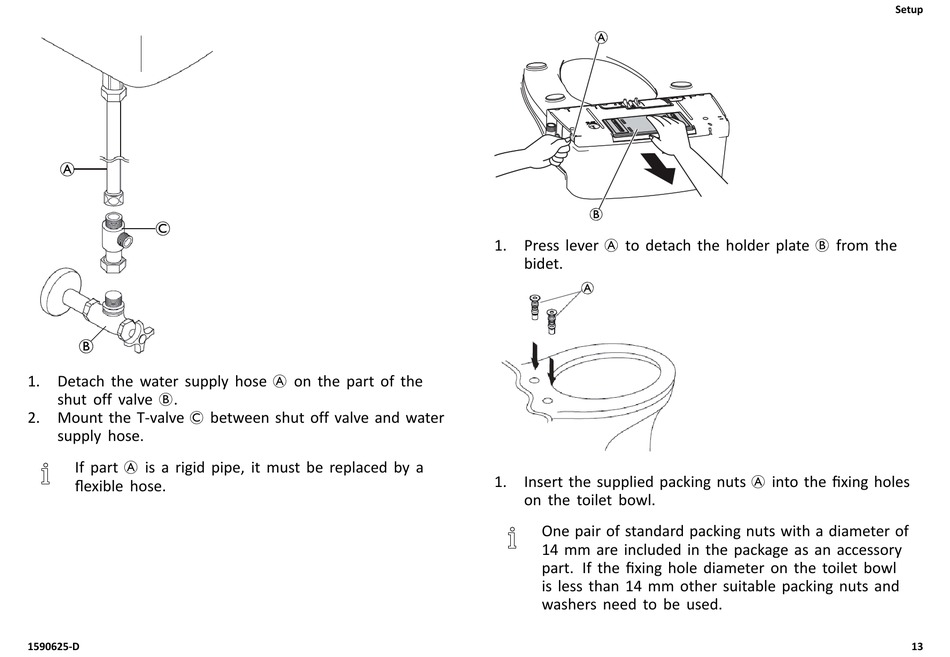

1. Detach the water supply hose A on the part of the
shut off valve B.
2. Mount the T-valve C between shut off valve and water
supply hose.
If part A is a rigid pipe, it must be replaced by a
flexible hose.
1590625-D
A
B
1. Press lever A to detach the holder plate B from the
bidet.
A
1. Insert the supplied packing nuts A into the fixing holes
on the toilet bowl.
One pair of standard packing nuts with a diameter of
14 mm are included in the package as an accessory
part. If the fixing hole diameter on the toilet bowl
is less than 14 mm other suitable packing nuts and
washers need to be used.
Setup
13
