Installation in the eurorack

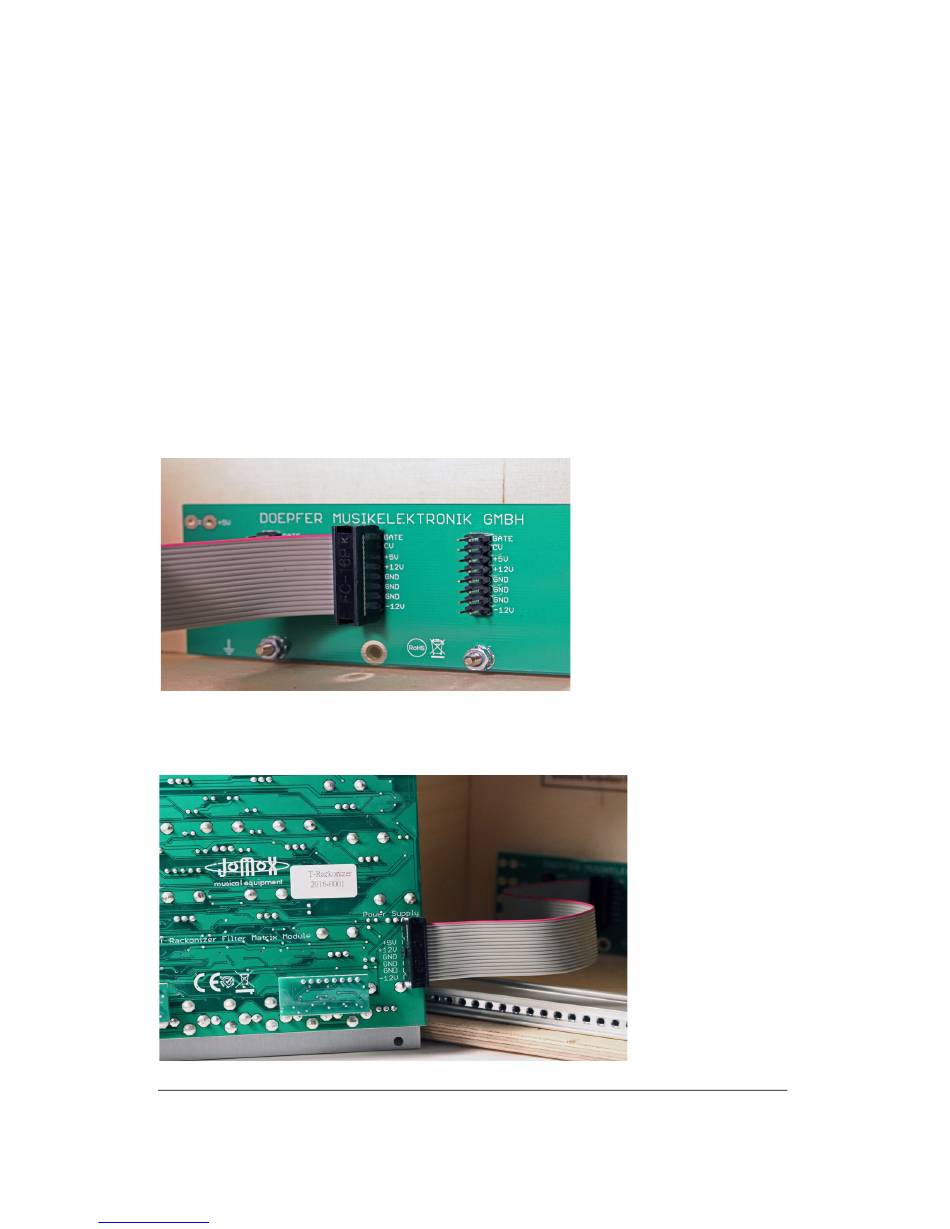

Please connect the supplied ribbon cable to the eurorack system bus rails
as shown on the pictures. The module needs +/-12 Volts at a supply
current of maximum 130mA on +12V and about 70mA on -12 Volts. The
optional 5 Volts and the CV/Gate on the A-100 Doepfer bus are both not
wired inside the Jomox module and not needed.
Other 10 pin systems may be used as well if only the lower part of the 16
pin connector is connected.
Please pay attention for the position of the voltages and the ground pins!
The printed voltages must match, please check the wires again and
make sure no pin is left or bent.
There are protection diodes inside the modules but please take extra care
to protect the rack and the module!
Jomox T-Rackonizer euro rack supply connector. Please connect the power
supply of the eurorack system bus here.
