Quick Start

To attach the MultiSync
these instructions:
1. Turn off the power to your computer.
If you are using the signal cable, continue to Step 2.
If you are using a BNC cable, please skip to Step 3.
NOTE: BNC cables may be purchased at your local electronics store.

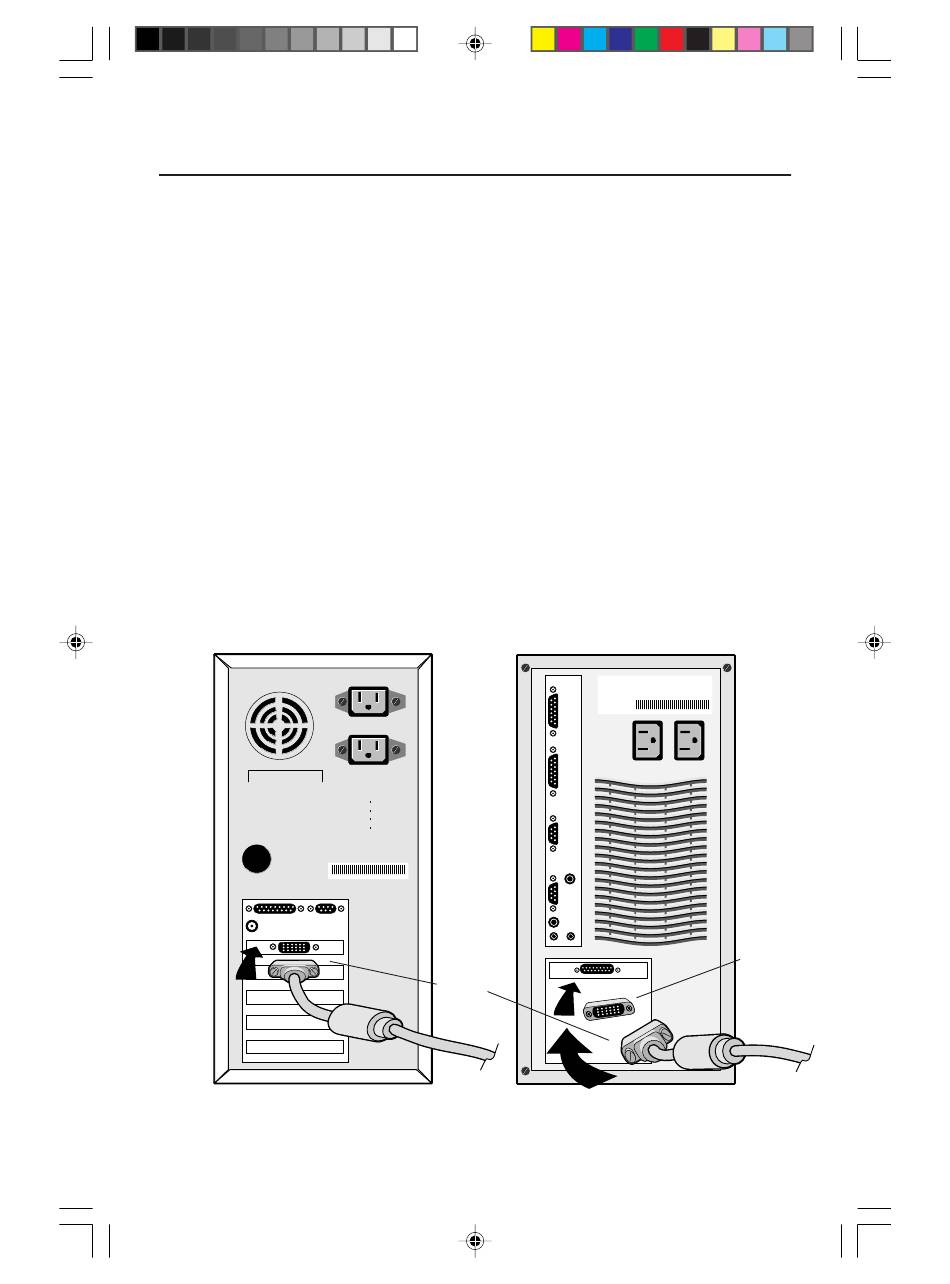

2. For the PC: Connect one end of the 15-pin mini D-SUB signal cable
to the connector of the display card in your system (Figure A.1) and the other end to
the back of the monitor (Figure A.2). Tighten all screws. Proceed to Step 4.
For the Mac: Connect the Macintosh cable adapter to the computer (Figure B.1).
Attach one end of the 15-pin mini D-SUB signal cable to the Macintosh cable adapter
(Figure B.1) and the other end to the back of the monitor (Figure B.2). Tighten all
screws. Proceed to Step 4.
3. Connect the BNC cable to the appropriate connectors on the back of the monitor.
Connect the red BNC cable to the BNC connector on the monitor labeled R, the green
BNC cable to the BNC connector labeled G (/Sync), the blue BNC cable to the BNC
connector labeled B. If you have a fourth BNC connector (Composite Sync), connect it to
the BNC connector on the monitor labeled HS/CS. If you have a fifth BNC connector
(Vertical Sync), connect it to the BNC connector on the monitor labeled VS (Figure C.1).
NOTE: Incorrect cable connections may result in irregular operation or damage
display components.
