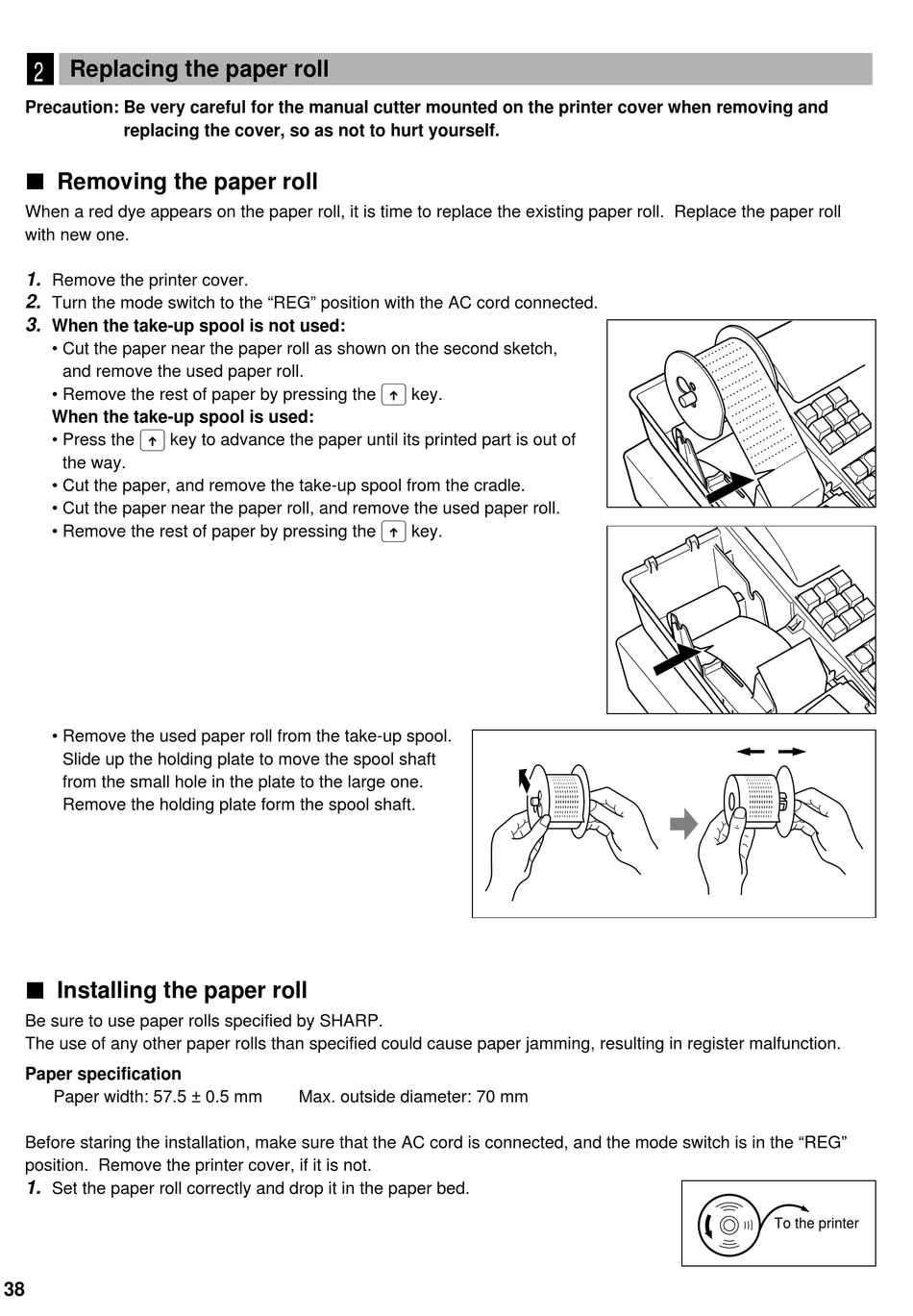

Replacing the paper roll

2
Precaution: Be very careful for the manual cutter mounted on the printer cover when removing and
replacing the cover, so as not to hurt yourself.
Removing the paper roll
When a red dye appears on the paper roll, it is time to replace the existing paper roll. Replace the paper roll
with new one.
1.
Remove the printer cover.
2.
Turn the mode switch to the "REG" position with the AC cord connected.
3.
When the take-up spool is not used:
• Cut the paper near the paper roll as shown on the second sketch,
and remove the used paper roll.
• Remove the rest of paper by pressing the
When the take-up spool is used:
á
• Press the key to advance the paper until its printed part is out of
the way.
• Cut the paper, and remove the take-up spool from the cradle.
• Cut the paper near the paper roll, and remove the used paper roll.
• Remove the rest of paper by pressing the
• Remove the used paper roll from the take-up spool.
Slide up the holding plate to move the spool shaft
from the small hole in the plate to the large one.
Remove the holding plate form the spool shaft.
Installing the paper roll
Be sure to use paper rolls specified by SHARP.
The use of any other paper rolls than specified could cause paper jamming, resulting in register malfunction.
Paper specification
Paper width: 57.5 ± 0.5 mm
Before staring the installation, make sure that the AC cord is connected, and the mode switch is in the "REG"
position. Remove the printer cover, if it is not.
1.
Set the paper roll correctly and drop it in the paper bed.
38
á
key.
á
key.
Max. outside diameter: 70 mm
To the printer
