7.4 Preparatory work before
installation
CAUTION! Device installation and
maintaining must be performed by
specialist technical staff only.
Use appropriate tools for the installation.
The particular nature of the site where the
device is to be installed may mean special
tools are required for installation.
The product must be fastened with suitable
equipment. The fastening means must
guarantee mechanical sealing when a force
equal to at least 4 times the weight of the
device is applied.
Choose an installation surface that is
strong enough to sustain the weight of
the device, also bearing in mind particular
environmental aspects, such as exposure to
strong winds.
It should be installed so that no one can be
hit by moving parts. It should be installed
so that moving parts cannot hit other
objects and create hazardous situations.
Make sure the appliance is securely
anchored before supplying power.
For technical services, consult only and
exclusively authorized technicians.
Since the user is responsible for choosing
the surface to which the unit is to be
anchored, we do not supply the fixing
devices for attaching the unit firmly to
the particular surface. The installer is
responsible for choosing fixing devices
suitable for the specific purpose on hand.
14

7.4.1 Wall, railing or ceiling fastening

The product can be installed on a wall, a railing or on
the ceiling.
Fasten the fastening support (01) to its final
installation surface.
Assemble the camera support (03) to the camera
using the four M5 screws and the washers supplied.
Fasten the rotation element (02) to the fastening
support (01) and to the camera support (03) using the
seven M5 screws and the washers supplied. Once the
final position of the product is defined, fully tighten
the M5 screws.
Pay attention to the fixing. Tightening
torque: 4.5Nm (±0.5Nm).

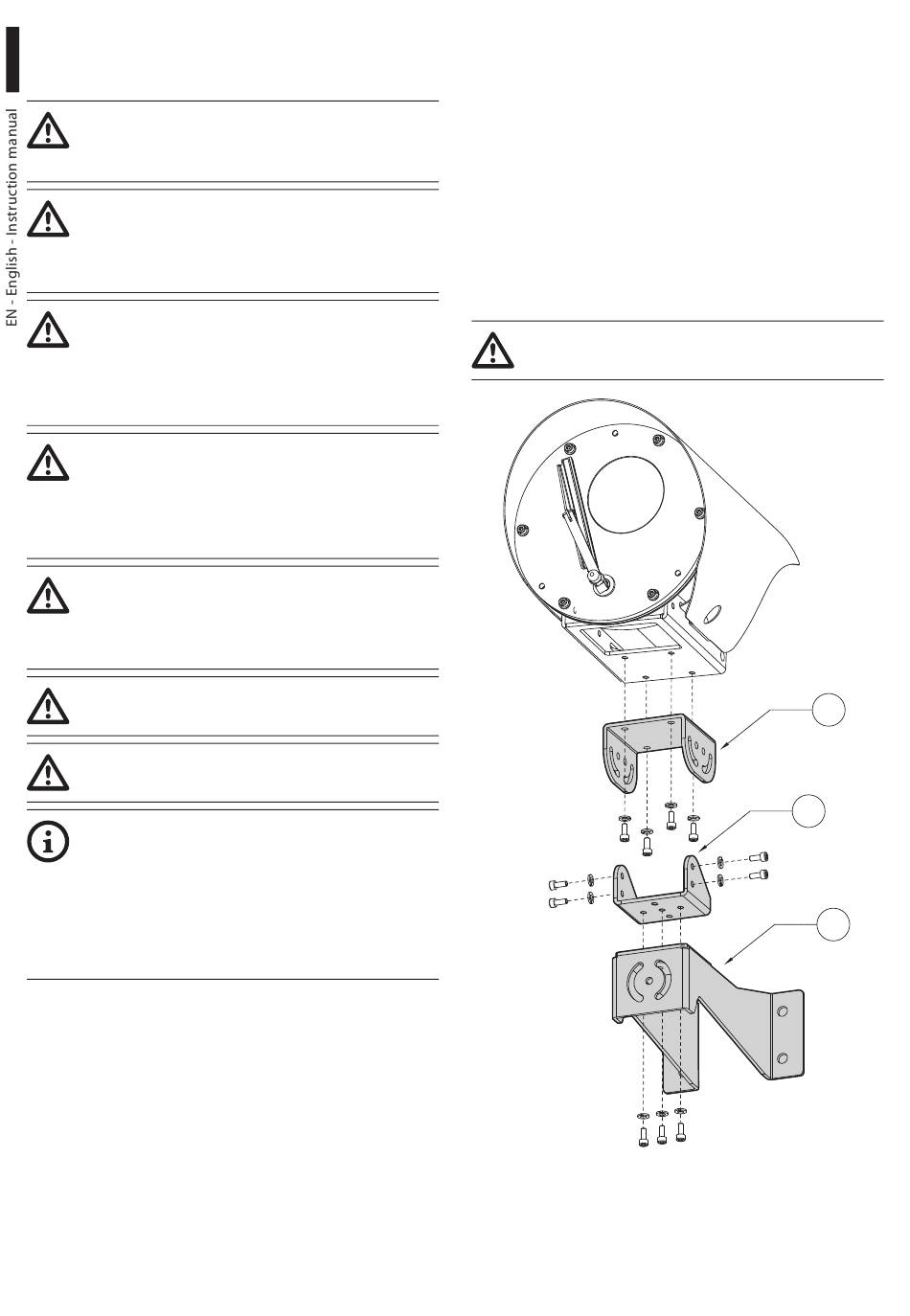

Fig. 8 Wall mounting.
03
02
01
