central vacuum cleaner
operation manual

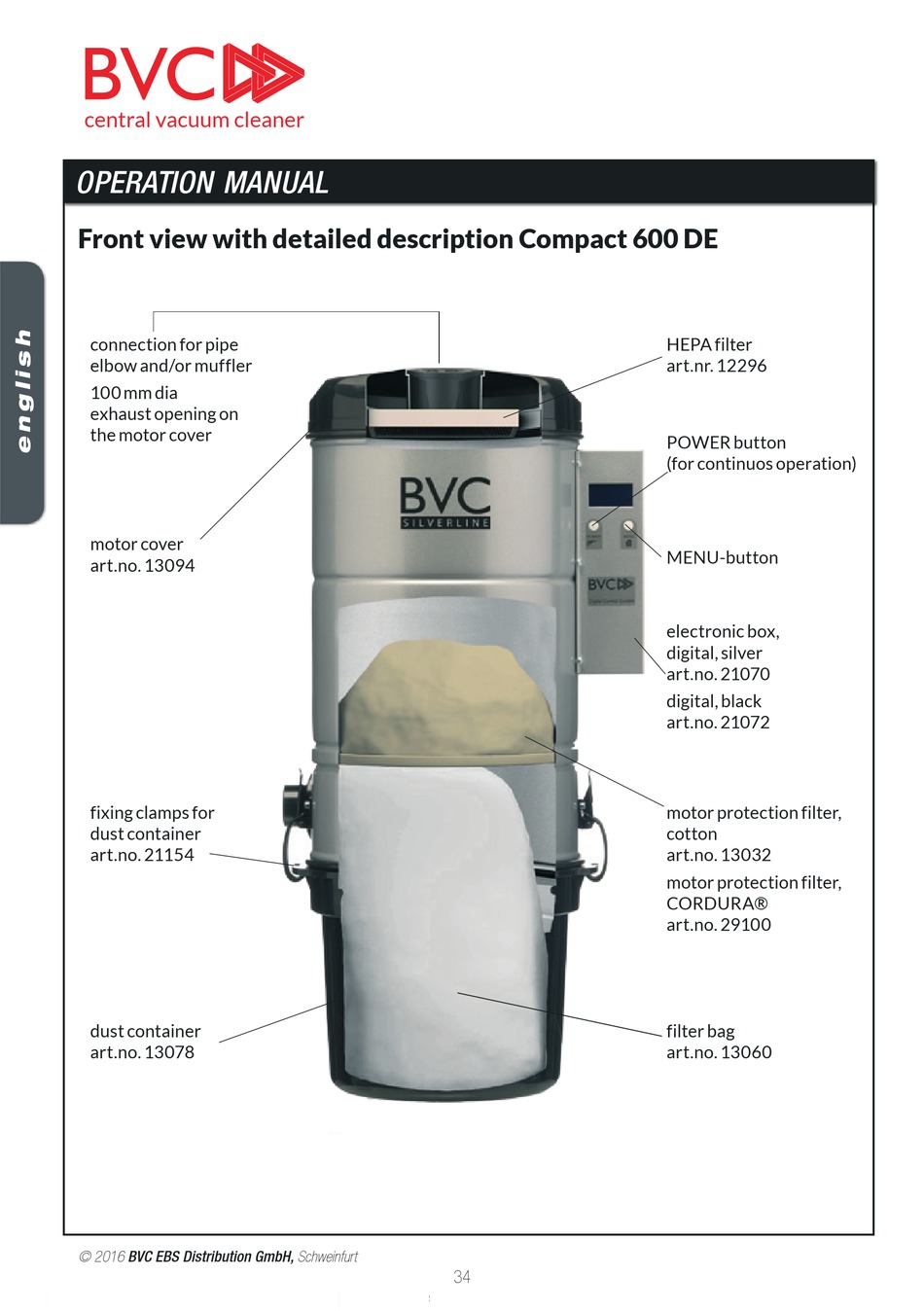

Front view with detailed description Compact 600 DE
connection for pipe
elbow and/or muffler
100 mm dia
exhaust opening on
the motor cover
motor cover
art.no. 13094
fixing clamps for
dust container
art.no. 21154
dust container
art.no. 13078
© 2016 BVC EBS Distribution GmbH, Schweinfurt
34
HEPA filter
art.nr. 12296
POWER button
(for continuos operation)
MENU-button
electronic box,
digital, silver
art.no. 21070
digital, black
art.no. 21072
motor protection filter,
cotton
art.no. 13032
motor protection filter,
CORDURA®
art.no. 29100
filter bag
art.no. 13060
