central vacuum cleaner
operation manual

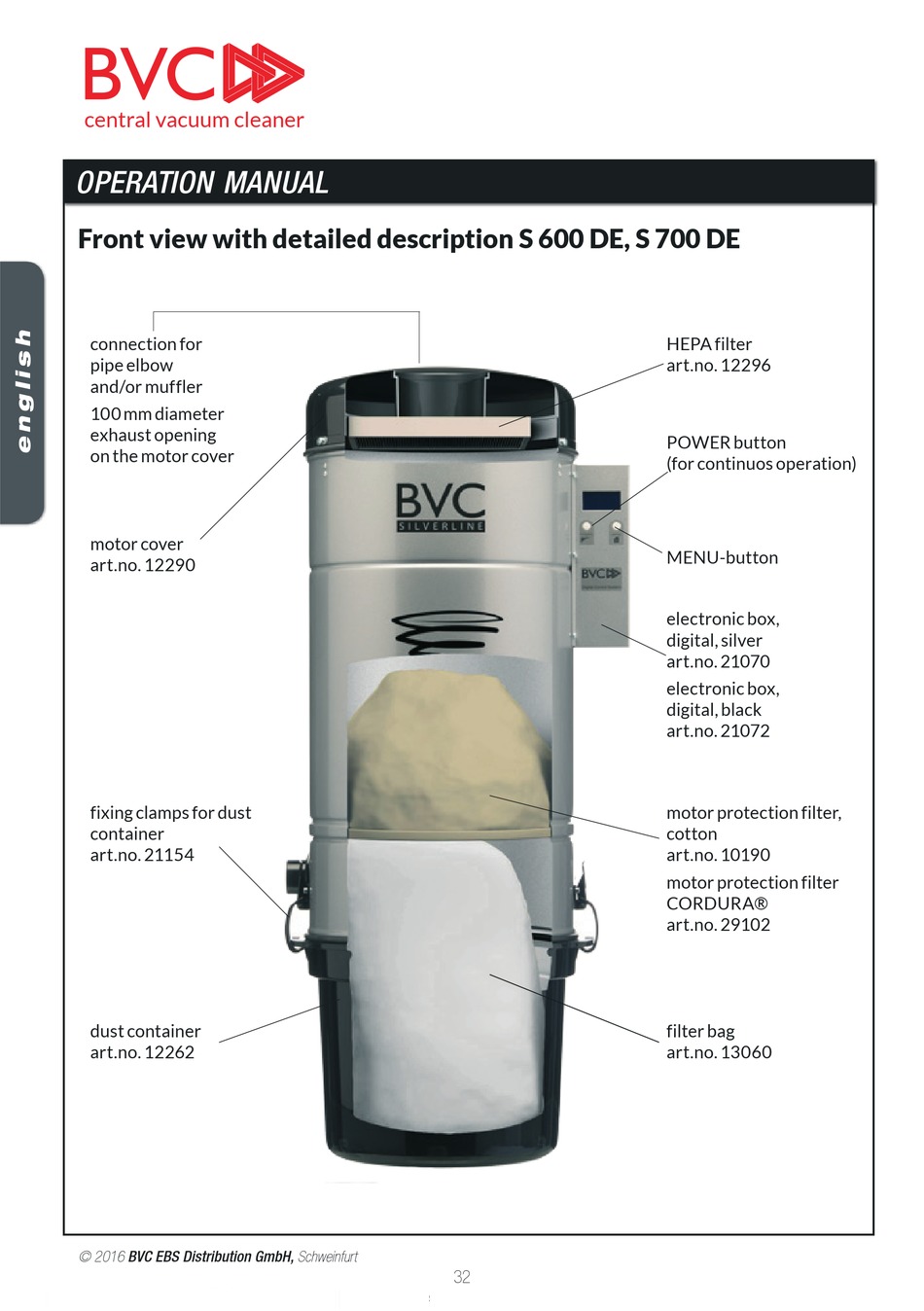

Front view with detailed description S 600 DE, S 700 DE
connection for
pipe elbow
and/or muffler
100 mm diameter
exhaust opening
on the motor cover
motor cover
art.no. 12290
fixing clamps for dust
container
art.no. 21154
dust container
art.no. 12262
© 2016 BVC EBS Distribution GmbH, Schweinfurt
32
HEPA filter
art.no. 12296
POWER button
(for continuos operation)
MENU-button
electronic box,
digital, silver
art.no. 21070
electronic box,
digital, black
art.no. 21072
motor protection filter,
cotton
art.no. 10190
motor protection filter
CORDURA®
art.no. 29102
filter bag
art.no. 13060
