NOTE: Registering and erasing the application mode
can be performed even if the quick mode-switching
button is disabled. After registering or erasing the
application mode, the quick mode-switching button
will be activated.

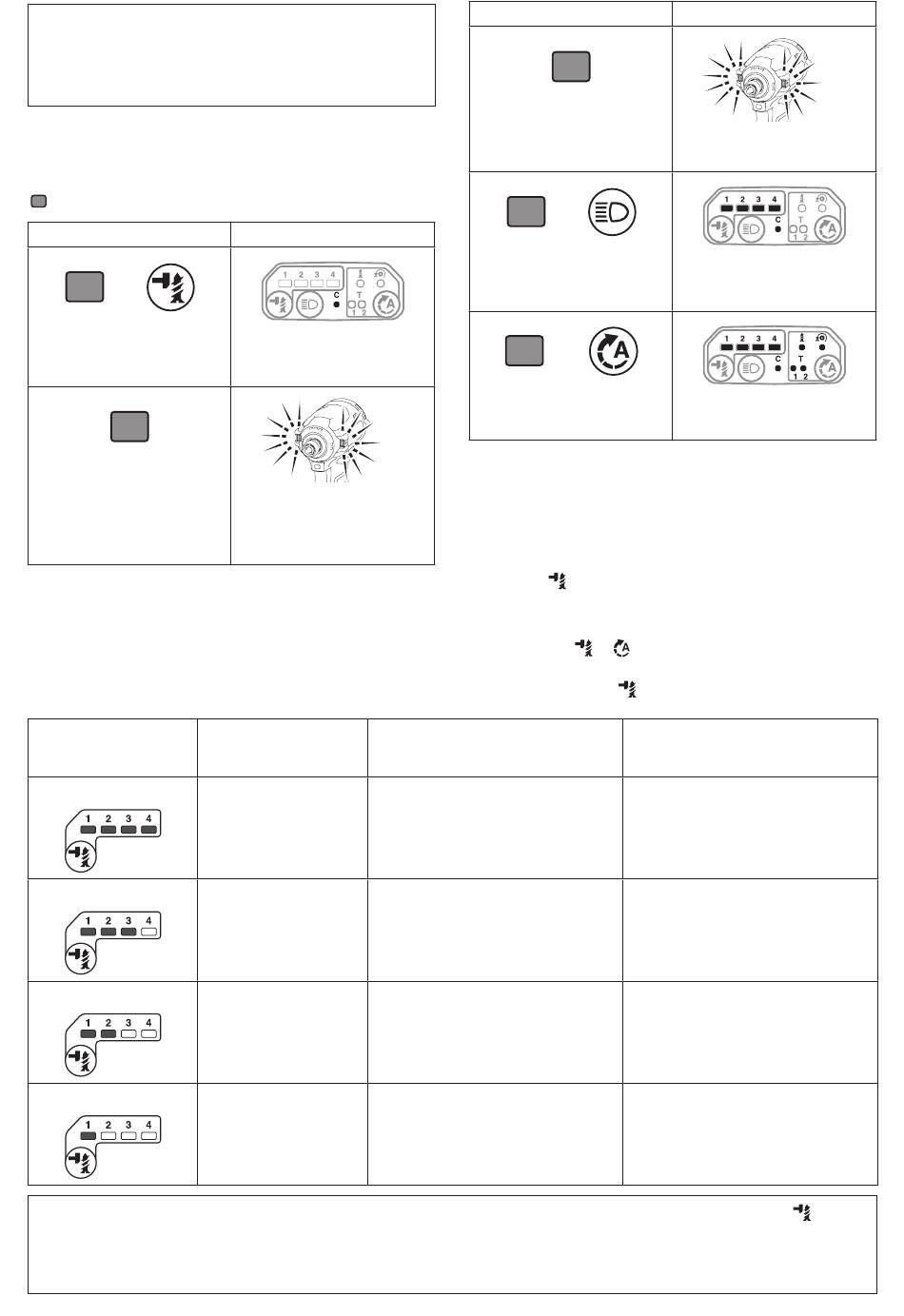

Quick reference

The following table shows the functions of the quick
mode-switching button.
indicates the quick mode-switching button.
Button(s) / Purpose
+
Registering the application
mode
(When quick mode-switch-
ing function is OFF)
Changing the impact force
by the quick mode-switch-
ing button
Application mode
(Impact force grade
displayed on panel)
Max
Hard
Medium
Soft
NOTE: When none of the lamp on the panel is lit, pull the switch trigger once before pressing the button
quick mode-switching button.
NOTE: All lamps on the switch panel go out when the tool is turned off to save the battery power. The impact force
grade can be checked by pulling the switch trigger to the extent that the tool does not operate.
How to confirm
The customize lamp and the
lamp of desired application
mode blinks.
The lamps on the tool flash
once.
Maximum blows
-1
3,800 min (/min) Tightening with the maximum force
and speed.
-1
3,600 min (/min) Tightening with less force and speed
than Max mode (easier to control than
Max mode).
-1
2,600 min (/min) Tightening when a good finishing is
needed.
-1
1,100 min (/min) Tightening with less force to avoid
screw thread breakage.
Button(s) / Purpose
(When quick mode-switch-
ing function is ON)
Switching to the registered
application mode
+
Erasing the registered
application mode
+
Disabling/resuming the
quick mode-switching
button
Changing the impact force
You can change the impact force in four steps: max,
hard, medium, and soft.
This allows a tightening suitable to the work.
The level of impact force changes every time you press
the button or the quick mode-switching button.
You can change the impact force within approximately
one minute after releasing the switch trigger or press-
ing the button ,
button.
► Fig.9: 1. Button
Purpose
9 ENGLISH
How to confirm
The lamps on the tool flash
once.
The customize lamp and all
impact force grade lamps
blink.
All lamps on the panel blink.
, or the quick mode-switching
Example of application
Driving screws to underwork materi-
als, tightening long screws or bolts.
Driving screws to underwork materi-
als, tightening bolts.
Driving screws to finishing boards or
plaster boards.
Tightening sash screws or small
screws such as M6.
or the
