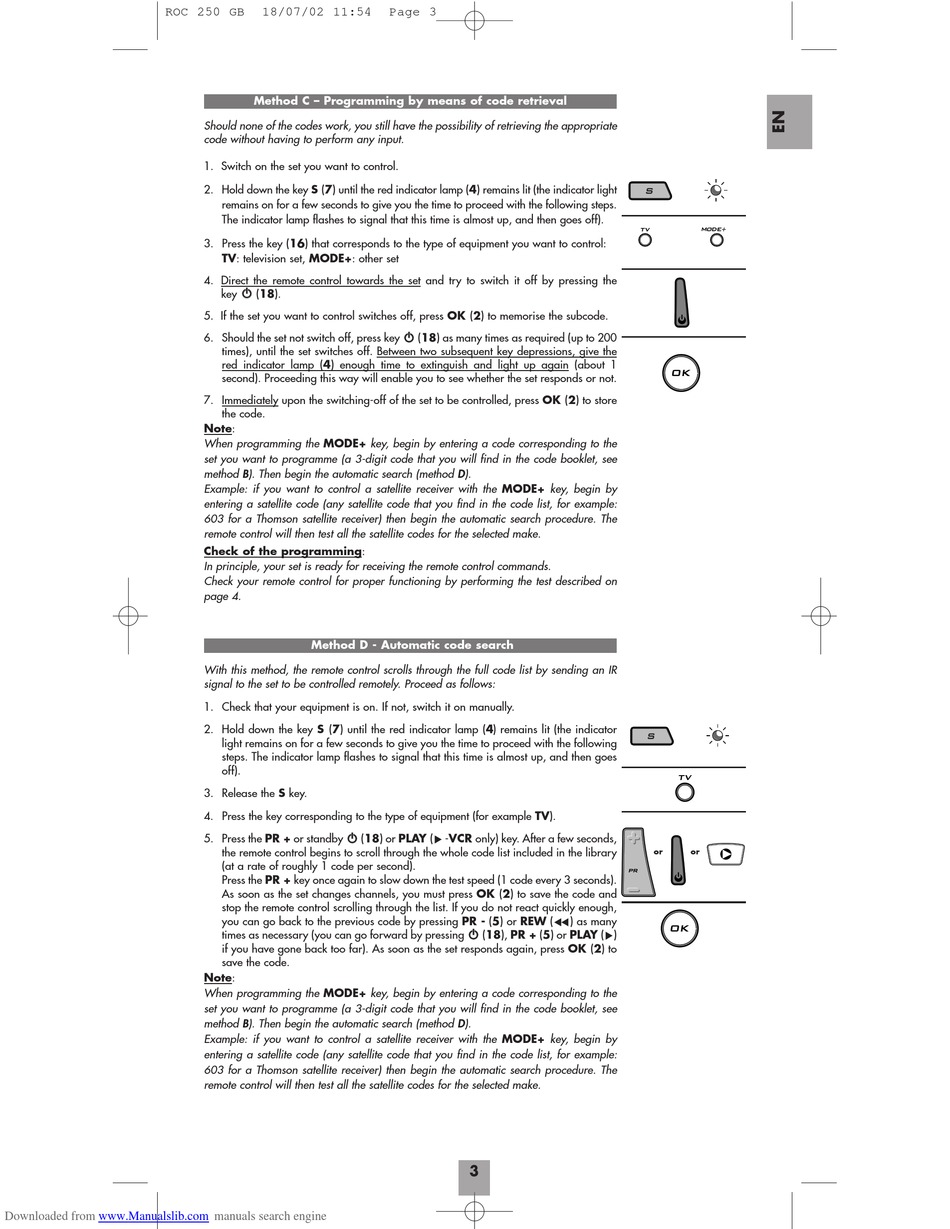

Method C – Programming by means of code retrieval
Should none of the codes work, you still have the possibility of retrieving the appropriate
code without having to perform any input.
1. Switch on the set you want to control.
2. Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator light
remains on for a few seconds to give you the time to proceed with the following steps.
The indicator lamp flashes to signal that this time is almost up, and then goes off).
3. Press the key (16) that corresponds to the type of equipment you want to control:
TV: television set, MODE+: other set
4. Direct the remote control towards the set and try to switch it off by pressing the
key B B (18).
5. If the set you want to control switches off, press OK (2) to memorise the subcode.
6. Should the set not switch off, press key B
times), until the set switches off. Between two subsequent key depressions, give the
red indicator lamp (4) enough time to extinguish and light up again (about 1
second). Proceeding this way will enable you to see whether the set responds or not.
7. Immediately upon the switching-off of the set to be controlled, press OK (2) to store
the code.
Note:
When programming the MODE+ key, begin by entering a code corresponding to the
set you want to programme (a 3-digit code that you will find in the code booklet, see
method B). Then begin the automatic search (method D).
Example: if you want to control a satellite receiver with the MODE+ key, begin by
entering a satellite code (any satellite code that you find in the code list, for example:
603 for a Thomson satellite receiver) then begin the automatic search procedure. The
remote control will then test all the satellite codes for the selected make.
Check of the programming:
In principle, your set is ready for receiving the remote control commands.
Check your remote control for proper functioning by performing the test described on
page 4.
Method D - Automatic code search
With this method, the remote control scrolls through the full code list by sending an IR
signal to the set to be controlled remotely. Proceed as follows:
1. Check that your equipment is on. If not, switch it on manually.
2. Hold down the key S (7) until the red indicator lamp (4) remains lit (the indicator
light remains on for a few seconds to give you the time to proceed with the following
steps. The indicator lamp flashes to signal that this time is almost up, and then goes
off).
3. Release the S key.
4. Press the key corresponding to the type of equipment (for example TV).
5. Press the PR + or standby B B (18) or PLAY (B -VCR only) key. After a few seconds,
the remote control begins to scroll through the whole code list included in the library
(at a rate of roughly 1 code per second).
Press the PR + key once again to slow down the test speed (1 code every 3 seconds).
As soon as the set changes channels, you must press OK (2) to save the code and
stop the remote control scrolling through the list. If you do not react quickly enough,
you can go back to the previous code by pressing PR - (5) or REW (G) as many
times as necessary (you can go forward by pressing B
if you have gone back too far). As soon as the set responds again, press OK (2) to
save the code.
Note:
When programming the MODE+ key, begin by entering a code corresponding to the
set you want to programme (a 3-digit code that you will find in the code booklet, see
method B). Then begin the automatic search (method D).
Example: if you want to control a satellite receiver with the MODE+ key, begin by
entering a satellite code (any satellite code that you find in the code list, for example:
603 for a Thomson satellite receiver) then begin the automatic search procedure. The
remote control will then test all the satellite codes for the selected make.
