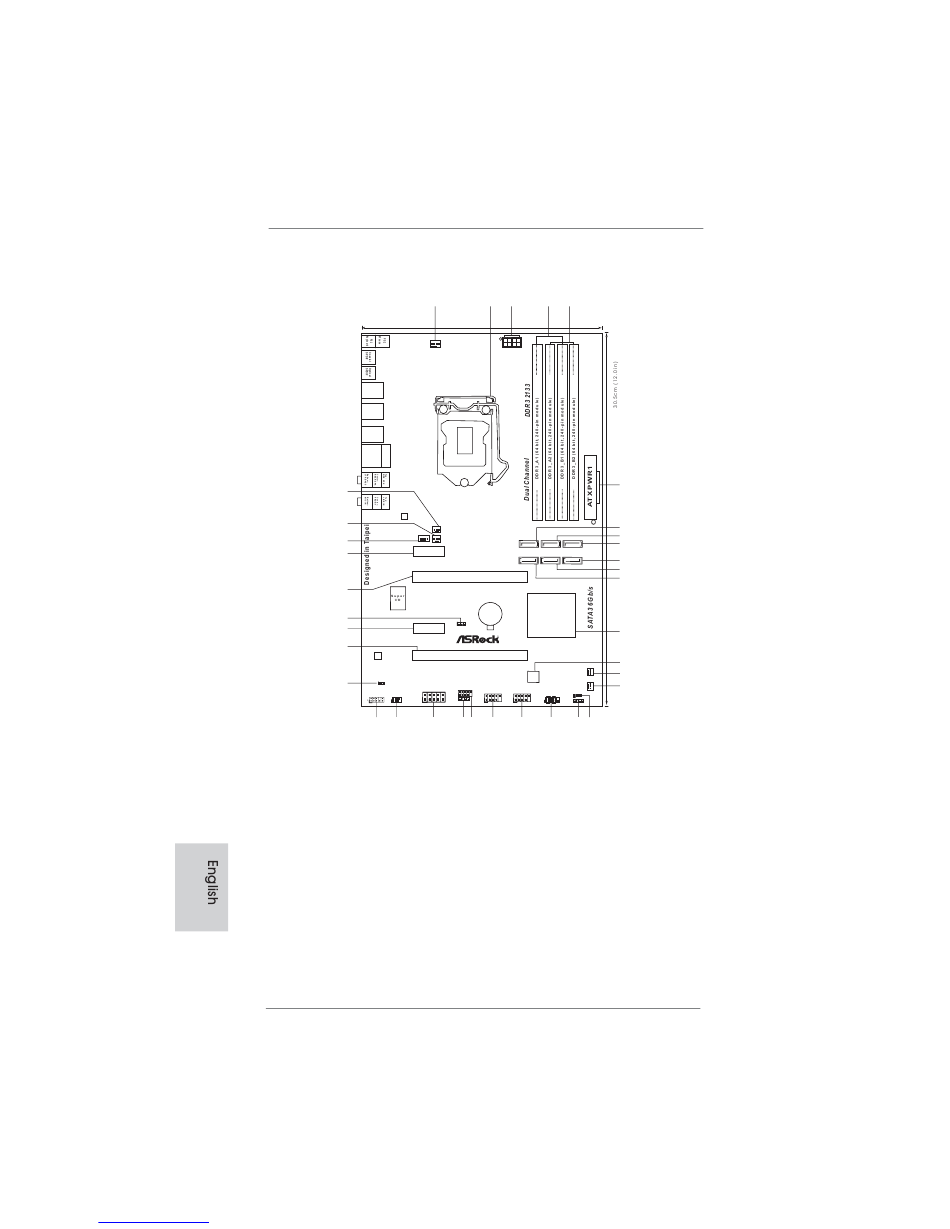

Motherboard Layout
USB 2.0
T: USB2
B: USB3
USB 2.0
T: USB4
B: USB5
USB 3.0
T: USB6
B: USB7
USB 2.0
T: USB0 Top:
RJ-45
B: USB1
35
34
USB 3.0
33
32
31
30
29
28
AUDIO
CODEC
27
1
HDMI_SPDIF1
HD_AUDIO1 IR1
1
25
26
1 CPU Fan Connector (CPU_FAN1)
2 1155-Pin CPU Socket
3 ATX 12V Power Connector (ATX12V1)
4 2 x 240-pin DDR3 DIMM Slots
(Dual Channel: DDR3_A1, DDR3_B1, Blue)
5 2 x 240-pin DDR3 DIMM Slots
(Dual Channel: DDR3_A2, DDR3_B2, White)
6 ATX Power Connector (ATXPWR1)
7 SATA2 Connector (SATA2_4, Blue)
8 SATA2 Connector (SATA2_2, Blue)
9 SATA3 Connector (SATA3_0, White)
10 SATA3 Connector (SATA3_1, White)
11 SATA2 Connector (SATA2_3, Blue)
12 SATA2 Connector (SATA2_5, Blue)
13 Intel P67 Chipset
14 64Mb SPI Flash
15 Chassis Fan Connector (CHA_FAN3)
16 Chassis Fan Connector (CHA_FAN2)
17 Power LED Header (PLED1)
18 Chassis Speaker Header (SPEAKER 1, White)
2
ASRock P67 Pro3 SE Motherboard
manuals search engine
1 2 3 4 5
19.1cm (7.5 in)
CPU_FAN1
ATX12V1
LAN
PHY
CPU_FAN2
SATA2_4 SATA2_2 SATA3_0
CHA_FAN1 PWR_FAN1
PCIE1
PCI Express 2.0
SATA2_5 SATA2_3 SATA3_1
PCIE2
P67 Pro3 SE
Intel
CMOS
Battery
P67
1
PCIE3 CLRCMOS1
PCIE4
ErP/EuP Ready
RoHS
64Mb
BIOS
USB8_9
COM1
USB10_11 USB12_13
PANEL1 PLED1
PLED PWRBTN 1
1
SPEAKER1
1
1 1
1 1 1
CIR1
HDLED RESET
21 18
24 23 22 20 19
19 System Panel Header (PANEL1, White)
20 USB 2.0 Header (USB12_13, Blue)
21 USB 2.0 Header (USB10_11, Blue)
22 USB 2.0 Header (USB8_9, Blue)
23 Consumer Infrared Module Header (CIR1)
24 COM Port Header (COM1)
25 Infrared Module Header (IR1)
26 Front Panel Audio Header
(HD_AUDIO1, White)
27 HDMI_SPDIF Header
(HDMI_SPDIF1, White)
28 PCI Express 2.0 x16 Slot (PCIE4, Blue)
29 PCI Express 2.0 x1 Slot (PCIE3, White)
30 Clear CMOS Jumper (CLRCMOS1)
31 PCI Express 2.0 x16 Slot (PCIE2, Blue)
32 PCI Express 2.0 x1 Slot (PCIE1, White)
33 Chassis Fan Connector (CHA_FAN1)
34 Power Fan Connector (PWR_FAN1)
35 CPU Fan Connector (CPU_FAN2)
6
7
8
9
10
11
12
13
14
15
CHA_FAN3
16
CHA_FAN2
17
