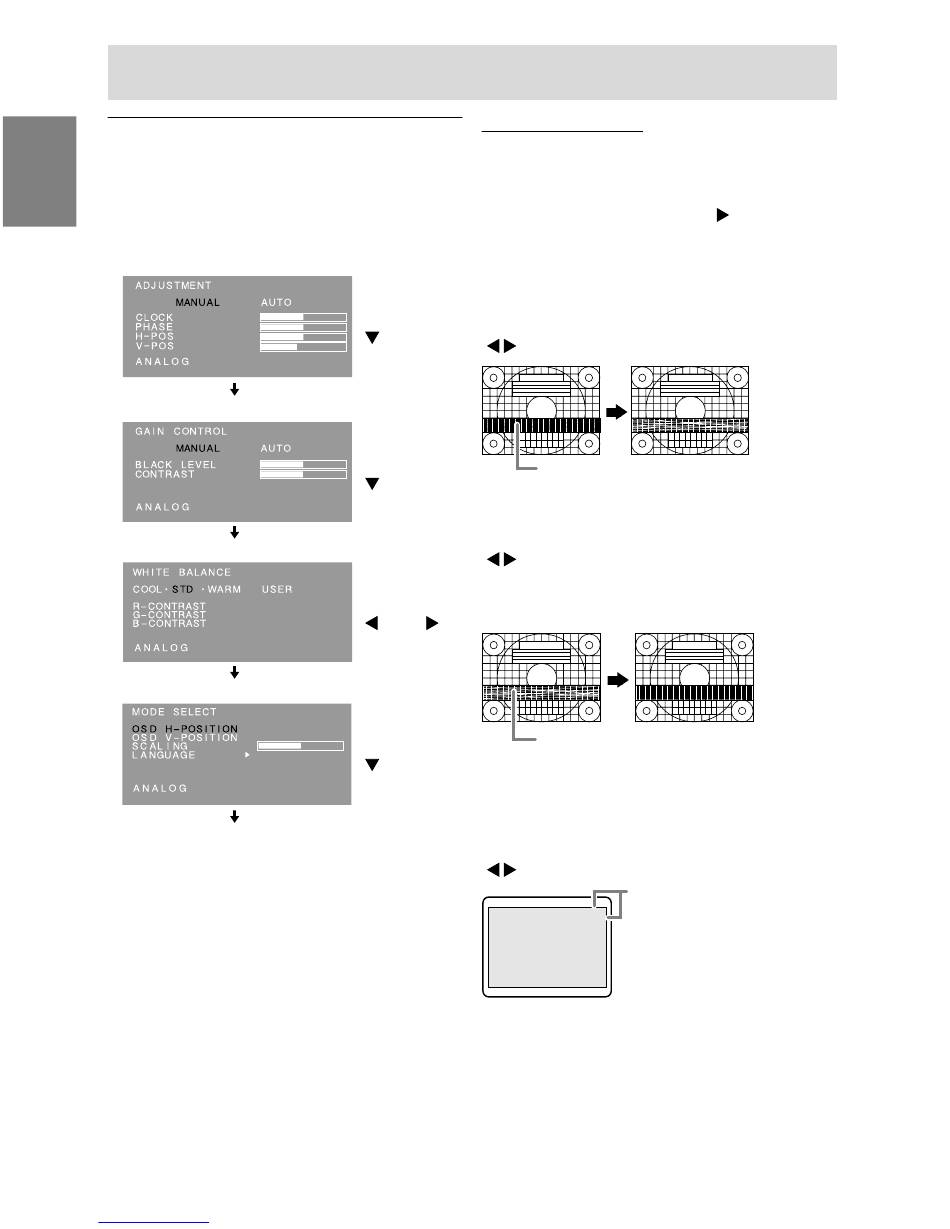

Manual screen adjustment

1. Display an image that makes the entire screen
light. (p.17)
2. Display the OSD Menu by pressing the MENU
button.
ADJUSTMENT Menu
1 0 2 4 x 7 6 8
GAIN CONTROL Menu
1 0 2 4 x 7 6 8
WHITE BALANCE Menu
1 0 2 4 x 7 6 8
MODE SELECT Menu
1 0 2 4 x 7 6 8
The OSD Menu closes.
Notes:
- When the monitor is used with a digital
connection, ADJUSTMENT and GAIN
CONTROL Menu adjustments are not necessary.
- The OSD Menu automatically disappears
approximately 30 seconds after the last command.
- This chapter provides the procedure how to
adjust the screen by using Adjustment Pattern
(for Windows).
Downloaded from www.Manualslib.com
Adjusting the screen display
Select the
option by
1 2 8 pressing the
1 6
button.
1 2 8
2 7
V : 6 0 H z H : 4 8 . 3 k H z
MENU
Select the
option by
pressing the
6 4
6 4
button.
V : 6 0 H z H : 4 8 . 3 k H z
MENU
Select the
option by
pressing the
or the
button.
V : 6 0 H z H : 4 8 . 3 k H z
MENU
Select the
option by
pressing the
3
button.
V : 6 0 H z H : 4 8 . 3 k H z
MENU
manuals search engine
ADJUSTMENT Menu
When the monitor is used with a digital connection,
this menu adjustment is not necessary.
AUTO
When [AUTO] is selected with the
[CLOCK], [PHASE], [H-POS] and [V-POS] settings
are automatically adjusted.
CLOCK
The figure below demonstrates how to adjust so
that vertical flicker noise is not emitted.
( buttons)
Vertical flicker noise
PHASE
The figure below demonstrates how to adjust so
that horizontal flicker noise is not emitted.
( buttons)
Note:
- Adjustments to [PHASE] should be made only
after [CLOCK] has been correctly set.
Horizontal flicker noise
H-POS (horizontal positioning) and V-POS
(vertical positioning)
To center the Adjustment Pattern within the
boundaries of the screen, adjust the left-right (H-
POS) values and the up-down (V-POS) values.
( buttons)
Screen frame
Adjustment
Pattern
18
button, the
