Connecting the monitor and turning the monitor on and off

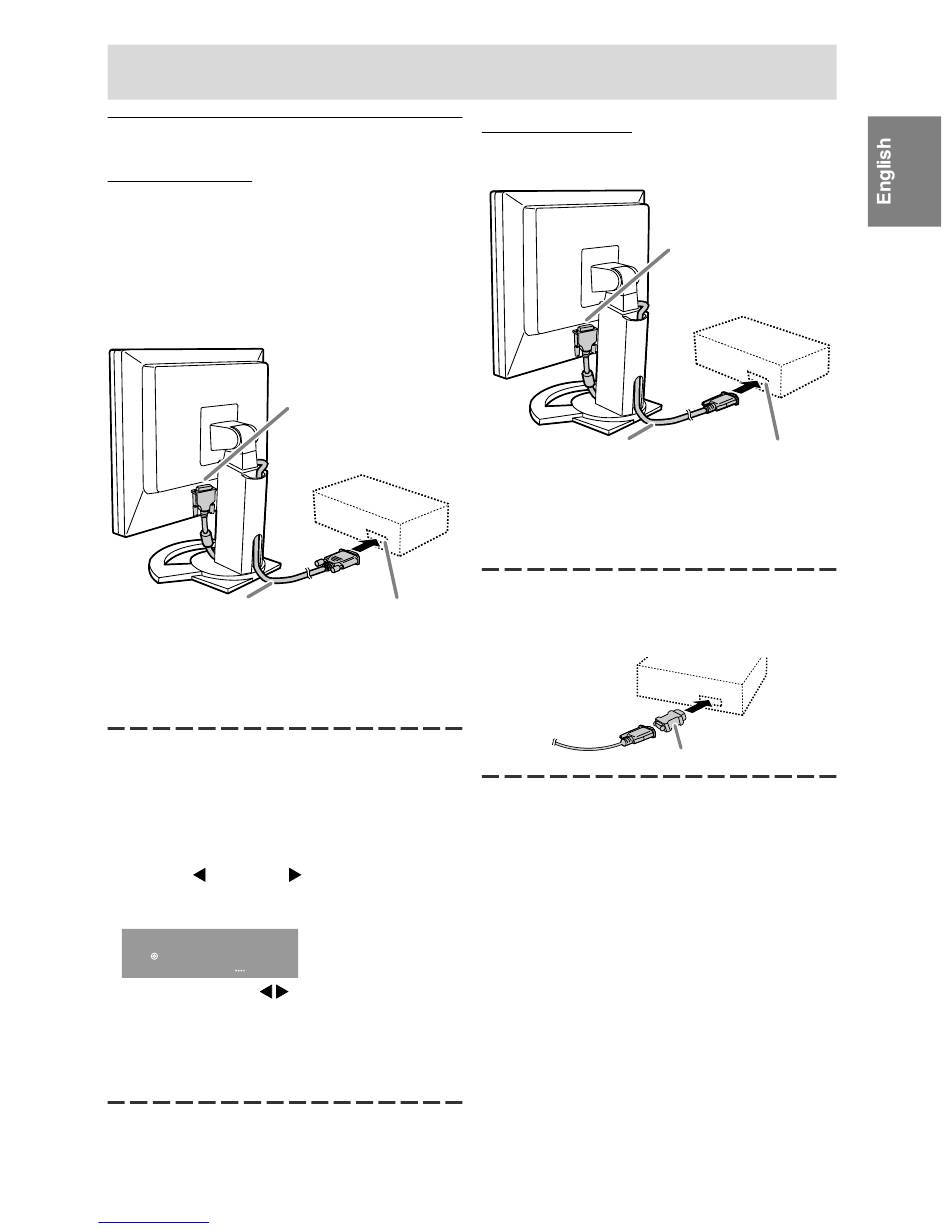

Connecting the monitor to a computer

Digital connection
Connect the supplied digital signal cable to the
digital RGB output terminal of the computer.
- The monitor has an input for connecting to a
computer with a DVI-compatible output
connector (DVI-D 24 pin or DVI-I 29 pin) and
XGA output capability. (Depending on the type of
computer to be connected, the display may not
work correctly.)
Digital signal cable
- Paying attention to connector direction, firmly
insert the signal cable vertically into the
connector, and then tighten the screws at both
sides.
Set the monitor as follows when establishing a
digital connection with a Power Mac using an ADC-
DVI adapter made by Belkin. (Operation has been
checked with the Power Mac G4 M7627J/A.)
- Perform settings with the Power Mac power
supply off.
1. Connect the AC adapter and the power cord.
2. Press the
and while doing this press the power button (i.e.
turn the power on).
MAC DIGITAL
OFF
3. Set to [ON] with the
- Do not set to [ON] if you are not using a Belkin
ADC-DVI adapter, as this may result in
incorrect display.
4. Press the MENU button.
This completes setting.
Downloaded from www.Manualslib.com
DVI-I input terminal
Digital RGB output terminal
button and button simultaneously,
ON
OK [MENU]
buttons.
manuals search engine
Analog connection
Connect the supplied analog signal cable to the
analog RGB output terminal of the computer.
Analog signal cable
Analog RGB output terminal
- Paying attention to connector direction, firmly
insert the signal cable vertically into the
connector, and then tighten the screws at both
sides.
If connecting to a D-sub 15 pin 2 row Apple Power
Macintosh, attach a Macintosh conversion adapter
(commercially available) to the analog signal
cable.
Macintosh conversion adapter
13
DVI-I input terminal
