Albrecht AE 6690 Kurzanleitung

Note: These instructions are for authorized distributors and service specialists only.
Installers and users are responsible to apply only allowed settings. In EU and R&TTE
countries it is not allowed to use other settings than the allowed settings.
1. Select factory default settings
This is the start setting when radio is powered for the first time or the setting which shall
be used when the country switching shall be disabled. The factory default setting for
sales to Germany is dE. The setting can be modified to all of the following country
settings depending on the country where the radio shall be sold and used:

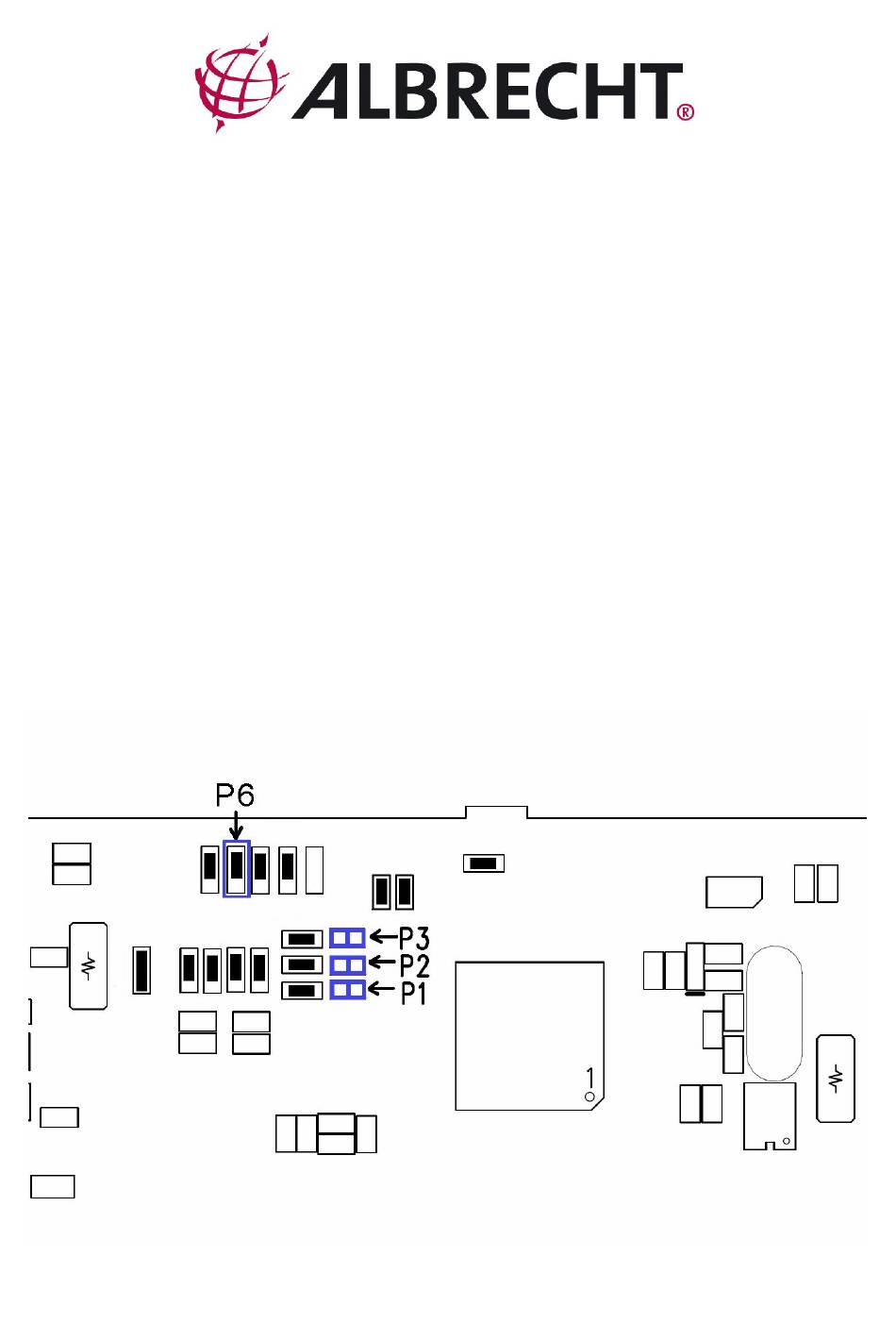

Jumpers responsible for start setting: P1, P2, P3
U UK setting 40 FM
E Spain setting 40/AM/FM, 4W AM: P1 : Open
dE Germany :
EU Europe AM/FM, 40 Ch
EC CEPT 40 FM
Po Poland Area :
AE 6690 Multi-Standard Options
: P1 : Short
P1 : Short
P1 : Open
P1 : Open . P2 : Short
P1 : Short
P2: Open P3: Open
P2: Short P3: Open
P2: Short P3: Open
P2 : Open P3 : Short
P3 : Short
P2 : Short P3 : Short
