6.3 Count up / count down modes

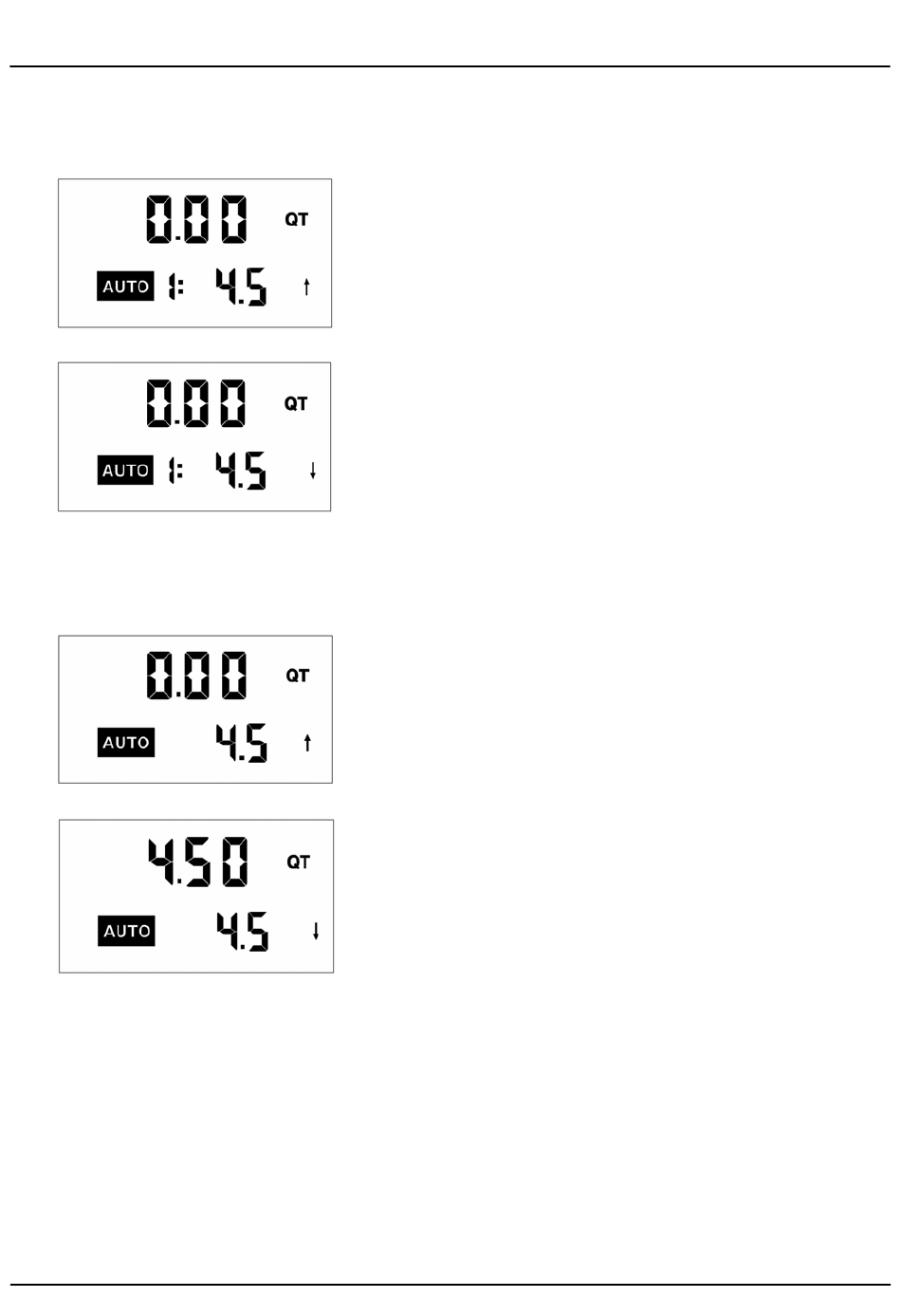

When in the auto batch programming mode, press the RESET button and the count up/count down arrows flash in the
1.
display.
Count up arrow
Count down arrow
Press the AUTO button to lock in the batch quantity when batch size is selected. The screen flashes and the batch
2.
number icon no longer displays.
Count up mode
Count down mode
May 2019
• Press the TOTAL button to toggle between count up/count
down.
•
Press the RESET button to select count up or count down.
NOTE: In the count up option the meter counts up to the preprogramed
batch amount. In the count down option the meter counts from the
programmed batch amount down to zero. Batch number 3 is always in
the count down mode.
•
If the meter is in count up mode, the display shows zeros.
• If the meter is in the count down mode, the desired batch size
appears on the screen.
