Meter operation
Auto batch program mode, option 3
NOTE: See Count Up/Down Mode specifications under 6.3.
3. After the batch size is selected, press the AUTO button to lock in the batch and dispense fluid.
Auto icon
4. Pull the trigger to begin the flow. The solenoid valve in the meter automatically locks the dispensing valve in the full open
position.
5. Release the trigger, allowing it to fall back.
6. The flow automatically shuts off after the batch quantity has dispensed.
7. After the batch quantity has been dispensed the meter is a free flow-dispensing handle until the reset button is
depressed.
NOTE: In case of an emergency or to interrupt a batch, the meter is equipped with an emergency override
override under 7.2)
8. The user has the option to top off the fluid at the end of a batch.
•
To top off the fluid, pull the trigger to begin the flow and release it when the desired amount has been pumped.
Press the RESET button when finished. The display resets and the meter is now ready to dispense the next batch.
9.
Page 34
NOTE: When programming option 3:
•
•
•
THE METER ALWAYS LOCKS IN THE MAXIMUM OPEN POSITION.
LM_OGP2Adv_BA_99_0045
Press the 10 button to increase a batch amount in increments of
100 units.
Press the 1 button to increase a batch amount in increments of 10
units.
Press the 0.1 button to increase a batch amount in increments of
1 unit.

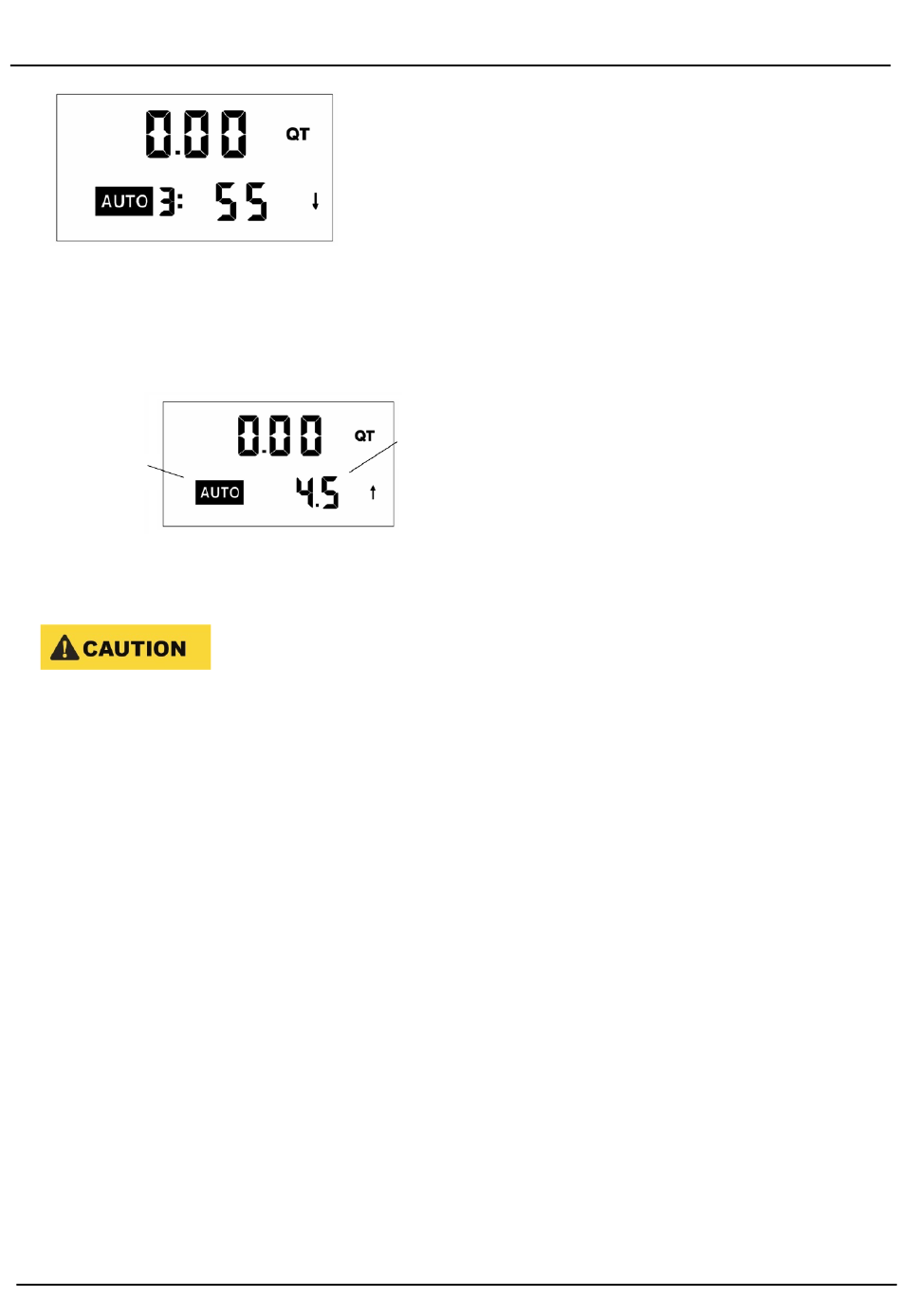

Auto batch size
(see emergency
May 2019
